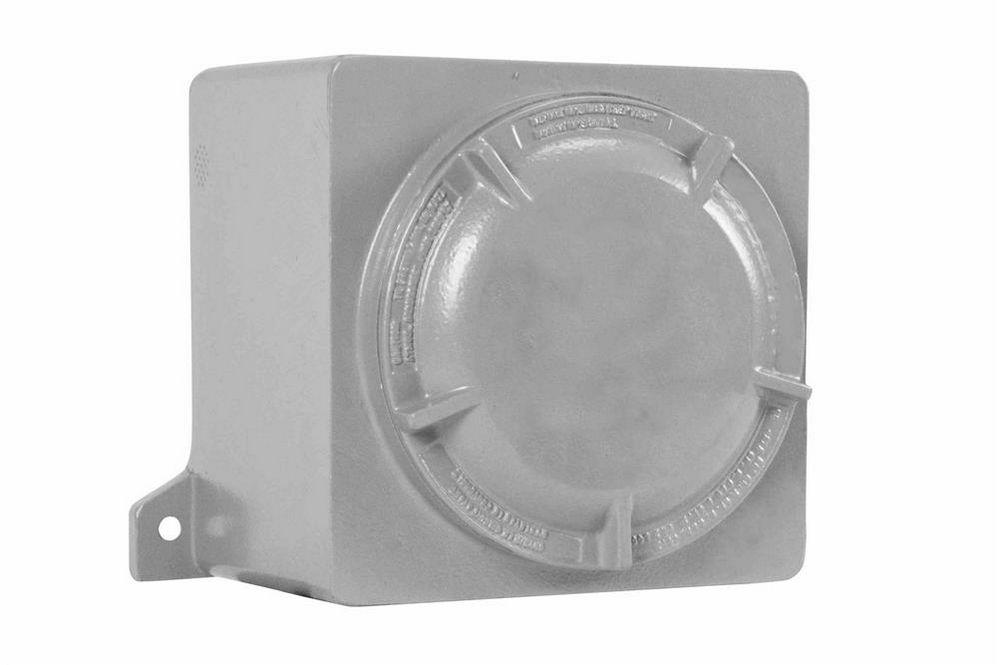

35A Explosion Proof Contactor - C1D1, C2D1 - 3P - (2) 3/4" NPT Hubs, North/South - ATEX/IECEX Rated


Sale price$4,741.99


Specifications / Additional Information
EXP-CTR-3P-35A-240V-2X0.75NS Explosion Proof Contactor Ratings/Approvals
Device Type: Explosion Proof Contactor Listed for United States, Canada, Europe, Asia
External Dimensions: 9.13" x 9.63" x 7.18" Class I, Div. 1 & 2, Groups B, C, D
Weight: - Class I, Zones 1 & 2, Groups IIB+H2, IIA
Voltage: 240V AC 50/60 Hz Class II, Div. 1 & 2, Groups E, F, G
Amps: 35A Class III, Div. 1 & 2
Poles: 3 ATEX/IEC Ex
Configuration: NO or NC Ex d IIC T6 or T5
Material: Copper-free Aluminum Ex tD A21 IP66 T80°C or T90°C IP66
Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish Ta = -20°C to +60°C
Mount: Surface NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G)
Wiring: Contactors - Lugs
Hubs: (2) 3/4" NPT Hubs - (1) North, (1) South
Access Hole OD: 5.38"
  Toll Free: 1-800-369-6671
' Product Overview '
The EXP-CTR-3P-35A-240V-2X0.75NS from Larson Electronics is an Explosion Proof Contactor for secure connections to circuits and motors in ATEX-rated and combustible sites. This 35-amp device is compatible with 240V AC 50/60 Hz and features a choice of NO or NC configuration. Operators are provided access to two 3/4" NPT hubs at the north and south sides of the explosion proof, 3-pole unit. The EXP-CTR-3P-35A-240V-2X0.75NS faciliates electrical connections in flammable environments. This 35-amp, 3-pole unit operates on 240V AC 50/60 Hz. Equipped with an NO or NC configuration, the explosion proof contactor features lugs for secure connections. Two, 3/4" NPT hubs are available on the north and south sides (1 per side) of the ATEX rated device. Constructed of copper-free aluminum with an electrostatically applied powder epoxy/polyester finish, this explosion proof contactor is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Applications: Hazardous locations, HVAC systems, industrial motors, compressors, chemical processing, welding, heating equipment, manufacturing sites and more.
