|EXP-CTR-3P-45A-240V-2X0.75NS Explosion Proof Contactor||Ratings/Approvals|
|Device Type: Explosion Proof Contactor||NRTL Listed for United States, Canada, Europe, Asia|
|External Dimensions: 9.13" x 9.63" x 7.18"||Class I, Div. 1 & 2, Groups B, C, D|
|Weight: -||Class I, Zones 1 & 2, Groups IIB+H2, IIA|
|Voltage: 240 V AC, 50/60 Hz||Class II, Div. 1 & 2, Groups E, F, G|
|Amps: 45A||Class III, Div. 1 & 2|
|Poles: 3||ATEX/IEC Ex|
|Configuration: NO or NC||Ex d IIC T6 or T5|
|Material: Copper-free Aluminum||Ex tD A21 IP66 T80°C or T90°C IP66|
|Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish||Ta = -20°C to +60°C|
|Mount: Surface||NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G)|
|Wiring: Contactors - Lugs|
|Hubs: (2) 3/4" NPT Hubs - (1) North, (1) South||Special Orders - Requirements|
|Access Hole OD: 5.38"|
|Toll Free: 1-800-369-6671|

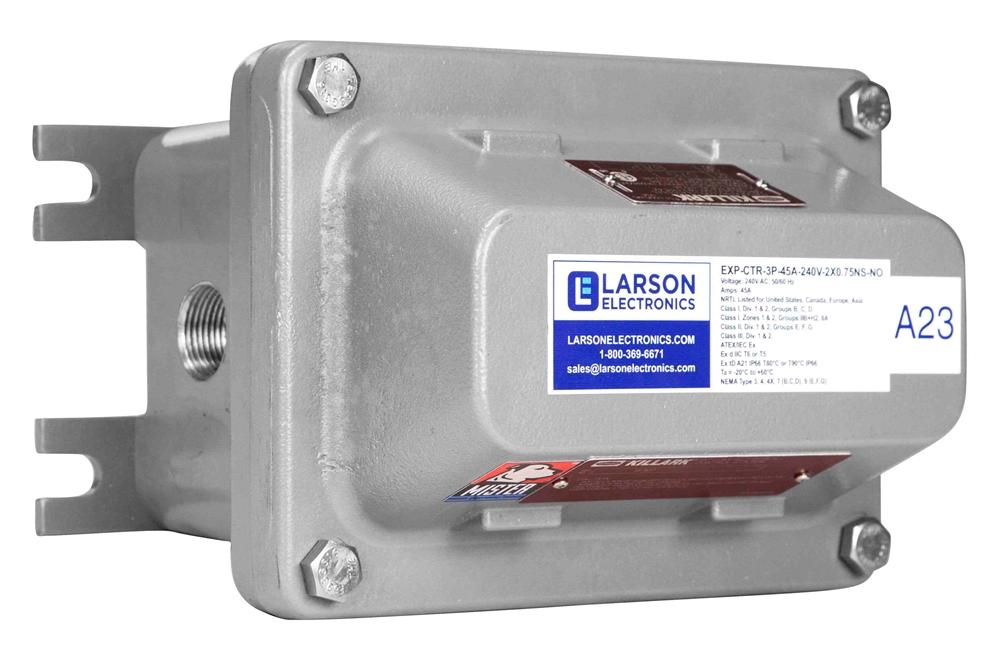

|The EXP-CTR-3P-45A-240V-2X0.75NS from Larson Electronics is an Explosion Proof Contactor for secure connections to circuits and motors in ATEX-rated and combustible sites. This 45-amp device is compatible with 240 V AC, 50/60 Hz and features a choice of NO or NC configuration. Operators are provided access to two 3/4" NPT hubs at the north and south sides of the explosion proof, 3-pole unit. The EXP-CTR-3P-45A-240V-2X0.75NS faciliates electrical connections in flammable environments. This 45-amp, 3-pole unit operates on 240 V AC, 50/60 Hz. Equipped with an NO or NC configuration, the explosion proof contactor features lugs for secure connections. Two, 3/4" NPT hubs are available on the north and south sides (1 per side) of the ATEX rated device. Constructed of copper-free aluminum with an electrostatically applied powder epoxy/polyester finish, this explosion proof contactor is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Applications: Hazardous locations, HVAC systems, industrial motors, compressors, chemical processing, welding, heating equipment, manufacturing sites and more.|
