|EXP-DNMS-N4X-AT-HV Explosion Proof Adjustable Combination Sensor||Ratings|
|Listing: NRTL Listed for United States, Canada and International||Listed for United States & Canada|
|Dimensions: 7"-W x 5"-H x 9"-D||Class I, Divisions 1 & 2, Groups B, C, D|
|Weight: -||Class I, Zones 1 & 2, Groups IIB+H2, IIA|
|Detection: Day/Night, Motion or Combination of Day/Night + Motion||Class II, Divisions 1 & 2, Groups E, F, G|
|Detection Coverage: 15` x 15` (Mounted @ 16`)||Class III, Divisions 1 & 2|
|Tilt Angles: -90° to +30° - Elevation||NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)|
|Reach: 6.5` to 32` - Adjustable||NRTL Listed to UL 508A|
|System Voltage: 120V, 208V, 220V, or 277V AC||NRTL Listed to UL 1203|
|Maximum Wattage: 400W||NRTL Listed to CSA C22.2 No 14, 25, 30|
|Output Hold Time: 0.5 Secs to 15 Mins (Adjustable)|
|Mains Frequency: 50/60 Hz|
|Ambient Temperature Range: -22°F to +140°F|
|Radiated Frequency: 5.8 GHz|
|Operation: Normally Opened or Normally Closed|
|Materials: Copper-free Aluminum, Glass|
|Mount: Wall Bracket|
|Wiring: Flying Leads|
|Hub Size: 1/2" or 3/4" NPT|

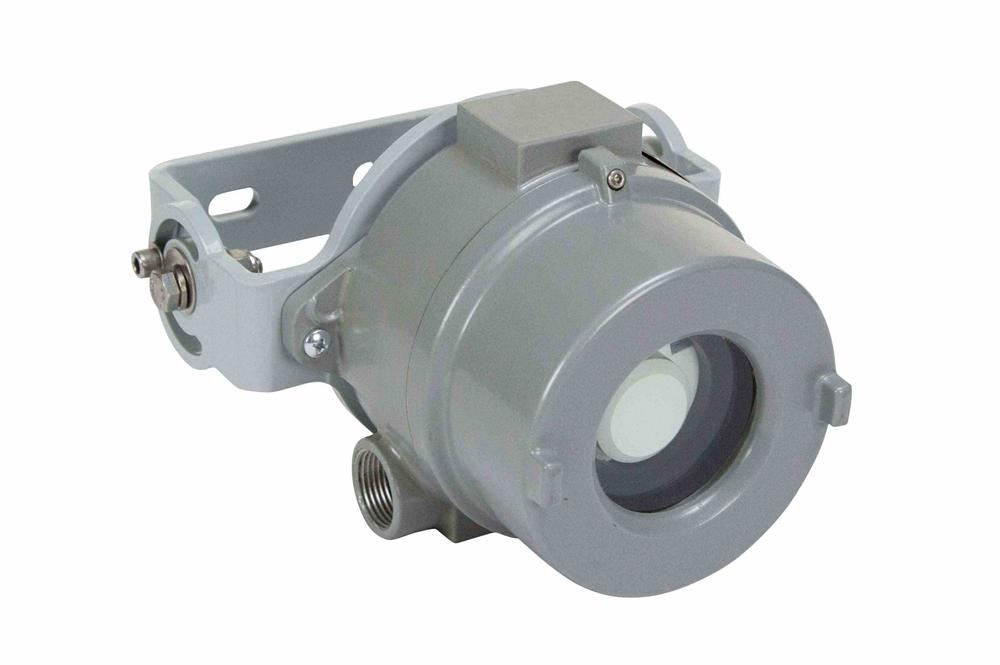

The Larson Electronics EXP-DNMS-N4X-AT-HV Explosion Proof Combination Day/Night Motion Sensor is approved for Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 rated locations. This non-sparking combination sensor features the following settings: day/night, motion detection and a combination of both types. The EXP-DNMS-N4X-AT-HV can handle a maximum load of 400 watts.
This explosion proof combination day/night + motion sensor is ideal for operators seeking a high quality explosion proof sensor rated for use in hazardous areas. Settings for dusk to dawn sensing, motion and a combination of both are available on the device. The 400-watt unit is constructed of copper free non-sparking aluminum with a glass window.
This unit leverages cutting-edge microwave sensors to detect motion. When in use, the device sends out discreet waves that are reflected back from nearby walls and objects (not heat or light). Microwave sensors are not affected by line of sight, resulting in wider and more accurate coverage of the target area. By comparison, traditional infrared sensors can only detect heat and light (factors used to identify movement) within the unit€™s field of view. Microwave sensors also provide stable performance in unpredictable climates and can penetrate glass, plastic and other non-metallic objects.
