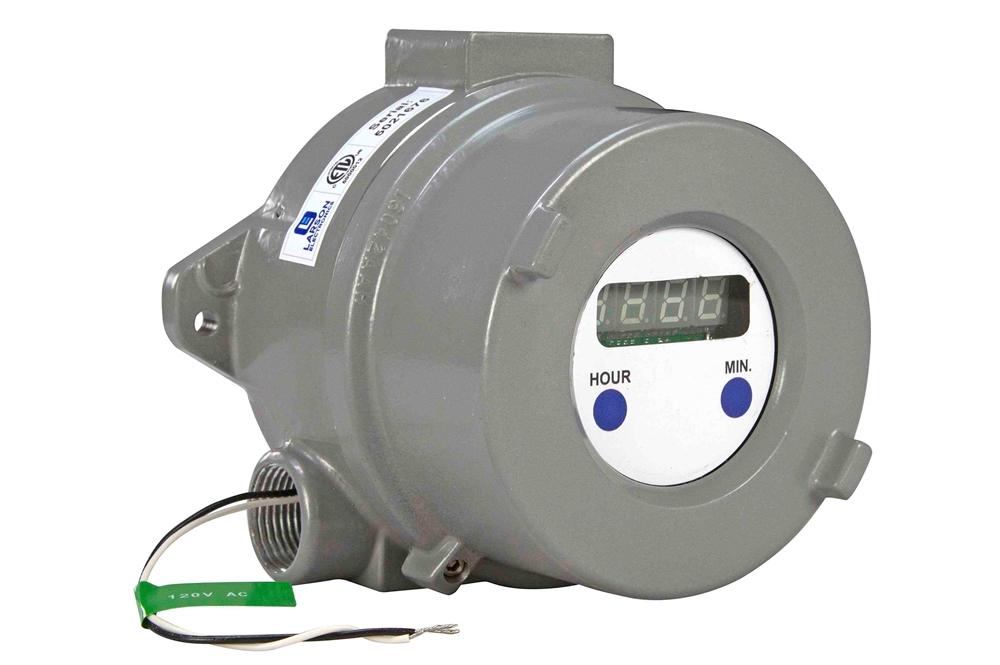

Explosion Proof Digital Time Clock - Class I, II, III - 120V, 50/60Hz - LCD Display - Magnetic Switches - NEMA


Sale price$1,867.99


Specifications / Additional Information
EXP-EL-TC.D-12H-M1-120V Explosion Proof Clock Ratings/Approvals
Listing: NRTL Listed for United States, Canada Class I, Divisions 1 & 2, Groups B, C, D
Device Type: Explosion Proof Digital Time Clock Class II, Divisions 1 & 2, Groups E, F ,G
Dimensions: 4-17/32"H x 6-1/8"W Class III, Divisions 1 & 2
Lens Opening: 2-9/32" NRTL Listed to UL 508A
Weight: - NRTL Listed to UL 1203
Voltage: 120V AC, 50/60Hz NRTL Listed to CSA C22.2 No. 14
Clock Display Type: LCD NRTL Listed to CSA C22.2 No. 25
Controls: Magnetic Switches (Hour/Minute Settings) NRTL Listed to CSA C22.2 No. 30
Cover Material: Copper-free Aluminum Alloy NEMA 3, 4, 7(B,C,D), 9(E,F,G)
Sealing Gasket: Neoprene O-ring
Ground Screw Material: Zinc Plated Steel w/ Green Dye
Allen Head Cover Screw Material: Cadmium Plated Steel Toll Free: 1-800-369-6671
Enclosure Finish: Silver Powder Epoxy Paint, Electrostatically Applied Intl: 1-214-616-6180
Glass Lens Material: 3/8" Thick Tempered Glass Fax: 1-903-498-3364
Wiring Hubs: Offset Feed-thru (3/4" NPT) E-mail:
' Product Overview '
The EXP-EL-TC.D-12H-M1-120V from Larson Electronics is an Explosion Proof Digital Time Clock that is suitable for use in hazardous locations, confined spaces and industrial facilities. This NEMA-rated unit is compatible with 120V AC, 50/60Hz. Magnetic switches enable operators to set the hour/minutes without opening the enclosure after installation. The EXP-EL-TC.D-12H-M1-120V is designed for Class I, II and III rated combustible sites. Equipped with an LCD display, the device contains magnetic switches that allow operators to change the hour/minute settings after installation without opening the enclosure. This feature works through the glass of the clock, enabling operators to change the time settings quickly and safely. Time adjustments with the magnetic switches can be completed in the field (hazardous area). This unit is protected by a copper-free aluminum housing for durability. Neoprene 0-rings are provided with the enclosure to ensure water resistance in NEMA 4/IP66 conditions. We offer a timer model that operates like a stop watch for keeping track of projects, processing, tasks, uptime, downtime and more. This timer/stop watch model is available as a separate unit, at an additional cost. Voltage: This digital time clock operates on 120V AC, 50/60Hz. The explosion proof clock comes with offset feed-thru conduit openings (3/4€ NPT). An internal ground screw is conveniently located away from the mounting components. The enclosure is finished with silver powder epoxy paint (electrostatically applied). The ground screws are made out of zinc plated steel with green dye, while the allen head cover screw is constructed of cadmium plated steel. This unit comes with a 3/8" thick tempered glass lens cover. The explosion proof device is rated NEMA Type 3, 4, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Applications: Hazardous locations, oil and gas, chemical plants, wastewater facilities, hydrogen plants, battery storage buildings and more.
