Explosion Proof Digital Time Clock - Class I, II, III - 120V, 50/60Hz - LCD Display, Magnetic Switches, Syncing - (2) Hubs

LARSON ELECTRONICSSKU: PL3-EXP-EL-TC.D-SYC-12H-HMS-9X5-M1-120V
filler

Price:
Sale price$14,834.00

Description

Specifications / Additional Information
EXP-EL-TC.D-SYC-12H-HMS-9X5-M1-120V Explosion Proof Clock Ratings/Approvals
Listing: NRTL Listed for United States, Canada Listed for NEC and CEC
Device Type: Explosion Proof Digital Time Clock Class I, Divisions 1 & 2, Groups B, C, D
Internal Dimensions: 14"L x 10"W x 6"H Class I, Zones 1 & 2, Groups IIB+H2, IIA
External Dimensions: 19.25"L x15.25"W x 8.90"H Class II, Divisions 1 & 2, Groups E, F, G
Viewing Window: 5"H x 9"W Class III, Divisions 1 & 2
Weight: - NEMA Type 3, 4, 4X
Voltage: 120V AC, 50/60Hz NRTL Listed to UL 508A
Clock Display Type: LCD NRTL Listed to UL 1203
Time Display: Hour, Minute and Second
Controls: Magnetic Switches (Hour/Minute Settings)
Syncing: Yes
Ambient Operating Temp Range: -30°C to +60°C
Operating Temp Rating: T5/T6 Rated
Enclosure Material: Copper Free Cast Aluminum (less than 4/10 of 1%)
Hardware Material: Zinc Plated Steel
Enclosure Finish: Aluminum Lacquer Paint; Custom Available
Operating Window: Hardened Borosilicate Glass
Mounting: Surface Mount Legs
Mounting Leg Height: 0.25"
Mounting Dimensions (Horizontal) Height: 8.94"
Mounting Dimensions (Horizontal) Width: 12.94"
Mounting Dimensions (Vertical) Height: 16.94" Center to Center Intl: 1-214-616-6180
Mounting Dimensions (Vertical) Width: 4.94" Center to Center
Hubs: (2) 3/4" NPT @ South Side of Enclosure
' Product Overview '

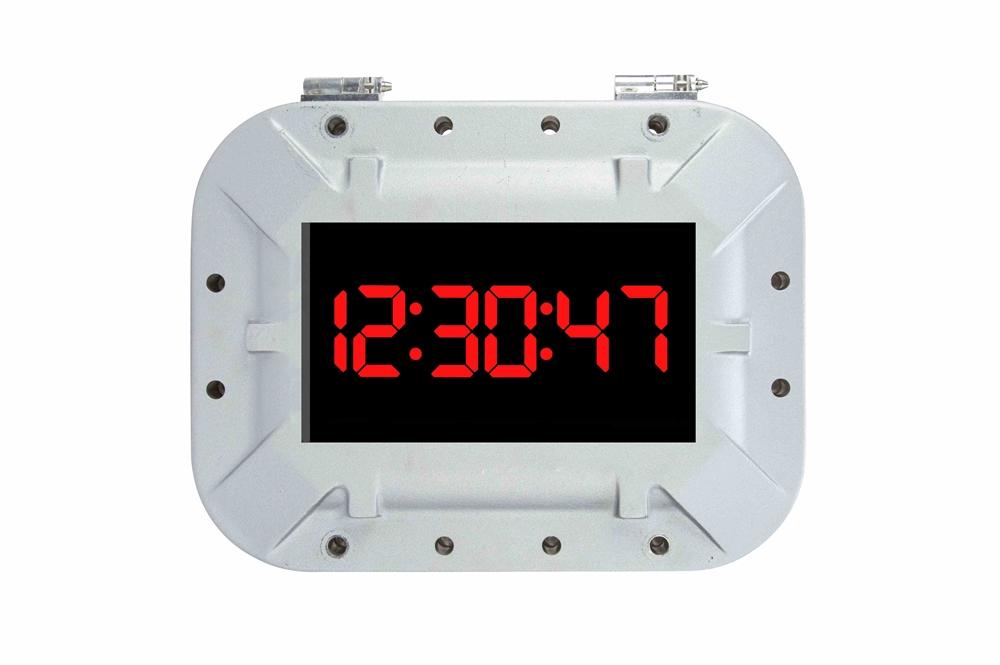

The EXP-EL-TC.D-SYC-12H-HMS-9X5-M1-120V from Larson Electronics is an Explosion Proof Digital Time Clock that is suitable for use in hazardous locations, confined spaces and industrial facilities. This NEMA-rated unit is compatible with 120V AC, 50/60Hz and can be synced with other clocks. Magnetic switches enable operators to set the hour/minutes without opening the enclosure after installation. Protected by a cast aluminum housing, the unit is compatible with surface mounting applications. The EXP-EL-TC.D-SYC-12H-HMS-9X5-M1-120V is designed for Class I, II and III rated combustible sites. Equipped with an LCD display, the device contains magnetic switches that allow operators to change the hour/minute settings after installation without opening the enclosure. This feature works through the glass of the clock, enabling operators to change the time settings quickly and safely. Time adjustments with the magnetic switches can be completed in the field (hazardous area). The digital clock can be synced with other clocks and has the following clock display: hour, minute and second. The clock display is visible through a 5" tall by 9" wide viewing window. We offer a timer model that operates like a stop watch for keeping track of projects, processing, tasks, uptime, downtime and more. This timer/stop watch model is available as a separate unit, at an additional cost. The explosion proof clock is protected by a cast aluminum enclosure, which is equipped with steel bolts and includes a weatherproof gasket for a NEMA 3R/NEMA 4 protection rating. The internal cavity of the enclosure measures 14" in length by 10" in width by 6" in height. Voltage: This digital time clock operates on 120V AC, 50/60Hz. Hubs: Two, 3/4" NPT hubs are available on the south side of the enclosure. Mount: The EXP-EL-TC.D-SYC-12H-HMS-9X5-M1-120V is compatible with surface mounting installations. Suggested Applications: The explosion proof clock is approved for use within indoor and outdoor environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications. Applications include but not limited to aircraft maintenance, alcohol processing, aerospace, chemical manufacturing, coke processing, cold storage, compressed natural gas (CNG) facilities, cranes, cryogenics, distilleries, food processing, fuel storage, gas processing plants, grain processing, laboratories, liquefied natural gas (LNG) facilities, liquid propane gas (LPG), machine operations, manufacturing, marine vessels, methane production, mining, offshore, oil drilling rigs, oil refineries, paint spray booths, paper processing, petrochemical, petroleum refineries, pharmaceuticals, power plants, production refineries, sand blast cabinets, sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, textile, washdown areas, waste treatment plants, and woodworking. .
