Explosion Proof Digital Time Clock - Class I, II, III - 120V, 50/60Hz - LCD Display - Magnetic Switches - NEMA - Syncing
Explosion Proof Digital Time Clock - Class I, II, III - 120V, 50/60Hz - LCD Display - Magnetic Switches - NEMA - Syncing
| EXP-EL-TC.D-SYC-12H-M1-120V Explosion Proof Clock | Ratings/Approvals |
| Listing: NRTL Listed for United States, Canada | Class I, Divisions 1 & 2, Groups B, C, D |
| Device Type: Explosion Proof Digital Time Clock | Class II, Divisions 1 & 2, Groups E, F ,G |
| Dimensions: 4-17/32"H x 6-1/8"W | Class III, Divisions 1 & 2 |
| Lens Opening: 2-9/32" | NRTL Listed to UL 508A |
| Weight: - | NRTL Listed to UL 1203 |
| Voltage: 120V AC, 50/60Hz | NRTL Listed to CSA C22.2 No. 14 |
| Clock Display Type: LCD | NRTL Listed to CSA C22.2 No. 25 |
| Controls: Magnetic Switches (Hour/Minute Settings) | NRTL Listed to CSA C22.2 No. 30 |
| Syncing: Yes | NEMA 3, 4, 7(B,C,D), 9(E,F,G) |
| Cover Material: Copper-free Aluminum Alloy | Â |
| Sealing Gasket: Neoprene O-ring | |
| Ground Screw Material: Zinc Plated Steel w/ Green Dye | |
| Allen Head Cover Screw Material: Cadmium Plated Steel | |
| Enclosure Finish: Silver Powder Epoxy Paint, Electrostatically Applied | |
| Glass Lens Material: 3/8" Thick Tempered Glass | |
| Wiring Hubs: Offset Feed-thru (3/4" NPT) |

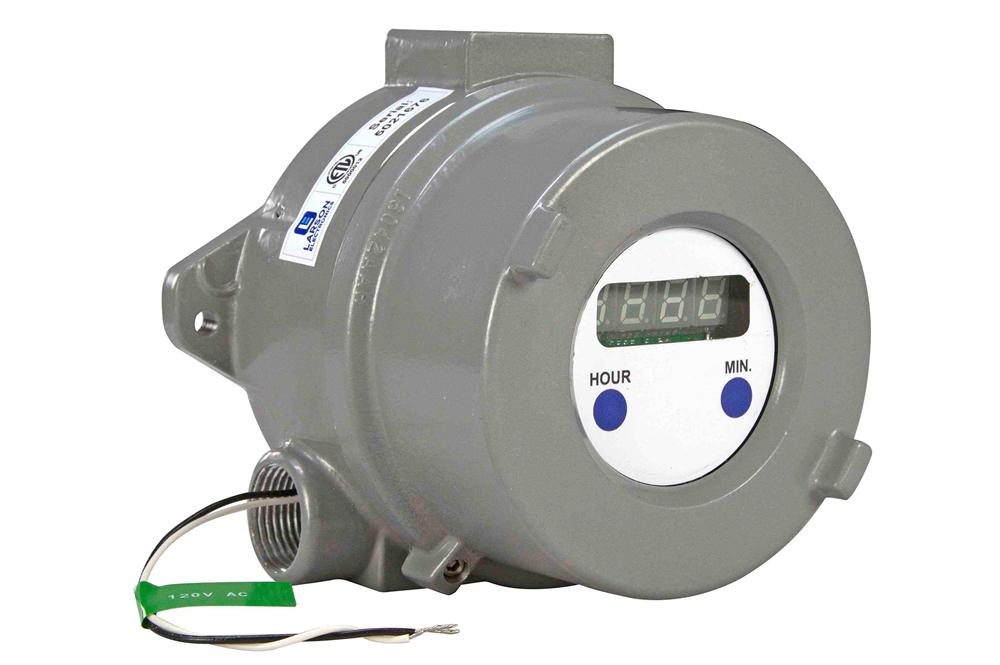

| The EXP-EL-TC.D-SYC-12H-M1-120V from Larson Electronics is an Explosion Proof Digital Time Clock that is suitable for use in hazardous locations, confined spaces and industrial facilities. This NEMA-rated unit is compatible with 120V AC, 50/60Hz and can be synced with other clocks. Magnetic switches enable operators to set the hour/minutes without opening the enclosure after installation. The EXP-EL-TC.D-SYC-12H-M1-120V is designed for Class I, II and III rated combustible sites. Equipped with an LCD display, the device contains magnetic switches that allow operators to change the hour/minute settings after installation without opening the enclosure. This feature works through the glass of the clock, enabling operators to change the time settings quickly and safely. Time adjustments with the magnetic switches can be completed in the field (hazardous area). The digital clock can be synced with other clocks. This unit is protected by a copper-free aluminum housing for durability. Neoprene 0-rings are provided with the enclosure to ensure water resistance in NEMA 4/IP66 conditions. We offer a timer model that operates like a stop watch for keeping track of projects, processing, tasks, uptime, downtime and more. This timer/stop watch model is available as a separate unit, at an additional cost. The explosion proof clock comes with offset feed-thru conduit openings (3/4€ NPT). An internal ground screw is conveniently located away from the mounting components. The enclosure is finished with silver powder epoxy paint (electrostatically applied). The ground screws are made out of zinc plated steel with green dye, while the allen head cover screw is constructed of cadmium plated steel. This unit comes with a 3/8" thick tempered glass lens cover. The explosion proof device is rated NEMA Type 3, 4, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Voltage: This digital time clock operates on 120V AC, 50/60Hz. Applications: Hazardous locations, oil and gas, chemical plants, wastewater facilities, hydrogen plants, battery storage buildings and more. |
