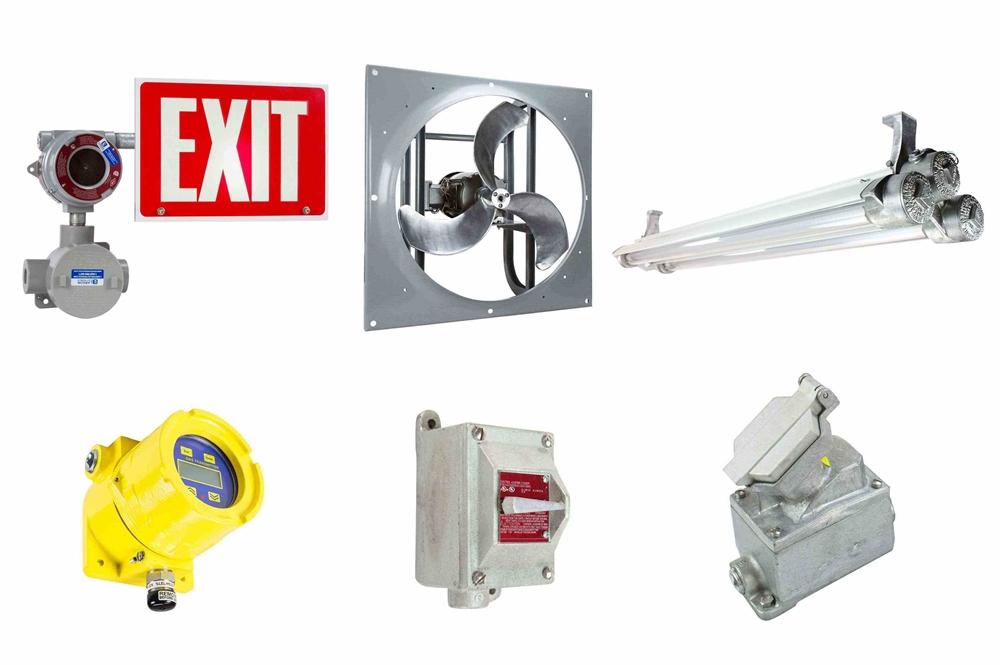

EXP-EXTRM-10FT-PKG-V5 Explosion Proof Extraction Room Package |
Ratings/Approvals |
EXP-EMG-EXT-LE6-1L Explosion Proof Exit Sign |
|
Quantity: 1 |
Class I, Divisions 1 & 2, Groups A, B, C, D |
Listing: NRTL Listed for United States & Canada |
Class I, Zones 1 & 2, Groups IIB+H2 |
Lamp Type: LED |
Class II, Divisions 1 & 2, Groups E, F, G |
Dimensions: 14.8"L x 12"H x 8" |
Class III Divisions 1 & 2 |
Voltage: 120-277V AC |
3 Hour Emergency Runtime |
Watts: 1.1 |
Self-Testing Unit |
Lighting Configuration: Back Illuminated Sign Panel |
|
Battery Backup Runtime: 3 Hours |
|
Battery Backup: Nickel Cadmium Battery Pack |
|
Faceplate Color: Copper Free Aluminum Housing |
|
Materials: Red or Green |
|
Mounting: Ceiling Mount, Pendant Mount or Wall Mount |
|
Wiring: 3/4" NPT Wiring Hub |
|
|
 |
EPL-48-2L-LED Explosion Proof LED Fixture |
Ratings/Approvals |
Quantity: 1 |
Class I Divisions 1 & 2, Groups C and D |
Listing: NRTL Listed for United States - Canada |
Class II, Divisions 1 & 2, Groups E, F, G |
Dimensions: 11.25"W x 52"L x 8.5"H |
Certified Canadian Standards |
Weight: 45 lb s |
Listed for Paint Spray Booths |
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC |
California Title 24 Compliant |
Total Watts: 56 Watts (28 Watts Per Lamp) |
IP67 Rated - Waterproof |
Total Lumens: 7,000 (3,500 Per Lamp) |
T6 Temperature Rating |
LED Lamp Life Expectancy: 50,000+ Hours |
NEMA 4X |
Luminous Efficacy: 125 Lumens per Watt |
LEL Listed LED Lamps |
Color Temp: 5600K, 4500K or 3000K |
Approved for Confined Spaces |
Color Rendering Index: >80 |
Silicone Free |
Beam Angle: 150° |
Factory Sealed Fixture |
Power Efficiency: 90% |
BAA Compliant |
Power Factor: >0.95 |
Made in the USA |
Ambient Operating Temp Range: -30°C to +85°C |
 |
Operating Temp Rating: T6 Rated |
 |
Minimum Operating Temp: -30°C |
 |
Maximum Case Temp: +90°C |
|
Housing Material: Cast Aluminum End Caps, Aluminum Reflectors - Copper Free |
|
Lens Material: Hardened Borosilicate Glass Tubes |
|
Gasket Material: Buna Rubber O-Rings |
|
Mounting: Surface |
|
Wiring Hub: 1/2" NPT |
|
|
 |
EPL-SW1 Explosion Proof Tumbler Switch |
Ratings/Approvals |
Quantity: 1 |
Class I Divisions 1 & 2 Groups B, C, D |
Switch Voltage Rating: 120-277V AC |
Class II Division 1 & 2 Groups E, F, G |
Switch Current Rating: 20 Amps- 1 HP @ 120V AC & 2 HP @ 240V AC |
Class III |
Grounding: Single Internal Housing Ground Screw |
NEMA 4 |
Configuration: Feed Through, Front Switch |
NEMA 7 Groups C & D |
Hub Qty: (2) Feed Through |
NEMA 9 Groups E, F, G |
Hub Size: 3/4" NPT Feed Through |
|
Unit Materials: Box/Receptacle- Malleable Iron, Sealing Chamber-Aluminum |
|
Finish: Triple-coatâ€â€Zinc Electroplate, Chromate, Epoxy powder coat |
|
Insulation: Integral Bushings in Conductor Openings |
|
Mounting: External Mounting Lugs on Body |
|
Unit Dimensions: 3.00"W x 4.69"D x 6.13"L |
|
Switch Type: Single Pole |
|
|
 |
EPO-20A Explosion Proof Power Outlet |
Ratings/Approvals |
Quantity: 2 |
Class I Divisions 1 & 2 Groups B*,C, D |
Unit Dimensions: 3"W x 5.69"D x 6.13"H |
Class II Divisions 1 & 2 Groups F and G |
Receptacle Current Rating: 20 Amp |
Class III |
Configuration: 3 Pole 2 Wire |
NEMA 3, 3R, 7BCD, 9FG |
Number of Poles: 3 |
 |
Conduit Openings: 3/4" |
 |
Mating Plugs: ****, **** |
 |
Grounding: Housing only |
 |
Unit Materials: Box- Iron /Receptacle- Copper Free Aluminum (4/10 of 1% max.) |
|
Finish: Box-Triple Coat / Receptacle-Epoxy Powder Coat |
|
Insulating Blocks: Fiber Glass Reinforced Polyester |
|
*Suitable for use in Class I, Division 1, Group B
when used with external seals. |
|
|
 |
16" Explosion Proof Low Pressure Fan - 2950 CFM - 1/4 HP - 115V - C1 Group D & C2 Groups F & G |
Ratings/Features |
Listing: NRTL Listed for United States |
Class I, Divisions 1 & 2, Group D |
Type: Low Pressure Industrial Fan |
Class II, Divisions 1 & 2, Groups F & G |
Propeller Dimensions: 16" Diameter |
Spark-Resistant Propeller |
Propeller Material: Spark-Resistant Cast Aluminum |
Up To 2950 CFM Air Movement |
Weight: 40 lbs |
Rated for Hazardous Environments |
Voltage: 115V AC Single Phase |
 |
Motor: 1/4 HP Fully Enclosed Explosion Proof |
 |
Rotations Per Minutes (RPM): 1725 |
 |
Peak CFM (@ 0" SP): 2950 |
 |
Max Sones @ 5`: 17.6 |
 |
Wiring: Hard-Wire |
 |
Mounting: Permanent Mount (4 Holes) |
 |
|
 |
EPF-LPSM-12-0.25HP Explosion Proof Low Pressure Fan |
Ratings/Approvals |
Listing: NRTL Listed for United States |
Class I, Divisions 1 & 2, Group D |
Type: Low Pressure Ventilation Fan |
Class II, Divisions 1 & 2, Groups F & G |
Propeller Dimensions: 12" Diameter |
Spark-Resistant Propeller |
Propeller Material: Spark-Resistant Cast Aluminum |
 |
Weight: - |
 |
Voltage: Multi-Voltage - 115-230V AC |
 |
Motor: 1/4 HP Fully Enclosed Explosion Proof |
 |
Full Load Amps: - |
 |
Rotations Per Minutes (RPM): - |
|
Peak CFM (@ 0" SP): 970 |
|
Max Sones @ 5`: - |
|
Wiring: Hard-Wire |
|
Mounting: Permanent Mount |
|
|
 |
EXP-SNR-TG-EC-ITS-ALG-HC200 Hydrocarbon Gas Sensor |
Features/Ratings |
Listing: NRTL Listed for United States and Canada |
Class I, Divisions 1 & 2, Groups B, C, D |
Gas Type: Hydrocarbon (Methane, Butane, Propane, Pentane) |
HC Sensor |
Transmitter Type: Electrochemical Without Arms |
LCD Graphic Display, Internal Data Logger |
Sensor Holder: Integral Holder |
Non-Intrusive Magnetic Operation |
Output: Analog |
 |
PPM Detection Range: 0-200 ppm |
Sensor Sensitivity: 120 Lm/W |
Operational Temp Range: >-25º to +55ºC |
Toll Free: 1-800-369-6671 |
Operational RH Range: 0-95% Non-condensing |
Intl: 1-214-616-6180
|
Housing: Cast Aluminum |
Output Range: Scalable 4-20 mA |
