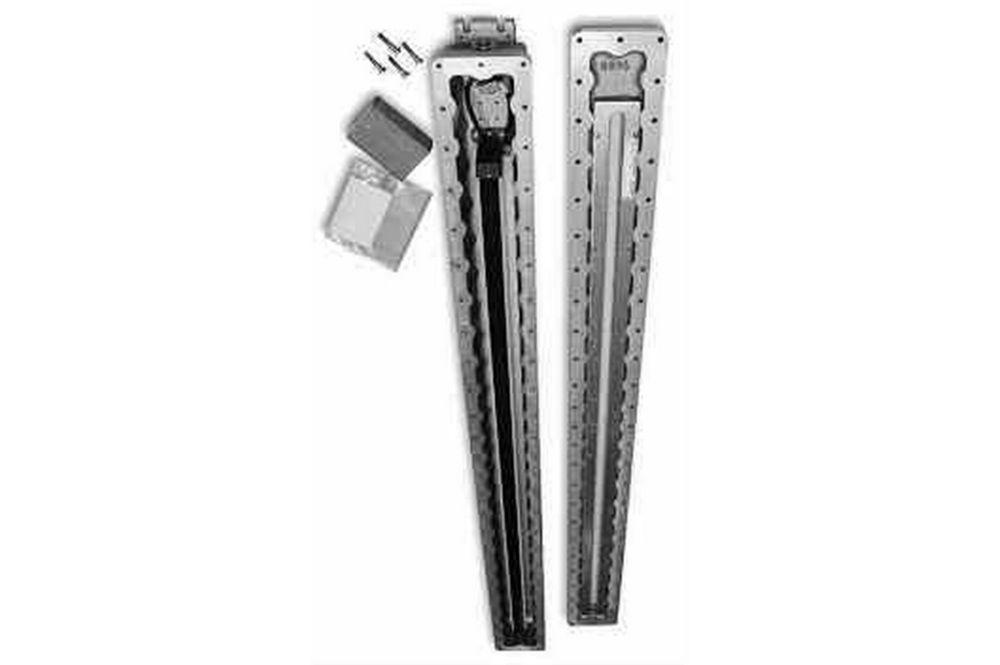

Explosion Proof Safety Light Curtain - Class I, II, III, Div 1&2 - 24V DC - 45' Range - Solid State

LARSON ELECTRONICSSKU: PL3-EXP-LX-V1-48
filler

Price:
Sale price$74,232.00

Description

Specifications / Additional Information
EXP-LX-V1-48 Explosion Proof Light Curtain Features/Ratings
Unit Type: Explosion Proof Safety Curtain Class I, Div. 1&2, Groups C,D
Dimensions: - Class II, Div 1, Groups E,F,G
Weight: - Class II, Div 2, Groups F,G
Watts: 14W Class III
Voltage: 24V DC +/- 20% ATEX Directive 94/9/EC Certificate Number DEMKO 04 ATEX 0322237U
MPCE Monitoring Circuit: 50 mA Steady State @ 24V DC NEMA 3,4,4X,7,9,12
Start/Restart Input Circuit: 20 mA @ 24V DC IP66
LED Type: GaAlAs LED, 850 nm Float Blanking
Resolution: 0.55", 0.75" or 1.18"
Operating Range: 1` to 45` (0.75" or 1.18" Resolutions Only)
Protected Height: 13.8" to 48"
Response Times: Varies w/ Protected Height
Effective Aperture Angle: ±2.5° Maximum (Transmitter/Receiver OP Range > 9.8`)
Indicator: Transmitter- Power Applied, Receiver- Machine Run, Machine Stop, Interlock/fault, Channel Select/Floating Blanking, Individual Beam
Operating Temp: 0°C to 55°C (32°F to 131°F)
Relative Humidity: 95% Maximum, Non-condensing Toll Free: 1-800-369-6671
Materials: Cast Aluminum, 357-T6 Aluminum Alloy Intl: 1-214-616-6180
Mount: Surface
Cable Connections: Receiver- 8-pin, Transmitter- 3-pin Standard, 5-pin w/ MTS (Not Included)
' Product Overview '
Made in the USA The Larson Electronics EXP-LX-V1-48 Explosion Proof Safety Light Curtain is an automated, solid-state safety system for machines in combustible work sites. Consisting of a transmitter and receiver, the 24V DC system provides protection at heights ranging between 13.8" and 48". Both explosion proof components are constructed of cast aluminum. The EXP-LX-V1-48 is a cutting-edge safety light curtain for hazardous locations and flammable environments. This 24V DC system consists of a transmitter and a receiver, which provides automated detection of movements around machines. The solid-state, 14-watt system is capable of protection at heights between 13.8" and 48" with 0.55", 0.75" or 1.18" resolutions. Operating range includes 1` to 45` for 0.75" and 1.18" resolutions. During use, operators can select automatic start or start/restart interlock mode, which is suitable for point-of-operation or perimeter guarding configurations. In float blanking mode, up to two beams can be blocked within the desired zone. This explosion proof system is constructed of cast aluminum. For protection against water and dust, the components are NEMA and IP66 rated. Mounting/Wiring: The EXP-LX-V1-48 is compatible with surface mount configurations. An 8-pin connection for the receiver and a 3-pin standard connection for the transmitter are available. When used with an MTS (not included), a 5-pin connection for the transmitter can be used. No cable is needed between the explosion proof transmitter and receiver. Applications: Hazardous locations, safety systems, waste water plants, industrial printing, distillation facilities, pharmaceuticals, laboratories, chemical processing and more.
