Explosion Proof Motion Sensor - 11.5' to 25' Mounting Height - 13'x16' Coverage - Flat Surface Mount

LARSON ELECTRONICSSKU: PL3-EXP-MS-30W-N4X-SFC
filler

Price:
Sale price$5,605.99

Description

Specifications / Additional Information
EPL-SW1 Explosion Proof Tumbler Switch Certifications - Compliance
Listing: United States Class I, Division 1 & 2, Groups B, C, D
Dimensions: 7"-W x 5"-H x 9"-D Class II, Division 1 & 2, Groups E, F, G
Detection: Motion Class III
Detection Coverage:13` x 16` (when mounted at 16`) Class 1, Zone 1, AEx d llc
Tilt Angles: -90° to +30° in elevation EExd IIC, IP66
Max Contact Voltage: 42V AC/DC NEMA 4X
Max Contact Current: 1A (resistive) NEMA 7 (Groups B, C, D)
Max Switching Power: 30W (DC) / 60VA (AC) NEMA 9 (Groups E, F, G)
Output Hold Time: 0.5-9 seconds (Adjustable) EMC: 2004 / 108 / EC
Reaction Time: 100 ms R&TTE: 1999 / 5 / EC
Minimum Detection Speed: 2.2in/s
Mains Frequency: 50/60 Hz
Ambient Temperature Range: -22°F to +140°F Toll Free: 1-800-369-6671
Radiated Frequency: 24.125 GHz Intl: 1-214-616-6180
Transmitter Radiated Frequency: <20 dBm, EIRP
Radiated Power Density: <5 mW/cm2
' Product Overview '
The Larson Electronics EXP-MS-30W-N4X-SFC Explosion Proof motion sensor is approved Class 1 Division 1 & 2 and Class 2 Division 1 & 2 and the ability to power lights or other equipment within hazardous locations based on motion triggers. This explosion proof motion sensor is ideal for operators seeking a high quality explosion proof motion sensor rated for use in hazardous areas designated Class 1 Division 1 and Class 2 Division 1. This explosion proof motion detector can be mounted at heights ranging from 11.5` up to 23` above the ground and provides up to 13` by 16` coverage when mounted at 16`. The entire unit is constructed of malleable non sparking aluminum construction with a glass window for viewing the indication lights inside. This unit is flat surface mounted. The explosion proof housing provides two 1/2" or 3/4" hub openings located on either side of the housing for running electrical conductors in a feed through configuration. A bushing seal at each conductor opening prevents damage to wiring insulation. This unit leverages cutting-edge microwave sensors to detect motion. When in use, the device sends out discreet waves that are reflected back from nearby walls and objects (not heat or light). Microwave sensors are not affected by line of sight, resulting in wider and more accurate coverage of the target area. By comparison, traditional infrared sensors can only detect heat and light (factors used to identify movement) within the unit€™s field of view. Microwave sensors also provide stable performance in unpredictable climates and can penetrate glass, plastic and other non-metallic objects.

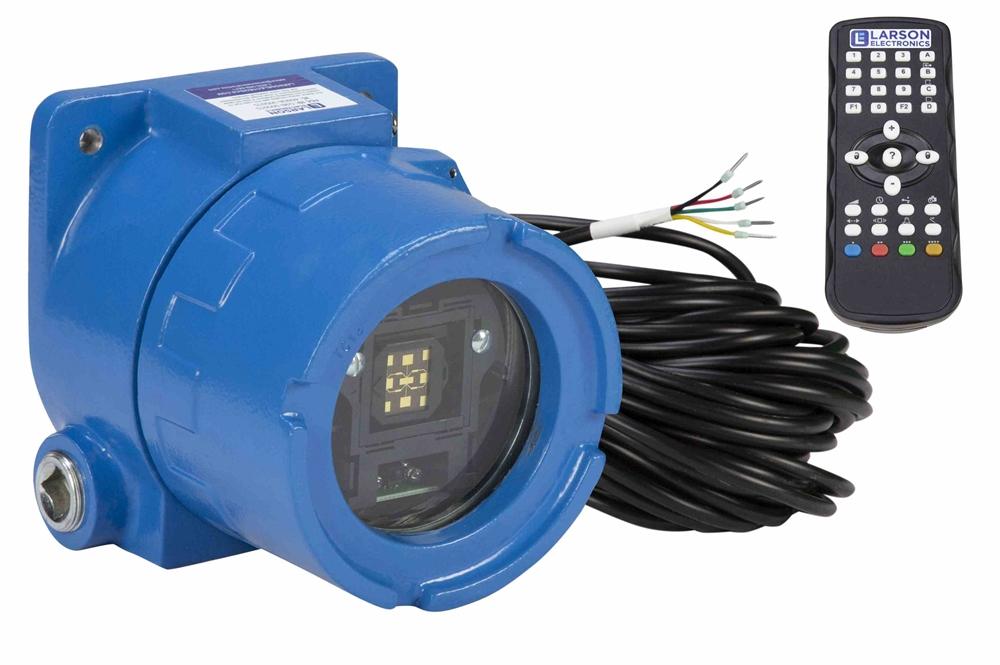

Click Photo to Enlarge
This unit is designed to operate on low voltage 12-24V AC or DC electrical systems, and is suitable for use in environments where combustible dusts and particulates may be present. 1/2" or 3/4" NPT tapped conduit openings are provided on either of the unit in feed through versions while dead end versions have a single conduit hub, providing easy and secure connection to main power line supplies. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present.
