|EXP-MS-N4X-AT-HV Explosion Proof Adjustable Motion Sensor||Ratings / Features|
|Listing: NRTL Listed for United States, Canada and IECEx/ATEX Rated||Listed for United States & Canada|
|Dimensions: 7"-W x 5"-H x 9"-D||Class I, Divisions 1 & 2, Groups B, C, D|
|Detection: Motion||Class I, Zones 1 & 2, Groups IIB+H2, IIA|
|Detection Coverage: 15` x 15` (Mounted @ 20-'25')||Class II, Divisions 1 & 2, Groups E, F, G|
|Tilt Angles: -90° to +30° - Elevation||Class III, Divisions 1 & 2|
|Reach: 6.5` to 32` - Adjustable||NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)|
|System Voltage: 120V, 208V, 220V, 240V or 277V AC||NRTL Listed to UL 508A|
|Maximum Wattage: 400W||NRTL Listed to UL 1203|
|Output Hold Time: 0.5 Secs to 15 Mins (Adjustable)||NRTL Listed to CSA C22.2 No 14, 25, 30|
|Mains Frequency: 50/60 Hz|
|Ambient Temperature Range: -22°F to +140°F|
|Radiated Frequency: 5.8 GHz|
|Operation: Normally Opened or Normally Closed|
|Wiring: Flying Leads|

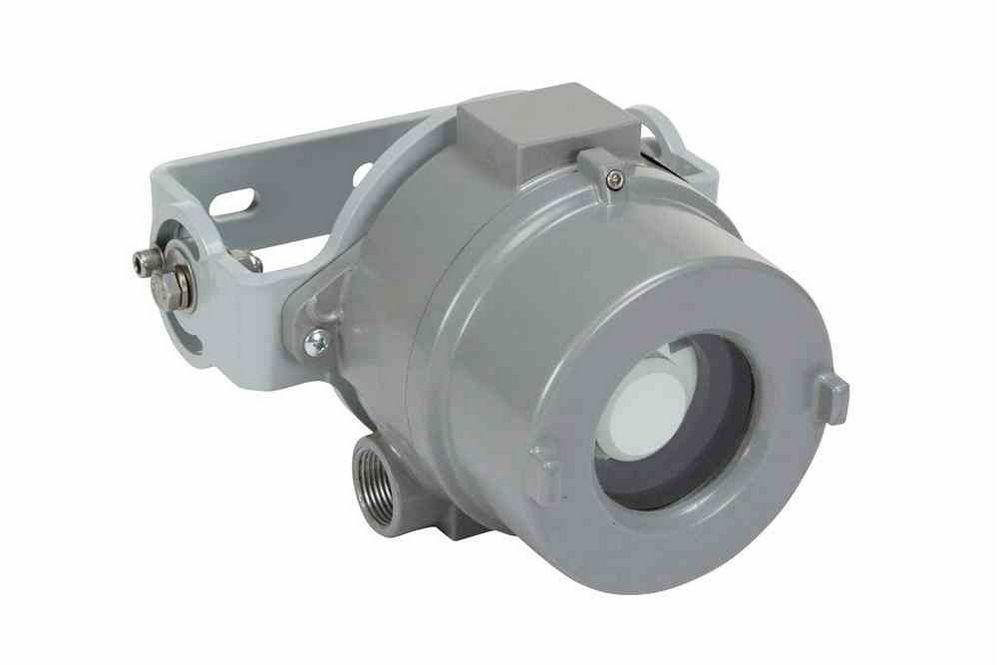

The Larson Electronics EXP-MS-N4X-AT-HV Explosion Proof Motion Sensor is approved for Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 rated areas and provides the ability to power lights or other equipment within hazardous locations based on motion. This C1D1 rated motion sensor features adjustable sensitivity and time delay after motion. Designed for mounting at a height ranging between 20-25 feet, the EXP-MS-N4X-AT-HV can handle a maximum load of 400 watts.
This explosion proof motion sensor is ideal for operators seeking a high quality explosion proof motion sensor rated for use in hazardous areas designated Class I, Divisions 1 and Class II, Division 1. This explosion proof motion detector provides up to 15` by 15` coverage when mounted at 20'-25'. The entire unit is constructed of copper free non-sparking aluminum construction with a glass window for motion detection. This unit is easily wall mounted via integral mounting bracket, which can be adjusted -90° to +30° vertically after installation. The explosion proof housing provides two 1/2" or 3/4" hub openings located on either side of the housing for running electrical conductors in a feed through configuration. A bushing seal at each conductor opening prevents damage to wiring insulation.
This unit leverages cutting-edge microwave sensors to detect motion. When in use, the device sends out discreet waves that are reflected back from nearby walls and objects (not heat or light). Microwave sensors are not affected by line of sight, resulting in wider and more accurate coverage of the target area. By comparison, traditional infrared sensors can only detect heat and light (factors used to identify movement) within the unit€™s field of view. Microwave sensors also provide stable performance in unpredictable climates and can penetrate glass, plastic and other non-metallic objects.
