400W Explosion Proof Motion Sensor - 10-20' Mounting - 15'x15' Area Coverage - 170 Minute Adj Timer

LARSON ELECTRONICSSKU: PL3-EXP-MS-N4X-AT-HV-V5
filler

Price:
Sale price$3,738.99

Description

Specifications / Additional Information
EXP-MS-N4X-AT-HV-V5 Explosion Proof Adjustable Motion Sensor Ratings / Features
Listing: United States, Canada, IECEx, ATEX Listed for United States & Canada
Dimensions: 7"-W x 5"-H x 9"-D Class I, Divisions 1 & 2, Groups B, C, D
Detection: Motion Class I, Zones 1 & 2, Groups IIB+H2, IIA
Detection Coverage: 15` x 15` (Mounted @ 16`) Class II, Divisions 1 & 2, Groups E, F, G
Tilt Angles: -90° to +30° - Elevation Class III, Divisions 1 & 2
Reach: 6.5` to 32` - Adjustable NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
System Voltage: 120V, 208V, 220V, or 277V AC NRTL Listed to UL 508A
Maximum Wattage: 400W NRTL Listed to UL 1203
Mains Frequency: 50/60 Hz NRTL Listed to CSA C22.2 No 14, 25, 30
Timer Range: 10 Seconds to 170 Minutes in 10-Second Increments
Repeat Accuracy: ±0.5% or 20ms, Whichever is Greater
Setting Accuracy: = ±2% or 20ms, Whichever is Greater
Reset Time: = 150ms
Ambient Temperature Range: -22°F to +140°F
Radiated Frequency: 5.8 GHz Intl: 1-214-616-6180
Operation: Normally Opened or Normally Closed
Wiring: Flying Leads
' Product Overview '

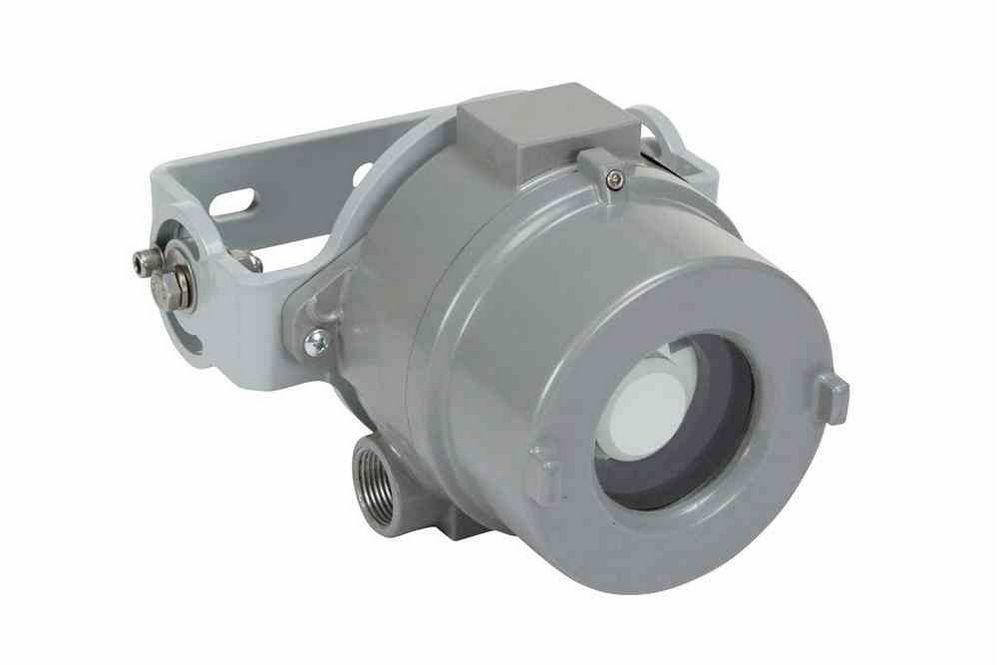

The Larson Electronics EXP-MS-N4X-AT-HV-V5 Explosion Proof motion sensor is approved Class I Divisions 1 & 2 and Class II Divisions 1 & 2 and the ability to power lights or other equipment within hazardous locations based on motion. This C1D1 rated motion sensor features adjustable sensitivity and time delay after motion. Equipped with an adjustable timer, the EXP-MS-N4X-AT-HV-V5 can handle a maximum load of 400 watts. This explosion proof motion sensor is ideal for operators seeking a high quality explosion proof motion sensor rated for use in hazardous areas designated Class I Divisions 1 and Class II Division 1. This explosion proof motion detector provides up to 15` by 15` coverage when mounted at 16`. The entire unit is constructed of copper free non-sparking aluminum construction with a glass window for motion detection. This unit is easily wall mounted via integral mounting bracket, which can be adjusted -90° to +30° vertically after installation. The explosion proof housing provides two 1/2" or 3/4" hub openings located on either side of the housing for running electrical conductors in a feed through configuration. A bushing seal at each conductor opening prevents damage to wiring insulation. This unit leverages cutting-edge microwave sensors to detect motion. When in use, the device sends out discreet waves that are reflected back from nearby walls and objects (not heat or light). Microwave sensors are not affected by line of sight, resulting in wider and more accurate coverage of the target area. By comparison, traditional infrared sensors can only detect heat and light (factors used to identify movement) within the unit€™s field of view. Microwave sensors also provide stable performance in unpredictable climates and can penetrate glass, plastic and other non-metallic objects. The EXP-MS-N4X-AT-HV-V5 comes with an adjustable timer, which offers an adjustable range of 10 seconds to 170 minutes. When the sensor is engaged, the circuit stays closed, keeping device running for the set duration (between 10 seconds - 170 minutes in 10 second increments). The timer component features a repeating accuracy value of +/- 0.5% and a setting accuracy value of +/- 2%.
EXP-MS-N4X-AT in operation. to view our Flex Couplers available for purchase.
Click Images to Enlarge
Reach Setting: For best results, it is recommended to adjust the motion sensitivity of the unit by configuring the reach setting. Reach is the term used to describe the radius of the circular detection zone produced on the ground. After mounting the sensor at a height of 8.2 feet, operators can adjust each control to select distance sensitivity. This detection distance is measured using a person who is between 5.2 feet and 5.5 feet tall with an average build, moving at a speed of 1.0-1.5m/sec. If any of these variables are changed, the detection distance will also change. The EXP-MS-N4X-AT-HV-V5 operates like a standard on/off light switch. The circuit is normally open when no motion is present. Once motion is detected, the internal switch changes to a closed circuit, allowing voltage to pass through the sensor and power the device(s) at the other end. This unit is designed to operate on 120V, 208V, 220V, 240V, or 277V AC electrical circuits. We also offer low voltage 12-24V AC or DC electrical systems. This motion sensor is suitable for use in environments where combustible dusts and particulates may be present.
Motion Detected Through a Wall
The EXP-MS-N4X-AT-HV-V5 has 1/2" or 3/4" NPT tapped conduit openings on either of the unit in feed through versions while dead end versions have a single conduit hub, providing easy and secure connection to main power line supplies. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present.
