400W Explosion Proof Motion Sensor - 20' to 25' Mounting Height - 15' x 15' Area Coverage - Timer - 100' Cord

LARSON ELECTRONICSSKU: PL3-EXP-MS-N4X-AT-LV-EYS-12.3-100C
filler

Price:
Sale price$5,708.99

Description

Specifications / Additional Information
EXP-MS-N4X-AT-LV-EYS-12.3-100C Explosion Proof Adjustable Motion Sensor Ratings / Features
Listing: NRTL Listed for United States, Canada and IECEx/ATEX Rated Listed for United States & Canada
Dimensions: 7"-W x 5"-H x 9"-D Class I, Divisions 1 & 2, Groups B, C, D
Detection: Motion Class I, Zones 1 & 2, Groups IIB+H2, IIA
Detection Coverage: 15` x 15` (Mounted @ 20-'25') Class II, Divisions 1 & 2, Groups E, F, G
Tilt Angles: -90° to +30° - Elevation Class III, Divisions 1 & 2
Reach: 6.5` to 32` - Adjustable NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
System Voltage: 12 or 24V AC/DC NRTL Listed to UL 508A
Maximum Wattage: 400W NRTL Listed to UL 1203
Output Hold Time: 0.5 Secs to 15 Mins (Adjustable) NRTL Listed to CSA C22.2 No 14, 25, 30
Mains Frequency: 50/60 Hz
Ambient Temperature Range: -22°F to +140°F
Radiated Frequency: 5.8 GHz
Operation: Normally Opened or Normally Closed
Wiring: 100' 12/3 SOOW Cord
' Product Overview '

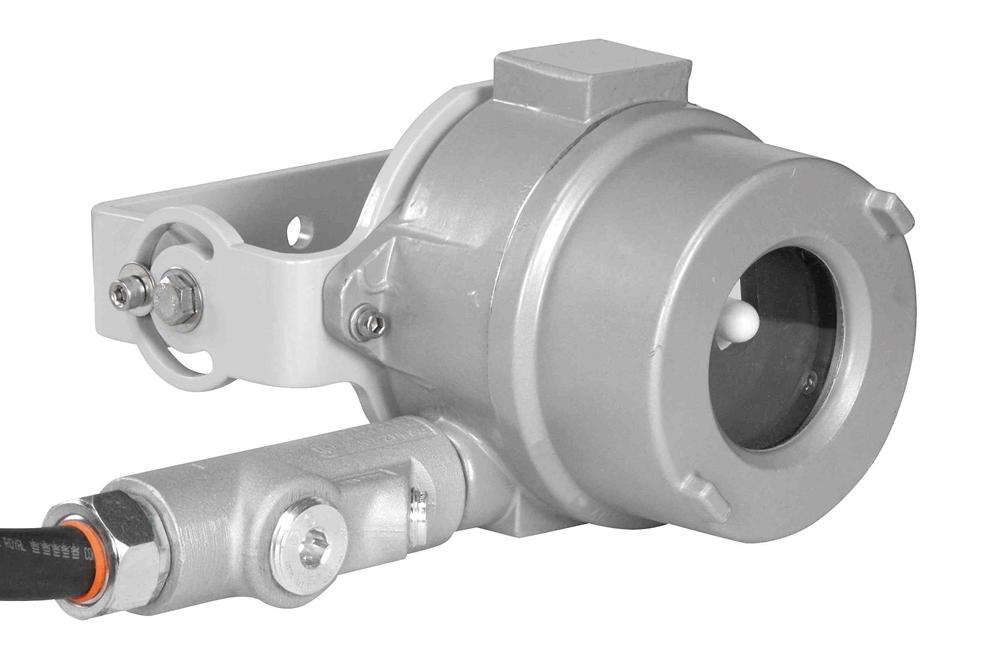

The Larson Electronics EXP-MS-N4X-AT-LV-EYS-12.3-100C Explosion Proof Motion Sensor is approved for Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 rated areas and provides the ability to power lights or other equipment within hazardous locations based on motion. This low voltage C1D1 rated motion sensor features adjustable sensitivity and time delay after motion. Designed for mounting at a height ranging between 20-25 feet, the EXP-MS-N4X-AT-LV-EYS-12.3-100C can handle a maximum load of 400 watts. This explosion proof motion sensor is ideal for operators seeking a high quality explosion proof motion sensor rated for use in hazardous areas designated Class I, Divisions 1 and Class II, Division 1. This explosion proof motion detector provides up to 15` by 15` coverage when mounted at 20'-25'. The entire unit is constructed of copper free non-sparking aluminum construction with a glass window for motion detection. This unit is easily wall mounted via integral mounting bracket, which can be adjusted -90° to +30° vertically after installation. This unit leverages cutting-edge microwave sensors to detect motion. When in use, the device sends out discreet waves that are reflected back from nearby walls and objects (not heat or light). Microwave sensors are not affected by line of sight, resulting in wider and more accurate coverage of the target area. By comparison, traditional infrared sensors can only detect heat and light (factors used to identify movement) within the unit€™s field of view. Microwave sensors also provide stable performance in unpredictable climates and can penetrate glass, plastic and other non-metallic objects.
EXP-MS-N4X-AT in operation.  to view our Flex Couplers available for purchase.
Click Images to Enlarge
Reach Setting: For best results, it is recommended to adjust the motion sensitivity of the unit by configuring the reach setting. Reach is the term used to describe the radius of the circular detection zone produced on the ground. After mounting the sensor at a height of 20-25 feet, operators can adjust each control to select distance sensitivity. This detection distance is measured using a person who is between 5.2 feet and 5.5 feet tall with an average build, moving at a speed of 1.0-1.5m/sec. If any of these variables are changed, the detection distance will also change. The EXP-MS-N4X-AT-LV-EYS-12.3-100C operates like a standard on/off light switch. The circuit is normally open when no motion is present. Once motion is detected, the internal switch changes to a closed circuit, allowing voltage to pass through the sensor and power the device(s) at the other end. This unit is designed to operate on low voltage 12-24V AC or DC electrical circuits. This motion sensor is suitable for use in environments where combustible dusts and particulates may be present.
Motion Detected Through a Wall
Wiring: The EXP-MS-N4X-AT-LV-EYS-12.3-100C is equipped with 100' of 12/3 SOOW cord for completing power connections. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present.
