Larson Explosion Proof Power Supply for EXP-MS-N4X-AT-LV Series - 100-277V AC Input - DC Output - (12) Units

Larson ElectronicsSKU: PL3-EXP-MS-N4X-AT-LV-xx-PS-12X
filler

Price:
Sale price$1,538.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

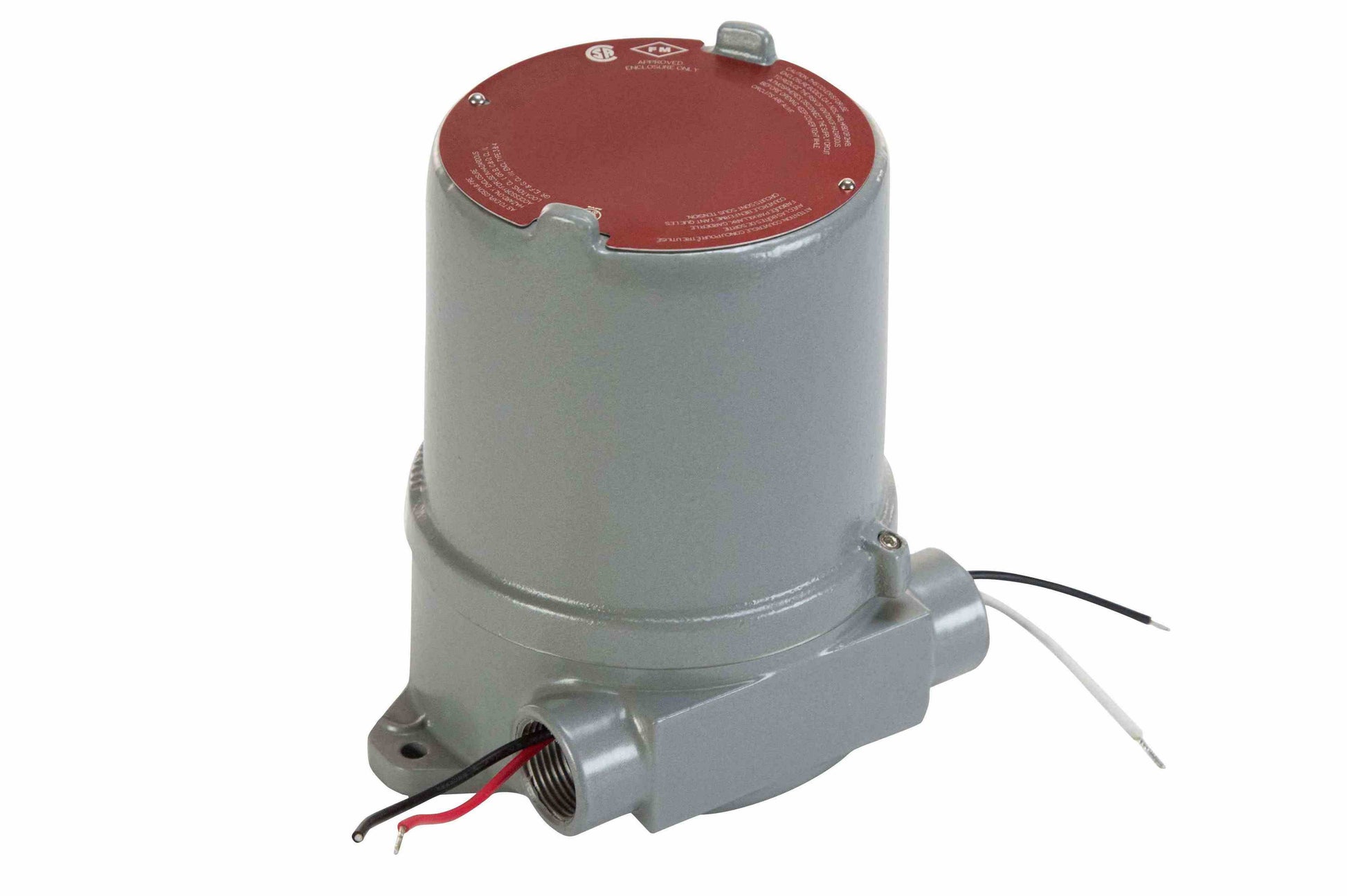

The EXP-MS-N4X-AT-LV-xx-PS-12X from Larson Electronics is an Explosion Proof Power Supply that takes 100-277V AC and converts it to 12V DC or 24V DC. This allows operators to use up to twelve EXP-MS-N4X-AT-LV series low voltage fixtures that require DC power from commonly used 100-277V AC electrical current. The EXP-MS-N4X-AT-LV-xx-PS-12X is rated for Class I, Divisions 1 & 2, Groups A, B, C, D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F ,G and Class III Divisions 1 & 2 hazardous areas.
The EXP-MS-N4X-AT-LV-xx-PS-12X explosion proof power supply features full range, universal AC input capability and can be operated with 100-277V AC. The unit converts this AC power input to 12V DC or 24V DC output. Designed for our EXP-MS-N4X-AT-LV series low voltage fixtures, the device provides constant power to connected equipment. This power supply handles up to 12 sensors. Integrally designed protection includes overload safeguards to prevent overheating and unit damage in case of faults or heavy current draw.
Hubs:
This AC/DC power supply features durable aluminum construction and a choice of 1/2" or 3/4" NPT hub sizes. The precision cast and machined surface permit safer wire pulling and the precision NPT-threaded hubs allow for trouble-free field installation of rigid conduit.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Listing: NRTL Listed for United States and Canada; ATEX/IECEx Rated
Unit Type: Explosion Proof AC/DC Constant Power Supply
Dimensions: 7.75"H x 6.13"W x 5.23"D
Weight: -
Input Voltage: 100-277V AC
Output Voltage: 12V DC or 24V DC
Compatibility: EXP-MS-N4X-AT-LV Series Larson Electronics Low Voltage Fixtures
Capacity: Up to 12 Sensors
Efficiency: -
Operating Temperature: 0° to 55°C
Temp Stability: 1%
Case Material: Aluminum
Mount: Surface
Wiring Hubs: 1/2" or 3/4" Threaded NPT Hubs
Color: Grey
