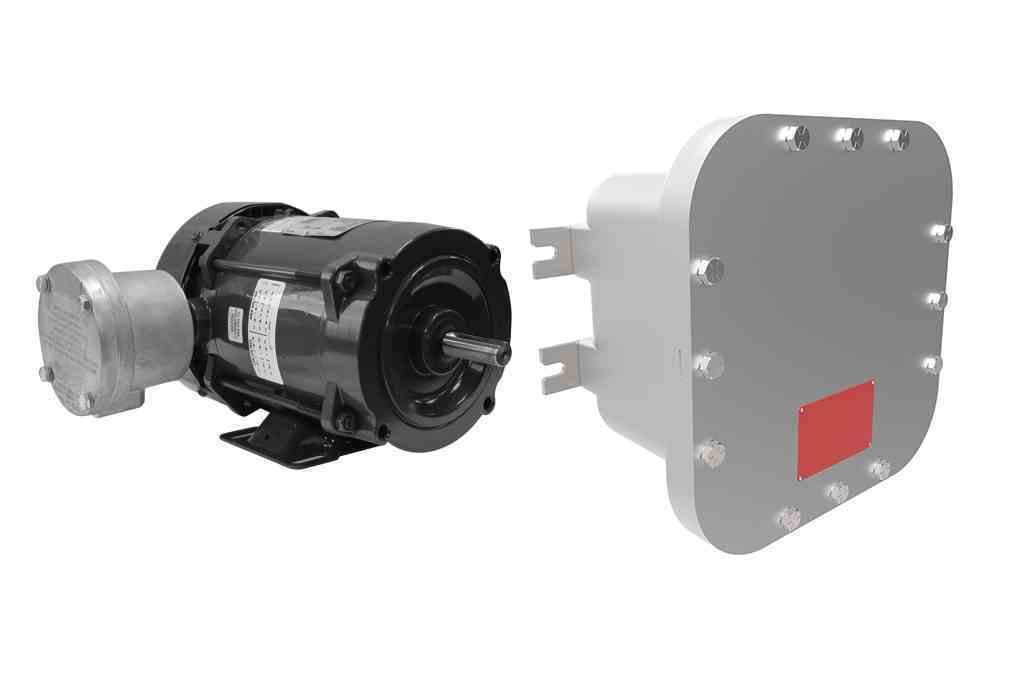

Larson 2 HP Explosion Proof Motor - Class I, II - 12V DC - 1700 RPM - Foot Mount - NEMA 56H

Larson ElectronicsSKU: PL3-EXP-MTR-1P-12VDC-2HP-1.8K-56H
filler

Price:
Sale price$10,098.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
The Larson Electronics EXP-MTR-1P-12VDC-2HP-1.8K-56H Explosion Proof Motor is recommended for use in Class I, Divisions 1 & 2 Groups C, D and Class II, Divisions 1 & 2 Groups E, F, G rated work sites. The 2 HP unit is compatible with 12V DC and offers 9.8 FLA. This Class F insulation rated explosion proof motor features a NEMA 56H motor frame and can be installed with industrial systems via an integrated mounting foot.
The EXP-MTR-1P-12VDC-2HP-1.8K-56H is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 12V DC. The 2 HP motor offers 9.8 full-load amps and 4.4 amps of no-load current. Capable of generating 1,700 RPM, the unit provides 3 lbs. ft. of torque, with 120% locked rotor torque and 250% break down torque. This motor is totally enclosed and fan-cooled (TEFC).
The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a NEMA 56H motor frame and features Class F insulation, with 1.0 service factor.
Wiring:
The EXP-MTR-1P-12VDC-2HP-1.8K-56H comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box.
Mount:
The EXP-MTR-1P-12VDC-2HP-1.8K-56H is foot mounted for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation.
Applications:
Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications / Additional Information
EXP-MTR-1P-12VDC-2HP-1.8K-56H Explosion Proof Motor
Ratings
Motor Dimensions:
14.54" x 6.92" x 6.98"
Listed for United States & Canada
Box Dimensions:
12" x 12" x 8"
Class I, Divisions 1&2 Groups C,D
Weight:
-
Class II, Divisions 1&2 Groups E,F,G
Phase:
-
T3B Temperature Rating
Voltage:
12V DC
IP55
Frequency:
-
TEFC Cooling
Poles:
-
Aluminum Endshields
Output Horsepower:
2 HP
Kilowatt:
1.5 KW
Rotations per Minute:
1700 RPM
Torque:
3 lb. ft.
Locked Rotor Torque:
120%
Break Down Torque:
250%
L.R. Time:
4s
Inertia:
0.02254 sq. ft. lb.
Motor Frame:
NEMA 56H
Full Load Amps:
9.8 FLA
No Load Current:
4.4A
Locked Rotor Current (II/In):
6.5
Efficiency:
78.1 (100%), 77 (75%), 74 (50%)
Power Factor:
0.85 (100%), 0.80 (75%), 0.70 (50%)
Service Factor:
1
Insulation:
Class F
Noise:
-
Special Orders- Requirements
Ambient Temperature Rating:
50°C
Contact us for special requirements
Materials:
Aluminum
Phone:
1-214-616-6180
Mount:
Foot Mount
Toll Free:
1(647) 254-9757
Wiring:
24" (+2/-0) Leads
Fax:
1-903-498-3364
Color:
Black
E-mail:
Contact info@purilite.ca
Scroll Down to Purchase
