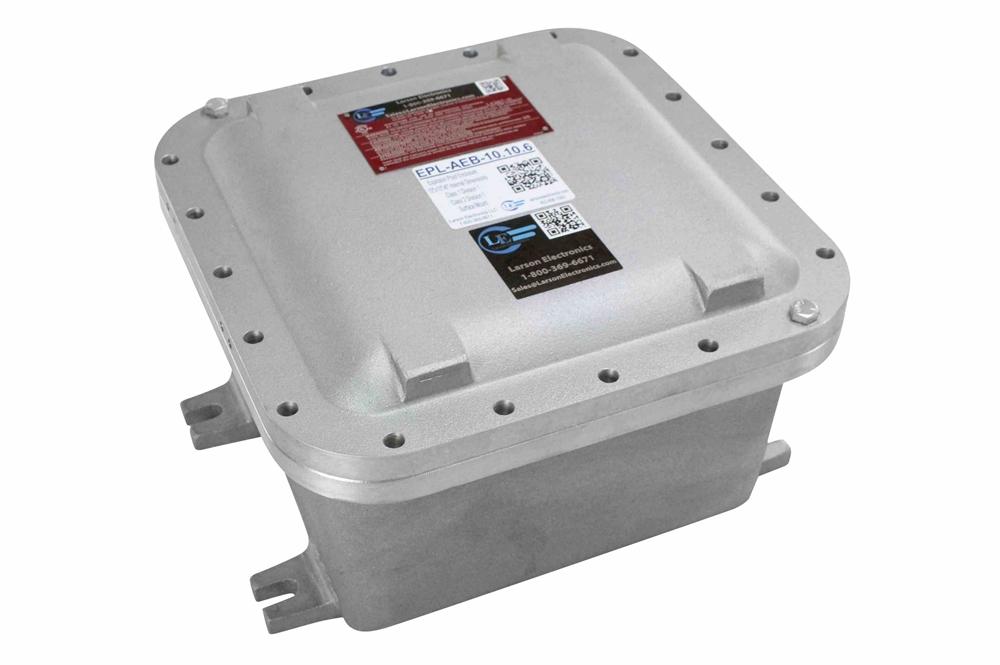

Explosion Proof Fan Controller - Class I, II, III - 120V to 24V Relays - Operates Two Fans - (2) 3/4" Hubs
Explosion Proof Fan Controller - Class I, II, III - 120V to 24V Relays - Operates Two Fans - (2) 3/4" Hubs
EXP-SNR-FKR-2X-120V-2X0.75 Explosion Proof Controller | Features/Ratings |
Listing: NRTL Listed for United States, Canada | Class I, Divisions 1 & 2, Groups B, C, D |
Internal Dimensions: 6"L x 6"W x 4"H | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
External Dimensions: 10.32" x 10.32" x 6.09" | Class II, Divisions 1 & 2, Groups E, F, G |
Pan Dimensions: 5"L x 5"W | Class III, Divisions 1 & 2 |
Available Dimensions for Devices: 5.73"L x 5.73"W x 4.31"H | Type 3, 4, 4X |
Weight: - | Â |
Voltage: 120V | Â |
Control Circuit Voltage: 24V | Â |
Relays: 120V to 24V | Â |
Capacity: Operates Two Fans | Â |
Maximum Conduit Size: 2" NPT | See Drawing for Hub Placements |
Maximum Operators on Lid: 4 (2 rows of 2) | Â |
Total Hub Quantity: 2 | Â |
Lid (Top) Hubs: 0 | Â |
North Side Hubs: (1) 3/4" NPT | Â |
South Side Hubs: (1) 3/4" NPT | Â |
East Side Hubs: 0 | Â |
West Side Hubs: 0 | Â |
Bottom (Back/Base) Hubs: 0 | Â |
Conduit: Operator Provided | Â |
Operating Window: N/A | Â |
Hinges Included: No | Â |
Hinges Material: N/A | Â |
Internal Mounting Pan Included: Yes | Â |
Internal Mounting Pan Taps: (4) 3/8" NPT [four corners] | Â |
Internal Mounting Pan Material: Aluminum | Â |
Internal Mounting Pan Dimensions: 5"L x 5"W x 1/8"H | Â |
Internal Grounding Lug: N/A | Â |
Breather Plug: N/A | Â |
Drain Plug: N/A | Â |
Ambient Operating Temp Range:-30° C to +85°C |  |
Operating Temp Rating: T5/T6 Rated | Â |
Enclosure Material: Copper Free Cast Aluminum (less than 4/10 of 1%) | Â |
Hardware Material: Zinc Plated Steel | Â |
Enclosure Finish: Aluminum Lacquer Paint; custom available | Â |
Mounting: Surface Mount Legs | Â |
Mounting Leg Height: 0.19" | Â |
Mounting Dimensions (Horizontal) Height: N/A | |
Mounting Dimensions (Horizontal) Width: N/A | |
Mounting Dimensions (Vertical) Height: 4" Center to Center | Toll Free:Â 1-800-369-6671 |
Mounting Dimensions (Vertical) Width: 7.88" Center to Center | |
Shipping Weight: 53 lbs | |
Shipping Dimensions: 24"L x 24"W x 24"H | |
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
The Larson Electronics EXP-SNR-FKR-2X-120V-2X0.75Â Explosion Proof Fan Controller facilitates sensor and device connections in Class I and II, Divisions 1 and 2 rated combustible sites. This unit features 120V to 24V relays and can operate two fans. Equipped with two 3/4" NPT hubs, this explosion proof device is designed for the EXP-SNR sensor and EPF fan series.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES*
The EXP-SNR-FKR-2X-120V-2X0.75Â explosion proof controller is made of cast aluminum, equipped with steel bolts and includes a weatherproof gasket for a NEMA 3R / NEMA 4 protection rating. This unit contains 120V to 24V relays for operating two fans. Designed for the EXP-SNR sensor series and EPF fan series, the explosion proof device automatically activates connected fans or other 120V downstream devices when the connected sensor detects abnormal levels or conditions in the area. This unit is compatible with 24V control circuits.
Hubs: The EXP-SNR-FKR-2X-120V-2X0.75Â contains a total of two hubs on the enclosure. One 3/4" NPT hub is located on the north side of the enclosure and another 3/4" NPT hub is located on the south side.
|
