EXP-SNR-TG-EC-ITS-ALG-DF-LEL Hydrocarbon Gas Sensor | Features/Ratings |
Listing: NRTL Listed for United States and Canada | Class I, Divisions 1 & 2, Groups B, C, D |
Dimensions: 7.12" x 5.43" x 5.11" | HC Sensor |
Weight: 4 lbs | LCD Graphic Display |
Gas Type: Diesel Fuels and Heating Oils | Non-Intrusive Magnetic Operation |
Transmitter Type: Catalytic Bead for Combustible Gas | Internal Data Logger |
Voltage: 12V DC to 30V DC | Â |
Amps: 250mA @ 24V DC Maximum, 3-wire Mode | Â |
Sensor Holder: Integral Holder | Â |
Output: Analog | Â |
LEL Minimum Detection Range: 0-50% | Â |
LEL Maximum Range: 0-100% | Â |
Accuracy: Generally ±10% of Value |  |
Repeatability: ±1% |  |
Linearity: ±0.5% |  |
Zero Drift: Less than 2% Full Scale per Month, Non-cumulative | Â |
Span Drift: Dependent on Environment but Generally Less than 3% per Month | Â |
Alarms: (3) Concentrations Alarms (Caution, Warning, Alarm) Programmable for Setpoint, Hysteresis, Alarm Delay, and Manual or Automatic Reset; (1) Fault Alarm with Programmable Output and Relay Response | Â |
Alarm Relays: (3) SPDT, 5A @ 230V AC Resistive | Â |
Relay Coils: Normally Energized or De-energized, Programmable | Â |
Controls: Non-intrusive (4 Magnetic Switches on Front of Transmitter) | Â |
Serial Interface: HART 1200 Baud Modem Interface, Registered DDL File or Modbus 1200-600,14.4k,28.8k, RS232/RS485 or ASCII Text Output for Printing Data Log | Â |
Output Range: Scalable 4-20 mA | |
Operational Temp Range: -40º to +70ºC | |
Operational RH Range: 0-95% Non-condensing | Toll Free:Â 1-800-369-6671 |
Housing: Cast Aluminum | |
Mounting: Surface (2) 5/16"-D Openings | |
Hub Size: 3/4" NPT Threaded |

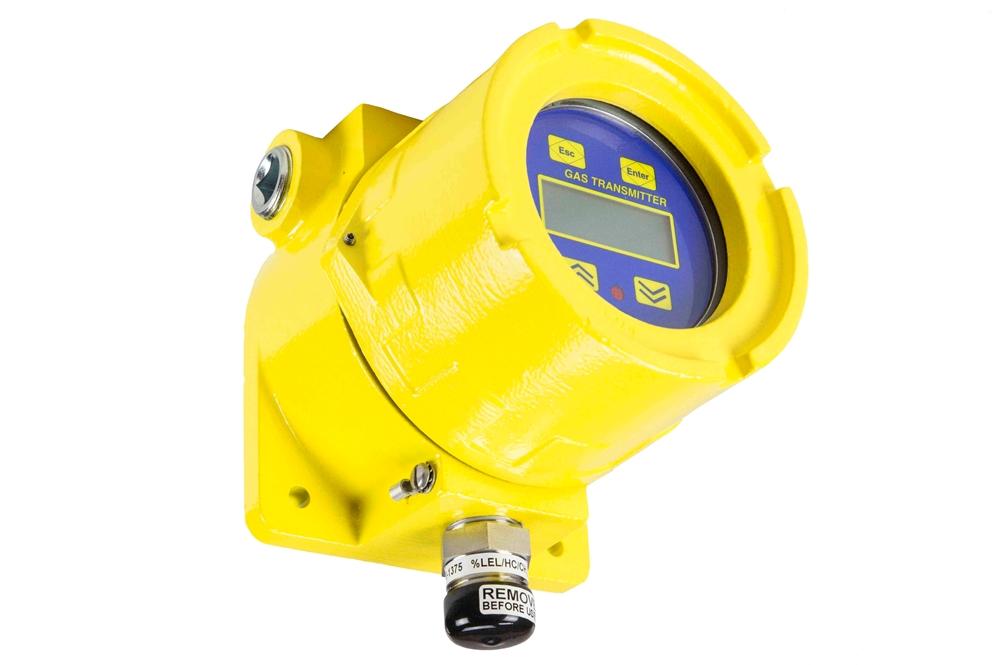

The Larson Electronics EXP-SNR-TG-EC-ITS-ALG-DF-LEL Hydrocarbon Gas Sensor offers quick and accurate detection of diesel fuels and heating oils in Class I, Divisions 1&2 rated combustible sites. This testing system features an easy to read LCD graphics display, internal data logger, alarms and many additional features that simplify installation, operation and maintenance. The explosion proof gas sensor is fitted with a hydrocarbon sensor that detects 0-50% LEL minimum range and 0-100% maximum range. Ideal for detecting diesel fuels and heating oils, the EXP-SNR-TG-EC-ITS-ALG-DF-LEL is protected by a cast aluminum housing. The EXP-SNR-TG-EC-ITS-ALG-DF-LEL combustible gas sensor is configured to detect diesel fuels and heating oils in hazardous locations. This explosion proof unit includes a catalytic bead transmitter, integral sensor holder and non-digital output. An LCD graphics display shows gas concentrations in large, easy to read numbers and also provides operators with alarm indication and menus to set up operating parameters. A backlight is available for use when 3-wire mode is used. This sensor also includes an internal data logger which stores measured gas values at intervals chosen by the user, which can be pulled up on the LCD screen at any point, or downloaded using an interface. This hydrocarbon sensor has non-intrusive operation, allowing operators to calibrate, view data, set up alarms and complete other tasks with a magnetic tool, eliminating the need to open the sensor€™s enclosure. All program settings are password protected. Also included with this sensor is a scalable 4-20 mA programmable output range, three internal alarm relays transmitter, and analog output set to user defined values for loop testing without needing to apply gas to the sensor. Designed to operate on 12V DC to 30V DC, the unit contains three SPDT alarm relays. The contacts are rated at 5A @ 230V AC, resistive load. During use, the sensor can detect combustible gas with 0-50% LEL minimum range and 0-100% maximum range. This device features a HART® 1200 baud modem interface, registered DDL file or Modbus ® 1200-600,14.4k,28.8k, RS232/RS485 or ASCII text output (for printing data log) serial interface. The EXP-SNR-TG-EC-ITS-ALG-DF-LEL is fitted with a hydrocarbon gas sensor, which plugs directly to the transmitter. This gas sensor is used to detect diesel fuel and heating oils, which can be calibrated by the user based on application. This detector contains a sensor, amplifier and memory module in one unit, allowing it to be calibrated independently and plugged into any detector for immediate use with no adjustments needed. Hubs: This explosion proof sensor contains a 3/4" NPT threaded opening at the bottom of the unit. Mounting: The EXP-SNR-TG-EC-ITS-ALG-DF-LEL can be secured on surfaces via two 5/16" mounting holes. |
