Explosion Proof Circuit Breaker - Class I, II, III - 3 Pole - 480V Max - 10A Rating - NEMA

LARSON ELECTRONICSSKU: PL3-EXPCB-3P-480V-10A
filler

Price:
Sale price$10,255.99

Description

Specifications / Additional Information
EXPCB-3P-480V-10A Industrial Circuit Breaker Ratings
Unit Type: Explosion Proof Circuit Breaker Class I, Divisions 1&2 Groups B,C,D
Dimensions: 18" x 11" x 9 1/8" Class I, Zones 1&2 Groups IIB+H2,IIA
Weight: 46 lbs Class II, Divisions 1&2 Groups E,F,G
Voltage: 480V Maximum Class III
Rated Amps: 10A NEMA 3,4,4X,7(B,C,D),9(E,F,G)
Configuration: 3-pole EHD Frame
Materials: Copper-free Aluminum
Hardware Materials: 316 Stainless Steel
Finish: Aluminum Lacquer Paint
Mounting: Surface Mount Toll Free: 1-800-369-6671
Hub Sizes: (2) 1.5", (2) 0.75", (2) 0.5" NPT
Hub Locations: (3) Top, (3) Bottom
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

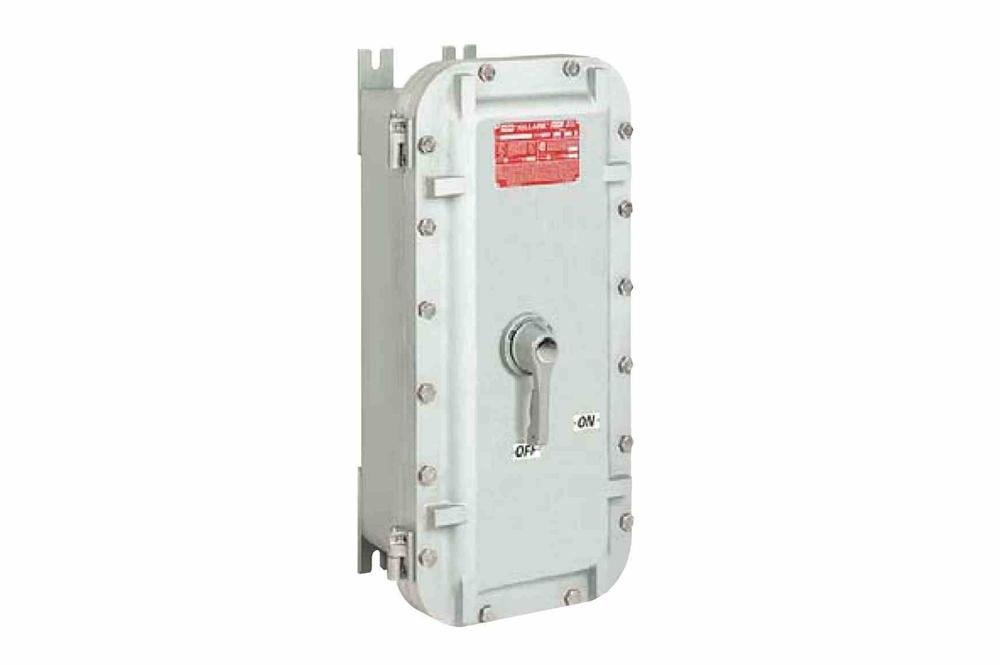

The Larson Electronics EXPCB-3P-480V-10A Explosion Proof Circuit Breaker provides operators with a Class I, II and III copper-free aluminum enclosure that provides over-current and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliance and motor circuits. This 3-pole unit features an EHD frame and operates on 480V AC. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EXPCB-3P-480V-10A is an explosion proof circuit breaker for combustible work sites. This 3-pole unit is rated 10 amps and offers compatibility with 480V AC (maximum). An external on/off breaker handle can be locked into the "off" position with room for up to three padlocks for superior security. The explosion proof circuit breaker is made of copper-free aluminum with stainless steel hardware and finished in aluminum lacquer paint. Hub sizes include (2) 1.5", (2) 0.75" and (2) 0.5" NPT, which are located at the top and bottom of the NEMA-rated circuit breaker. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
