4.0MP Explosion Proof Network IP Camera for Cannabis Extraction - 20FPS - IP66, N4X - BHO/THC/CBD

LARSON ELECTRONICSSKU: PL3-EXPCMR-CER-IP-POE-4MP-IR
filler

Price:
Sale price$4,979.99

Description

Specifications / Additional Information
EXPCMR-CER-IP-POE-4MP-IR Network Explosion Proof Camera for Cannabis Extraction Ratings / Features
Listing: United States, Canada, European Union, International Listed for United States & Canada
Dimensions: 8"L x 6"W x 13"H Class I, Divisions 1 & 2, Groups B, C, D
Camera Weight: 6 lbs Class I, Zones 1 & 2, Groups IIB+H2, IIA
Total Watts: 5W (Max) Class II, Divisions 1 & 2, Groups E, F, G
Power Source: PoE (802.3af) Class III, Divisions 1 & 2
Image Sensor: 1/3" Progressive Scan CMOS sensor NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
Signal System: NTSC NRTL Listed to UL 508A
Video Resolution: 4.0MP (2688*1520) NRTL Listed to UL 1203
Frame Rate: Up to 20fps @ 2688*1520 resolution NRTL Listed to CSA C22.2 No 14, 25, 30
Compression Type: H.264, H.264 OVC, MJPEG, H.265, H.265+ Main stream and two sub streams
Bit Rate: 32Kbps - 16Mbps Capable of programming unique settings per stream
Focal Length: 4mm ONVIF Profile S Certified
Max Field of View: 83° WDR (wide dynamic range) for auto adjusting
Shutter Speed: 1/3s to 1/10,000s
Min. Illumination: 0.01 lux (Color) / 0 lux (w/ External IR)
Infrared Light: NA - Requires Customer-provided External Infrared Light
Day/Night: True D/N w/Mechanical Cut Filter
Digital Noise Reduction: 3D DNR
Ethernet Interface: RJ45
Ethernet Speed: 10/100
Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more
Remote Configuration: Yes Special Orders/Requirements
Ambient Temperature Range: -22°F to +140°F
Housing Materials: Copper-free Aluminum Alloy Toll Free: 1-800-369-6671
Lens Material: 3/8" Thick Tempered Glass Intl: 1-214-616-6180
Mounting: Adjustable rear-mounted handle/bracket
Wiring Hub: (2) 3/4" NPT
' Product Overview '

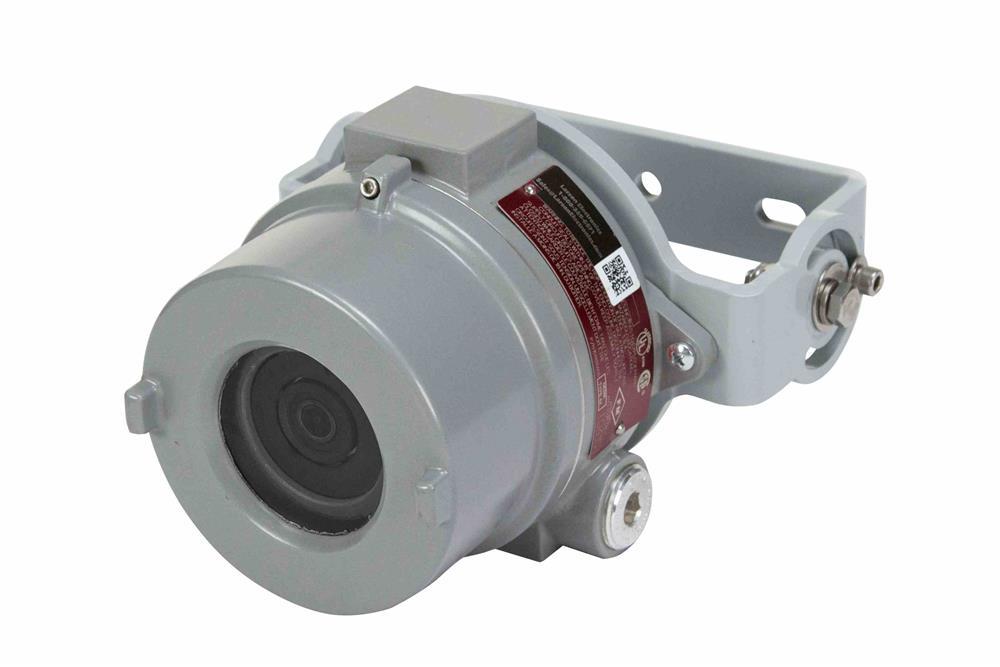

The EXPCMR-CER-IP-POE-4MP-IR Network Explosion Proof Camera from Larson Electronics is a remote inspection camera specifically designed for observation in butane THC extraction rooms and hemp processing facilities. This explosion proof, dust/ignition proof, weather proof and tamper resistant camera provides the operator with a live feed inside mobile extraction labs, as well as indoor cannabis growing and processing sites. Operated remotely from a centralized control room, this remote inspection camera saves both time and money as well as contributing to workplace safety. Camera Features: The EXPCMR-CER-IP-POE-4MP-IR Network Explosion Proof Camera is powerful solution for cannabis extraction facilities requiring real-time monitoring and cutting-edge security. This compact unit features a built-in 1/3" progressive-scan CMOS image sensor that delivers up to 4.0MP resolution at 20 fps. The wide angle fixed lens with 83° field of view is designed to cover large areas, including mobile labs and temporary extraction rooms. This explosion proof camera provides a crisp and clear image for everything within the 83° focal area, allowing businesses and persons with access (local/state officials, operation managers, inspectors, etc.) to view the workplace in real-time. Total distance is dependent on mounting height and angle. The explosion proof unit does not come with built-in infrared lights. To use infrared-light related features, such as capturing images in dark and low-light conditions, an external infrared light must be used with the explosion proof device. For 12-24V DC applications, we recommend the Larson Electronics 12-watt explosion surface-mount infrared LED light (). As an alternative, we also offer the for 120-240V AC applications. This remote inspection camera utilizes 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut Filter Removal to produce clear images in variable and low light conditions. The camera automatically switches from full color to IR mode when visible light falls below a certain level. Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well. Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 - 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 – 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 – 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant. Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location and non-classified NVRs for BHO/THC/CBD extraction facilities, which work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each stream can be configured to different resolutions and frame rates. Mounting: The EXPCMR-CER-IP-POE-4MP-IR Network Explosion Proof Camera features an ATEX/IECEx certified copper-free aluminum alloy body and weighs a total of 6 pounds. The camera includes an adjustable rear-mounted polished stainless steel mounting bracket/handle. Additional accessory pole mounts and magnetic mounts are available separately. Applications: Hemp processing, cannabis extraction rooms, legal cannabis grow rooms, hemp greenhouses, butane-based extraction facilities, THC, BHO, CBD, medicinal cannabis compliance, security, monitoring, labs, research and more.
