Explosion Proof Network IP Camera w/ Built-in LED Light - 8.0MP, 20FPS - PoE

LARSON ELECTRONICSSKU: PL3-EXPCMR-IP-POE-8MP-102D-1XLE1-1227
filler

Price:
Sale price$8,521.99

Description

Specifications / Additional Information
EXPCMR-IP-POE-8MP-102D-1XLE1-1227 Network Explosion Proof Camera w/ LED Light Ratings / Features
Listing: United States and Canada NRTL Listed for United States & Canada
Dimensions: - Class I, Divisions 1 & 2, Groups B, C, D
Weight: 12 lb Class I, Zones 1 & 2, Groups IIB+H2, IIA
Camera Watts: 5W (Max) Class II, Divisions 1 & 2, Groups E, F, G
LED Light Watts: 12W Class III, Divisions 1 & 2
Camera Power Source: PoE (802.3af) NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G)
LED Light Voltage: 120/240 V AC NRTL Listed to UL 508A
Image Sensor: 1/3" Progressive Scan CMOS Sensor NRTL Listed to UL 1203
Signal System: NTSC NRTL Listed to CSA C22.2 No 14, 25, 30
Video Resolution: 4K UHD 8.0MP (3840 x 2160) Main steam and two sub streams
Frame Rate: Up to 20fps @ 3840 x 2160 Resolution Capable of programming unique settings per stream
Compression Type: H.265+, H.265, H.264 OVC, H.264, MJPEG ONVIF Profile S Certified
Bit Rate: 32Kbps - 16Mbps WDR (wide dynamic range) for auto adjusting
Focal Length: 2.8mm
Max Field of View: 102°
Shutter Speed: 1/3s to 1/10,000s
Min. Illumination: 0.01 lux (Color)
LED Beam Pattern: 40° Flood or 10° Spot
Spot Beam: 800'L x 140'W
Flood Beam: 300'L x 225'W
Day/Night: True D/N w/Mechanical Cut Filter
Digital Noise Reduction: 3D DNR
Ethernet Interface: RJ45
Ethernet Speed: 10/100
Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more
Remote Configuration: Yes Special Orders - Requirements
Ambient Temperature Range: -22°F to +140°F
Housing Materials: Copper-free Aluminum Alloy Toll Free: 1-800-369-6671
Lens Material: 3/8" Thick Tempered Glass Intl: 1-214-616-6180
Mounting: Adjustable Rear-mounted Handle/Bracket
Wiring Hub: (2) 3/4" NPT
' Product Overview '

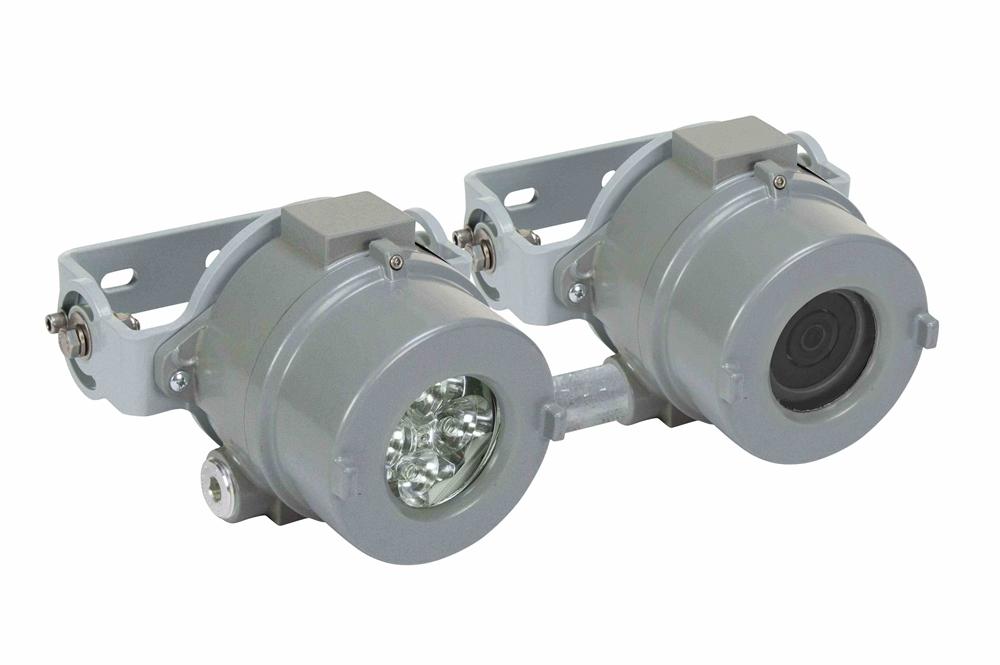

The EXPCMR-IP-POE-8MP-102D-1XLE1-1227 Network Explosion Proof Camera w/ Built-in LED Light from Larson Electronics is a remote inspection camera specifically designed for observation in hazardous locations. This explosion proof, dust/ignition proof, weatherproof and tamper resistant camera provides the operator with a live feed from inside tanks, reactors, vessels or other hazardous locations. Operated remotely from a centralized control room, this remote inspection camera saves both time and money as well as contributing to workplace safety. Camera Features: The EXPCMR-IP-POE-8MP-IR-102D Network Explosion Proof Camera features a built-in 1/2.5" progressive-scan CMOS image sensor that delivers up to 4K 8.0MP resolution at 20 fps. The wide angle fixed lens with 102° field of view is designed to cover large areas and work spaces. This explosion proof camera provides a crisp and clear image for everything within the 102° focal area. Total distance is dependent on mounting height and angle. The monitoring device comes with a built-in LED light to support image capturing in low-light conditions and after sunset. This component produces 1,320 lumens of high-intensity LED light for illumination within hazardous areas and potentially explosive work environments. The low voltage unit is available in two lighting configurations: spot or flood. The spot configuration features a 10° beam that measures 800'L and 140' W. The flood configuration throws a 40° beam that measures 300'L and 225'W. With a high color-temperature rating of 6,000K the handheld LED fixture offers improved detection of dangerous elements, obstructions and abnormal conditions in the surrounding area. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This remote inspection camera utilizes 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut Filter Removal to produce clear images in variable and low light conditions. The camera automatically switches from full color to IR mode when visible light falls below a certain level. Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well. Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 - 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 – 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 – 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant. Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location, and non-classified NVR`s to work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each steam can be configured to different resolutions and frame rates. Mounting: The EXPCMR-IP-POE-8MP-102D-1XLE1-1227 Network Explosion Proof Camera features an ATEX/IECEx certified copper-free aluminum alloy body and weighs a total of 12 pounds. The camera and infrared light includes an adjustable rear-mounted polished stainless steel mounting bracket/handle. Additional accessory pole mounts and magnetic mounts are available separately. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.
