Explosion Proof Outdoor Security Camera - 120V - Wireless Video Output - 128GB Memory


Sale price$16,805.99


Specifications / Additional Information
EXPCMR-WIP-OZ-2MP-IM.128G-M-1523 Explosion Proof Camera w/ Wireless Video Output Ratings/Approvals
Listing: NRTL Listed for United States, Canada and International ATEX/IECEx Rated Class I, Divisions 1 & 2 Groups B,C,D
Unit Type: Explosion Proof Wireless Camera Class I, Zones 1 & 2 Groups IIB+H2, IIA
Dimensions: 18"W x 8"D x 6"H Class II, Divisions 1 & 2 Groups E,F,G
Weight: - Class III, Divisions 1 & 2
Voltage: 120V AC IECEx db IIC Gb
Watts: 5W IECEx tb IIC Db IP66
Image Sensor:  CMOS ATEX Ex II 2 G / D
Display Resolution: 1920 x 1080 NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Video Resolutions: 1080p (1920 x 1080), 720p (1280 x 720), VGA (640 x 480), QVGA (320 x 240) 30` Max Distance
Lens: 2.8-4mm Focal Length
Angle of View: Horizontal: 106°, Diagonal: 118° @ f = 2.8mm; Horizontal: 70°, Diagonal: 78° @ f = 4mm
Video Framerate: 30fps (60Hz), 25fps (50Hz), Downward Adjustable
Video Output: Wireless
Wireless Standard: IEEE802.11b / g / n
Data Rate: IEEE802.11b - 11Mbps (Max); IEEE802.11g - 54Mbps (Max); IEEE802.11n - 150Mbps (Max)
Frequency Bands: 2412 - 2472 MHz
Remote Access: Supports P2P & DDNS
Wireless Security: Supports WEP, WPA & WPA2
Maximum Power: 18dBm
Internal Memory: 128 GB Solid State
Memory Recording Time: 16 Hours @ 1080p Resolution or 24 Hours @ 720p Resolution Toll Free: 1-800-369-6671
Housing Material: Aluminum Intl: 1-214-616-6180
Mounting: Magnetic Mount
Cord: -
' Product Overview '

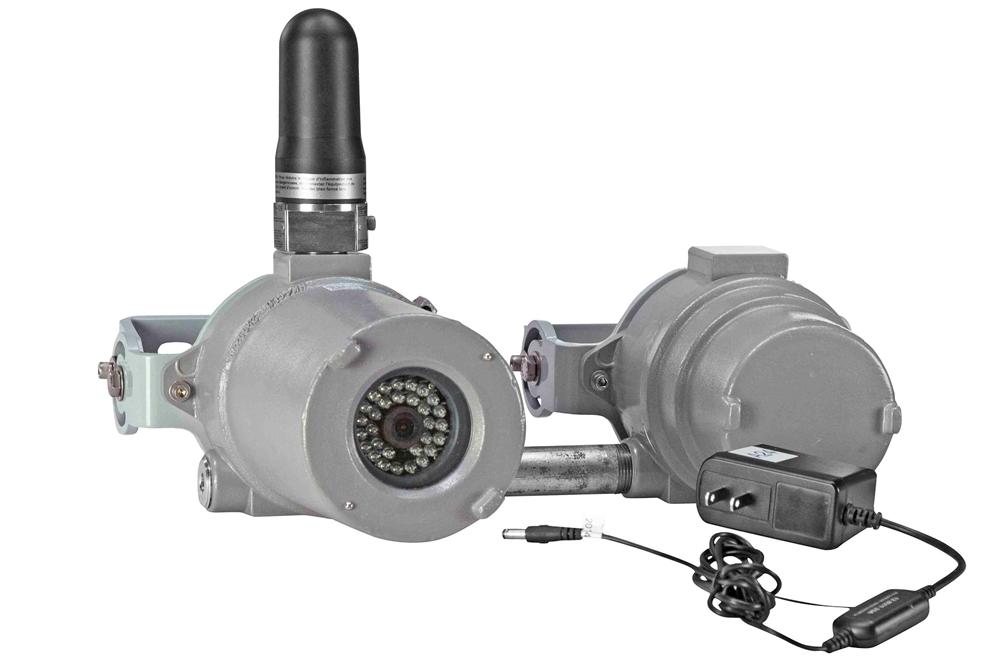

The EXPCMR-WIP-OZ-2MP-IM.128G-M-1523 from Larson Electronics is an Explosion Proof Outdoor Security Camera for flammable work sites, harsh environments and outdoor locations. This IP66-rated device offers wireless video output and connection to other devices. Capable of producing clear, 1080p HD images, the 5-watt unit supports magnetic mounting, which does not require tools, screws or additional accessories. 128 GB internal solid state memory allows the camera to record up to 16 hours of footage at 1080p or 24 hours at 720p. Camera Features: The EXPCMR-WIP-OZ-2MP-IM.128G-M-1523 security camera provides operators in hazardous areas with crisp 1080p HD images. Equipped with a 2 MP lens, up to 6x digital zoom is possible with the fixed-focus device. A cutting-edge chipset facilitates image compression and video processing with superior quality. Video output and connection to other devices is wireless (no cords). An example of such device is our , which operators can use to view images transmitted wirelessly from the explosion proof security camera. 128 GB of internal solid state memory allows this camera to record up to 16 hours of footage in 1080p resolution or 24 hours at 20p resolution. Lower resolutions will allow for longer recording times. Durability: The EXPCMR-WIP-OZ-2MP-IM.128G-M-1523 is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining lightweight and easy to use. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The explosion proof security device is designed to perform under harsh and rugged conditions. This IP66 rated waterproof unit resists the corrosive effects of weather, dust, dirt, and humidity. This Class I Divisions 1 & 2, Class II Divisions 1 & 2, Class III Divisions 1 & 2 rated camera provides property and product security while protecting operators with its safe and reliable explosion proof and weatherproof design. Security & Remote Access: The EXPCMR-WIP-OZ-2MP-IM.128G-M-1523 supports several forms of security. The supported forms include WEP Encryption, WPA Encryption and WPA2 Encryption. This explosion proof outdoor security camera also features remote access capability. It supports both P2P and DDNS remote access. Wi-Fi: The EXPCMR-WIP-OZ-2MP-IM.128G-M-1523 is Wi-Fi compliant with wireless standards IEEE 802.11 b/g/n. On IEEE802.11b, this camera transfers data at a maximum rate of 15Mbps. On IEEE802.11g, the max data transfer rate is 54Mbps. The max data transfer rate on IEEE802.11n is 150Mbps. Wireless Network: The explosion proof camera allows operators to create their own 2.4 Ghz and 5 Ghz wireless network. This feature makes networks for cameras easier to setup in outdoor sites. A QR code on the unit can be scanned for seamless wireless network configuration. The network facilitates the connection of various devices. During use, footage is stored via internal memory. Voltage: This unit operates on 120V AC. Mounting: The EXPCMR-WIP-OZ-2MP-IM.128G-M-1523 can be mounted on magnetic surfaces via a magnetic mounting system on the explosion proof camera. This seamless feature allows operators with gloved hands to position the unit instantly, without tools, screws or additional accessories. Applications: Explosion proof forklifts, tank cleaning, tank/reactor monitoring, remote observation of external facilities, offshore and land based rigs, indoor and outdoor security, commercial buildings and more.
