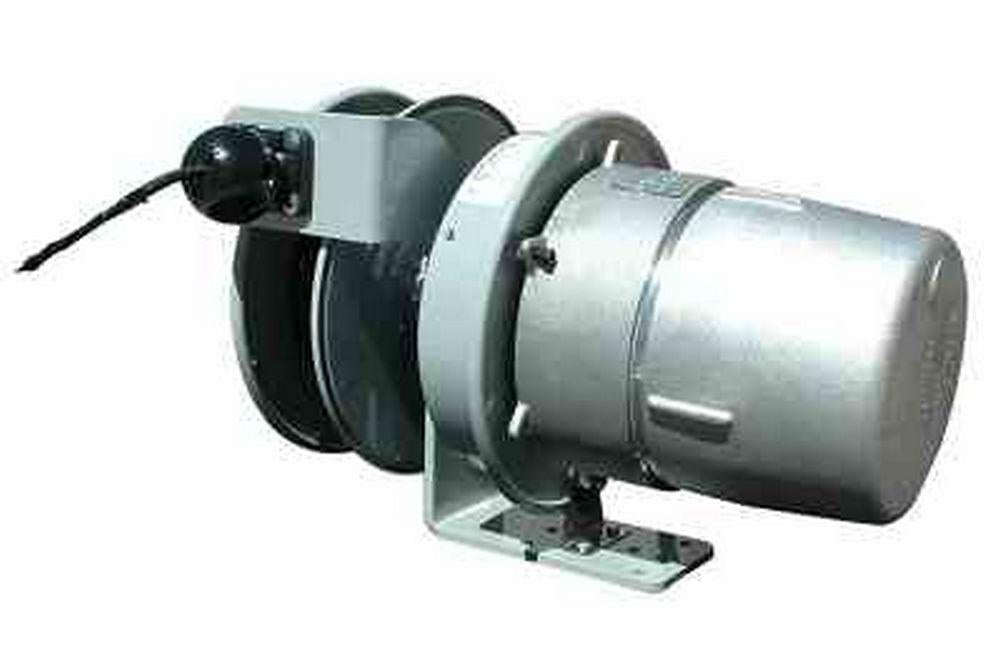

EXPCRL-50 - Explosion Proof Cord Reel with 50 Foot of 16/3 Cord

LARSON ELECTRONICSSKU: PL3-EXPCRL-50
filler

Price:
Sale price$7,853.99

Description

Specifications / Additional Information
EXPCRL-50-HR Explosion Proof Cord Reel Safety Rating
Standard Features: Class I Division 1, Groups C&D
16/3 SOOW cable (on all reels) Class II Division 1, Groups E,F, & G
Spring activated ratchet Class III Division 1
4-roller adjustable cable guide and ball Class 1 Zone 1: AEx d IIB, EX d IIB
Built to UL 508 table 36.1/NEC Standards Conforms to NEMA 9 and NEMA 4 (IP56) standards
Indoor or Outdoor Use
35 amp, 1-4 conductors 600 Volt, 5-12 conductors 250 Volt
Rugged fabricated steel and cast aluminum slip ring enclosure
Gray epoxy finish on all steel parts Toll Free: 1-800-369-6671
6` feeder cord on fixed end Intl: 1-214-616-6180
Fax: 1-903-498-3364
This fixture is being remanufactured with cord reel under file number E193373. E-mail:
' Product Overview '
Made in the USA The EXPCRL-50-HR is an Explosion Proof Reel providing Class I, Division 1 UL rating, as well as a Class II, Division II. This reel is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The unit includes 50 feet of SOOW Cord with a 14" flange diameter and is ready to install a portable explosion proof fixture to the end. These reels are built with modular components, coupled with a spark proof ratchet and hazardous location slip ring housing. Larson Electronics offers a wide variety of lighting solutions to accommodate this reel. For more information on these lights, please contact us at 1-800-367-6671.

Click to Enlarge Click to Enlarge Click to Enlarge
