Explosion Proof Circuit Breaker - 3 Pole - 480V Max - 250A Rating - C1D1&2 - C2D1&2 - Class 3

LARSON ELECTRONICSSKU: PL3-EXPDCS-3P-600V-250A-M1
filler

Price:
Sale price$33,822.00

Description

Specifications / Additional Information
EXPDCS-3P-600V-250A-M1 Explosion Proof 3 Pole Circuit Breaker Ratings/Approvals
Type: 3-Pole Circuit Breaker Class I Divisions 1 & 2 Groups B, C & D
Dimensions: 41.25"H x 17.25"W x 13.4"D Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: 350 lb Class II, Divisions 1 & 2, Groups E, F & G
Max Voltage: 480 V Class III, Divisions 1 & 2
Amp Rating: 250 Amps NEMA 3, 4, 4x, 7(B,C,D), 9(E,F,G)
Poles: 3-Pole NRTL Certified to UL 698, UL 886, UL 1203
Conduit Openings: (1) 3" NPT Hub & (1) 1/2" NPT Hub on Top and Bottom NRTL Certified to C22.2 NO. 30-M1986

  Fax: 1-903-498-3364
' Product Overview '

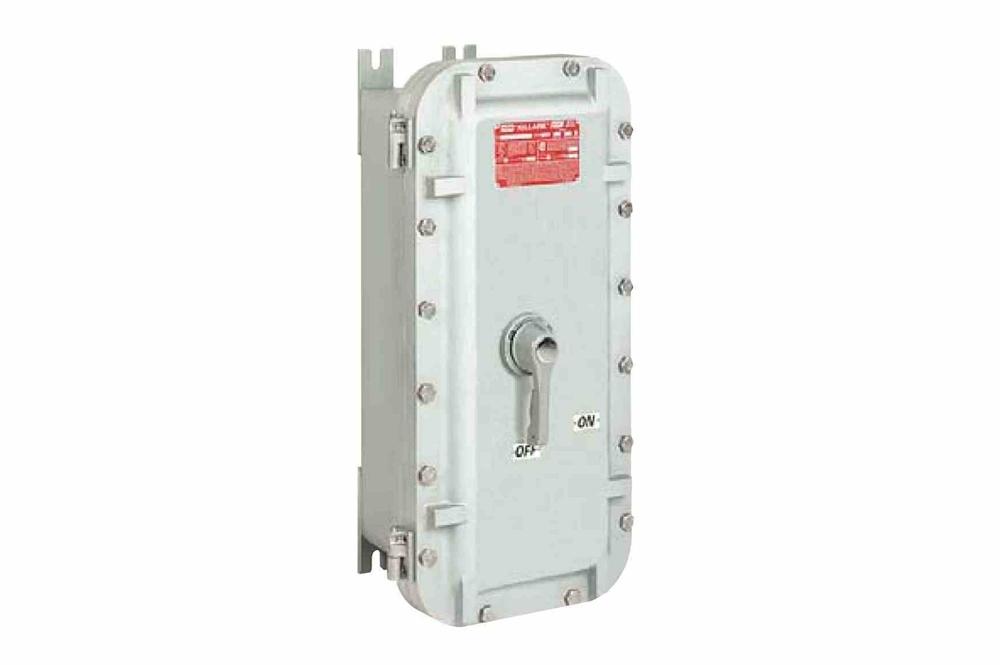

The EXPDCS-3P-600V-250A-M1 from Larson Electronics is an Explosion Proof 3 Pole Circuit Breaker that is rated for Class I Divisions 1 & 2 Groups B, C & D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F & G, Class III, Divisions 1 & 2 hazardous areas. The EXPDCS-3P-600V-250A-M1 is constructed from copper free cast aluminum, has a max voltage of 480V, an amp rating of 250 amps and is NEMA 3, 4, 4x, 7(B,C,D), 9(E,F,G) rated. This lightweight, corrosion resistant circuit breaker from Larson Electronics features robust construction from durable materials including cast aluminum and stainless steel hardware. This explosion proof circuit breaker features ductile mounting lugs that are able to adjust to irregular mounting surfaces without any damage to the circuit breaker itself and the hinge is located on the left hand side of the enclosure.
