|EXPSG-LVLED-10W-IDG LED Compact Light||Approvals|
|Listing: United States & Canada||Class I, Division 1 & 2, Groups C and D|
|Lamp Type: Cree LED||UL 1571 Approved for Wet Locations|
|Total Watts: 10||40°C Ambient Operating Temp|
|Beam: 10° Spot, 20° Wide Spot,40° Medium Flood or 60° Flood|
|Voltage: 9-46 Volts DC - 12/24 VDC Suitable|
|Amps: 1/4 on 12 VDC|
|Weight: 7 Lbs|
|Dimensions: 8.609"-L x 8.665"-W x 11"-H Lbs|
|Mounting: Aluminum Brackets|
|Wiring: Terminal Block with Side Entrance Cover||Toll Free: 1-800-369-6671|
|Operating Temp Range: 40°C ambient||Intl: 1-214-616-6180|
|LED Lamp Life: 50,000 Hours||Fax: 1-903-498-3364|
|LED Output Color: 6000K||E-mail:|

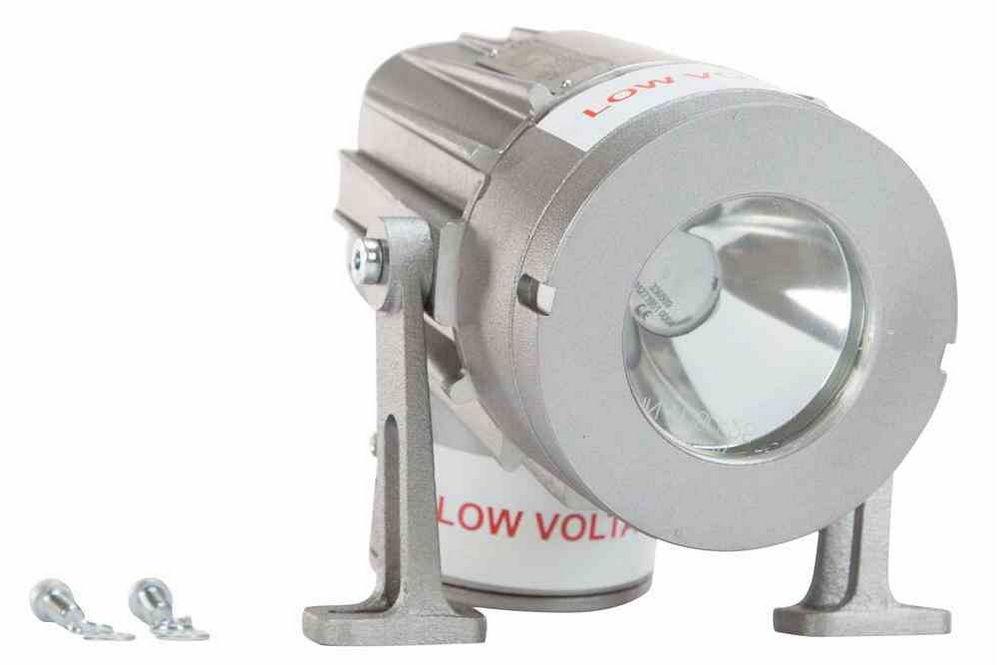

|Made in USA The EXPSG-LVLED-10W-IDG Explosion Proof LED Light is Class I, Division 1 & 2, Groups C and D approved and rated for use in wet environments. The waterproof construction, bright white output, and long lamp life of this LED fixture provides operators with high output and low maintenance operation, making this low voltage LED light an excellent upgrade from shorter lived incandescent glass lamps. The EXPSG-LVLED-10W-IDG Explosion Proof LED Light is compact and powerful. This unit is equipped with a low voltage 10 watt LED lamp assembly that runs cooler and lasts far longer than traditional incandescent lamps, and produces high light output while operating on 9 to 46 VDC low voltage current. This unit is UL 1571 approved for wet locations and ideal for use in small spaces within hazardous locations. The EXPSG-LVLED-10W-IDG is excellent for specific area lighting such as instruments, control panels, valve manifolds, walkways, etc.|
The EXPSG-LVLED-10W-IDG is an excellent lighting solution for specific area lighting such as instruments, control panels, valve manifolds, walkways, etc. These sturdy lights are constructed of corrosion-resistant die cast aluminum alloy and are moisture-proof as well as explosion-proof (hazardous locations) so they are equally well suited for use in demanding installations indoors and out. Both spot and flood lamp configurations are available for particular applications.
The EPL-SMLED-20W LED light is equipped with a high output 10 watt LED emitter that produces 860 lumens of bright light while drawing only 10 watts @1/4 amp from a 12 volt electrical system. A single CREE XLamp MC-E® 10 watt LED producing 860 lumens is combined with high purity optics to produce a 40 degree medium or 60 degree floodlight beam 70`L x 65`W that is ideal for illuminating a wider area around the fixture. We also offer an optional 10 degree wide or 20 degree spread spot beam configuration that produces a light beam approximately 280€™ long by 60€™ in width.
The LED lamp in this light offers greater output and longer life than halogen glass lamps, which improves work area visibility and reduces the need for maintenance and bulb replacements. This LED lamp has a 50,000 hour operational life, and produces as much light as a 50 watt halogen lamp while running far cooler and using only a fraction as much electrical power. This lamp is designed for low voltage operation and can be run from standard 12 or 24 VDC current without the need for additional transformers or hardware. This LED glass light is approved Class I, Division 1 & 2, Groups C and D and UL 1571 approved for wet areas, making it well suited to industrial locations where water resistance and explosion proof protection is mandatory.
