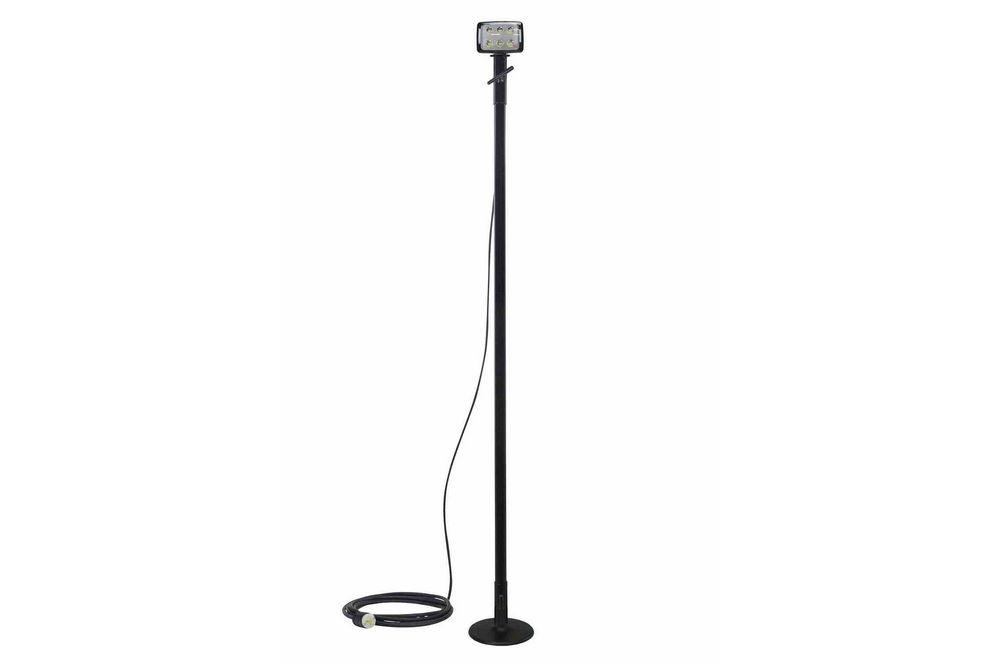

The FPM-60-LED6W-CB from Larson Electronics is a pole-mounted, high-output LED light source capable of delivering 1,162 lumens of lighting power while drawing only 6 total watts. A 60" tall pole with circular base mount makes the FPM-60-LED6W-CB a versatile and effective source of light for a wide variety of different needs and work areas. The included 15` 16/3 SOOW cord is chemical resistant and offers operators plenty of room for manueverability around the work site.
Light Features: The light head on this pole-mounted LED light features six 1W LEDs that combine to produce 1,162 lumens while requiring a very low energy draw. The beam from this compact LED fixture will illuminate an area nearly twice the distance as a standard 50W halogen flood light, but is 30% narrower than a standard halogen floodlight. This LED pole-mounted light is designed to withstand demanding conditions and is waterproof, vapor proof, and built to resist the damaging effects of an outdoor environment.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Wiring/Plug:This pole mounted LED flood lighting system is equipped with 15 feett of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Mounting:The FPM-60-LED6W-CB comes mounted on an aluminum pole that features a circular base for free-standing operation and easy transportation to where light is most needed. The aluminum pole is covered in two-part black paint which provides durability and it measures 60" tall. The pole has a 1" outside diameter and is 1/8" thick. The light head can be removed by loosening a t-handle near the top of the pole for transportation and storage purposes.
Applications:Warehouses, outdoor work areas, general area illumination, situations that call for easy to move and quick installation and removal of a bright light source.
|Click Photos to Enlarge
|5-15 Straight Blade Plug
15 Amp / 125V Rated
|L5-15 Twist Lock Plug
15 Amp / 125V Rated
|L6-15 Twist Lock Plug
15 Amp / 250V Rated
|UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
|Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
|Flying Leads / Pigtail Wires
|High Quality Features
|Superior LED Benefits
1. Low power consumption.
2. Instant on/off operation.
3. Fixture constructed of waterproof polycarbonate.
4. Superior color rendering compared to HPS, LPS, MH.
5. Retains 70% lumen output after 100,000 operating hours.
6. Two-part black painted aluminum pole.
7. Mounted on aluminum pole with circular base
8. Low profile - Light weight
9. 1,162 Lumen output from only 6 watts
1. 100,000+ hour lifespan.
2. Can SAVE 50% or more on energy.
3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs.
4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration)
5. 100% recyclable.
6. No toxins-lead, mercury.
7. No UV light, infrared radiation or CO2 emissions.
8. Qualifies buildings for LED and other sustainable business certifications.
9. Bright, even light maintains consistent color over time.
10. Instant on/off - No flickering, delays or buzzing.
11. Very good color rendering.
12. Vibration/impact resistant.
13. Significantly cooler operation.
14. Less frequent outages, higher output improves workplace safety.
