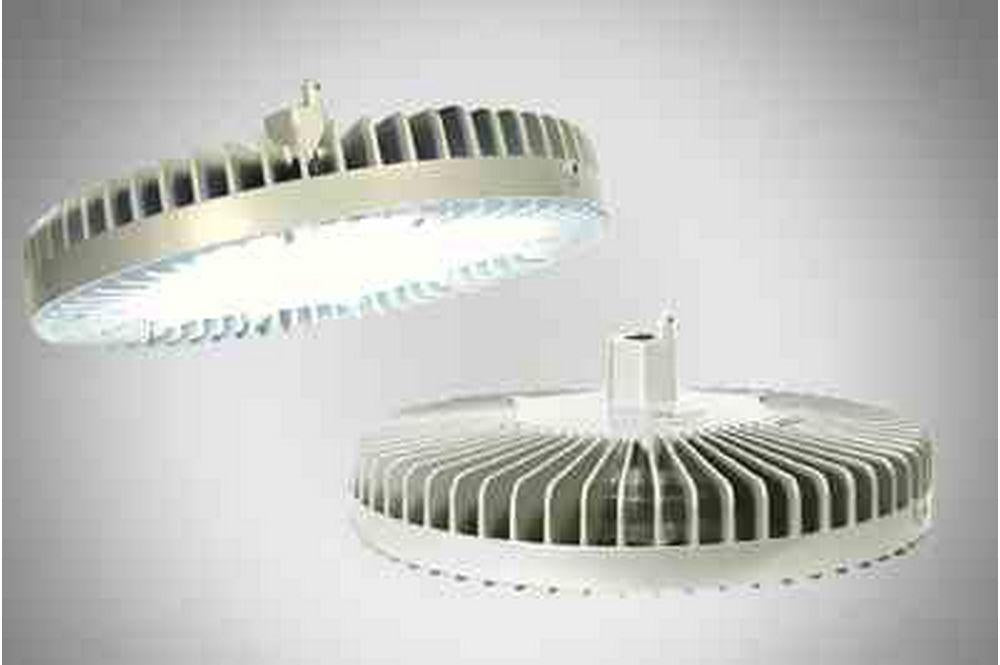

General Area-150 Watt High Bay LED Light Fixture 11,672 Lumens


Sale price$5,641.99


Specifications / Additional Information
GAL-HB-150  High Bay U.L Ratings
Lamp Type: LED UL1598 Dry Location
Dimensions: 16" Diameter,  3" Thickness
Total Watts: 150W
Lumens: 11,675
Voltage: Multi- 100-277 VAC, 50/60Hz
Lighting Configuration: Flood Pattern
Mounting: 3/4” NPT or 5/16”-18 x .75” NPT Thread
Weight: 17lbs
U.L. Listing: UL1598 Dry Location
Temp Rating: -40C to +65C Toll Free: 1-800-369-6671
Color Temp: 6000K, 70-CRI. Intl: 1-903-270-1187
Lumens Per Watt: 78 E-mail:
' Product Overview '
Made in the USA compliant The Larson Electronics GAL-HB-150W High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional general area luminaries. LED technology and compact design makes this lamp an excellent energy efficient upgrade option for bulky and high maintenance cost older fixtures.   This 150 watt LED high bay light fixture provides 11,672 lumens of high quality light while drawing only 150 watts and is ideal for use in warehouses, garages, production lines and anywhere an effective and efficient general area lighting solution is needed. An acrylic lens protects the LED light assembly and the copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. A light 17 lbs weight and low profile make this unit an attractive and energy efficient alternative to larger and heavier older light fixtures and requires less hardware to install.
Click Photo to Enlarge
This high bay LED light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED luminaries give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED light fixture produces 11,672 lumens of light with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The LEDs used in this light use less energy and create less heat which reduces energy costs by lowering the amount of electricity needed to both illuminate and cool large areas. The GAL-HB-150 offers several mounting options including ceiling mounting, pendant mounting, wall mounting and cable mounting. Mounting Option Notes: Pendant mounting option requires conduit be supplied by the installer. Wall mounting option comes with Junction Box, Fixture Hanger Cover and Rigid Pipe Sweep. Swivel bracket mounting option comes with Swivel Bracket, Bracket to fixture hardware, and Cable Connector. Ceiling mount option comes with Junction Box, Fixture Hanger Cover and 3" Rigid Pipe. Cable mount option comes with cable connector.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Multiple Mounting Options Including Pendant, Wall, Ceiling, Cable Mounting. 8. Low profile - Light weight 9. 11,672 Lumen output from only 150 watts   1. 60,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
