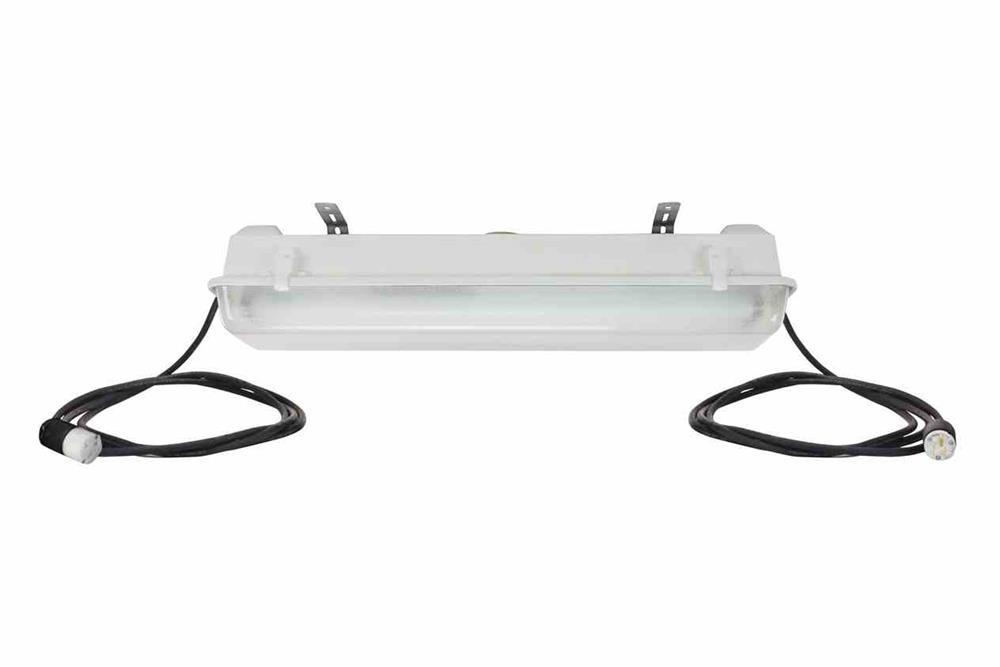

Industrial Emergency Fluorescent Fixture - (2) 2' Lamps - 6' 16/3 SOOW Cord Input/Output - 120V

LARSON ELECTRONICSSKU: PL3-GAU-EMG-24-2L-LED-2X6C-L5.15.WP
filler

Price:
Sale price$2,966.00

Description

Specifications / Additional Information
GAU-EMG-24-2L-LED-2X6C-L5.15.WP Ratings
UL Listing: United States & Canada UL 1598A Marine Type (Saltwater)
Lamp Type: Fluorescent UL 924 - Failsafe Backup Battery
Lamp Qty: 2 cUL Listed for Canada
Dimensions: W-8.25 " L-52 " H-7" Meets USCG Specs
Total Weight: 12.5 lbs Daisy Chain Capable
Single Lamp Weight: - Weatherproof Twist Lock Cord Cap
Voltage: 100-277V AC Emergency Test Switch
Frequency: -
Total Watts: 48W
Single Lamp Watt: 24W
Total Lumens: 4,000 lms
Single Lamp Lumens: 2,000 lms
Luminous Efficacy: 83 Lm/W
Expected Lamp Life: 20,000+ Hours
Color Temp: 5600K
Color Rendering Index: -
Lamp Type: F54-T5/850/HO
Lamp Base: -
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Flood Beam
Power Efficiency: -
Power Factor: -
Emergency Backup Duration: 90 Minutes
Emergency Backup Lumens: 900 lms
Amps: 0.4A @ 120V, 0.2A @ 240V, 0.17A @ 277V
Ambient Operating Temp Range: -40° C to +65°C
Temp Rating: T4C
Materials: Reinforced Polyester
Surface Mounting: (2) Flange Aluminum Brackets
Pendant Mounting: (2) 3/4" Threaded NPT Hubs on Either Side
Wiring: 6` 16/3 SOOW Cord Input/Output w/ Cord Caps
Cord Caps: L5-15P, L5-15C Weatherproof
' Product Overview '
The GAU-EMG-24-2L-LED-2X6C-L5.15.WP Industrial Fluorescent Light Fixture from Larson Electronics is designed to handle the rigors of wet and corrosive marine environments. This 48-watt fixture features two, 2` fluorescent lamps and comes equipped with battery backup, which provides 90 minutes of emergency runtime. Operators may access 6` of 16/3 SOOW cord with weatherproof cord caps at the input/output ends of the fixture for daisy chain configurations. The GAU-EMG-24-2L-LED-2X6C-L5.15.WP is recommended for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. Equipped with two, 2` fluorescent lamps this unit operates on universal 100-277V AC. When in use, the light provides 4,000 lumens of white light with a color temperature rating of 5600K. This 48-watt lamp can be daisy chained with other compatible fixtures during installation. The industrial fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. Emergency Backup: We have added a battery backup unit that adds emergency light functionality to the fixture. This emergency light will run the standard UL suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 900 lumens for 90 minutes. This emergency light fixture features an external test switch to allow operators to do routine checks of the emergency operation. Wiring: The GAU-EMG-24-2L-LED-2X6C-L5.15.WP is equipped with 6` of 16/3 SOOW cord at both ends (input/output), which enables daisy chain configurations. This unit features L5-15P and L5-15C weatherproof cord caps. Surface Mounting: Flange type aluminum mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounting holes are 14.91" inches on center apart along the top of the unit and 9.5" inches on center across the top of the light. Pendant Mounting: This light fixture can hang from the ceiling suspended by rigid pipe. For this mounting configuration, operators will bring rigid pipe down to the unit. Suggested Applications: Marine wet and damp locations, corrosive work sites, docks, warehouses, delivery bays, industrial buildings and more.
