120 Watt High Intensity High Bay LED Light - 16,200 Lumens - 120-277V AC - Outdoor Rated

120 Watt High Intensity High Bay LED Light - 16,200 Lumens - 120-277V AC - Outdoor Rated

$2,404.00 CAD
$2,404.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
GAU-HB-120W-LED High Bay LED Light Quick Summary
Lamp Type: CREE® LED 250 Watt Metal Halide Replacement
Dimensions: 10.60"-L x 9.77"-W x 5.07"-D Ambient Op Temp -40C to +80C
Weight:  20 Lbs Ideal for Light Towers & LED Retrofits
Total Watts: 120 98% Transmission High Purity PMMA Optics
Total Lumens: 16,200 Multiple LED Banks for Heat Dispersion
Luminous Efficiency: 135 lm/w 135 Lumens Per Watt Efficiency
Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood 70% Lumen Retention after 80,000 Hours
LED Color Temperature: Cool White - 5500-6500K UL1012 Compliant
LED Life Expectancy: 80,000 hours UL60950-1 Compliant
Optics Efficiency: 98% - PMMA High Transmittance Optics CE Certified
Led Drive %: 90% RoHS Compliant
Voltage:120-277 VAC IP67 Rated Waterproof
Amp Draw: 1A @ 120V, 0.625A @ 240V, 0.54A @ 277V
Wiring: 2.5` Pigtail w/ Flying Leads
Mounting: Flat Surface Trunnion Mount U-Bracket
Materials: Die Cast Aluminum Housing, PMMA Optics
Housing Color: Natural Aluminum Toll Free: 1-800-369-6671
Ambient Temperature Range: -40°C to +80°C Intl: 1-903-270-1187
Waterproof Rating: IP67 E-mail:
' Product Overview '

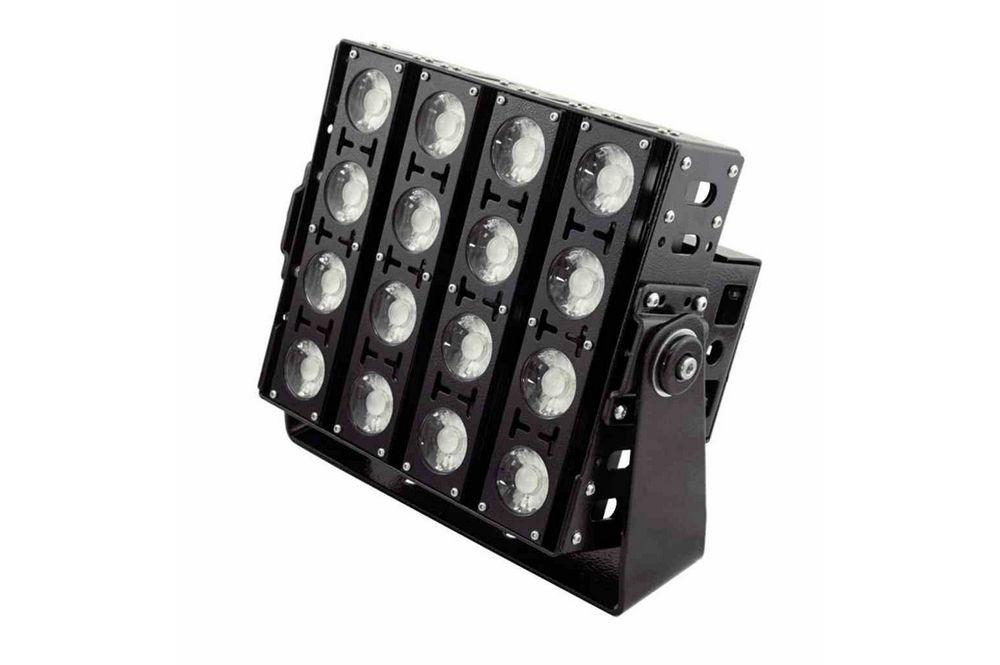

The GAU-HB-120W-LED High Bay LED Flood Light offers intense light output and is ideal for flood lighting as well as industrial and outdoor lighting applications. Producing 16,200 lumens, a 1 amp draw at 120V, 80,000 hour service life, 120-277 volt compatibility, and IP67 waterproof rating, this LED flood light provides operators with a rugged and powerful LED alternative to 400 watt metal halide lamps that uses little power and can withstand rugged use and abusive conditions. The GAU-HB-120W-LED High Bay LED light from Larson Electronics produces 16,200 lumens of high intensity light while drawing only 120 watts at 1 amps from a 120 volt electrical system. Twelve CREE® high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high bay lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. GAU-HB-120W-LED High Bay lights are ideal replacements for fragile and hot running 250 watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. Durability: As well as unparalleled heat control, the GAU-HB-120W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Mounting: Each unit is equipped with a back mount trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 160° of vertical movement. To adjust the unit after mounting, the user simply loosens the set screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning. Applications: General area lighting systems, warehouses, large commercial spaces, industrial plants, processing facilities, offices, hallways, walkways, street lighting, sports facilities, retail stores, outdoor lighting and more.
