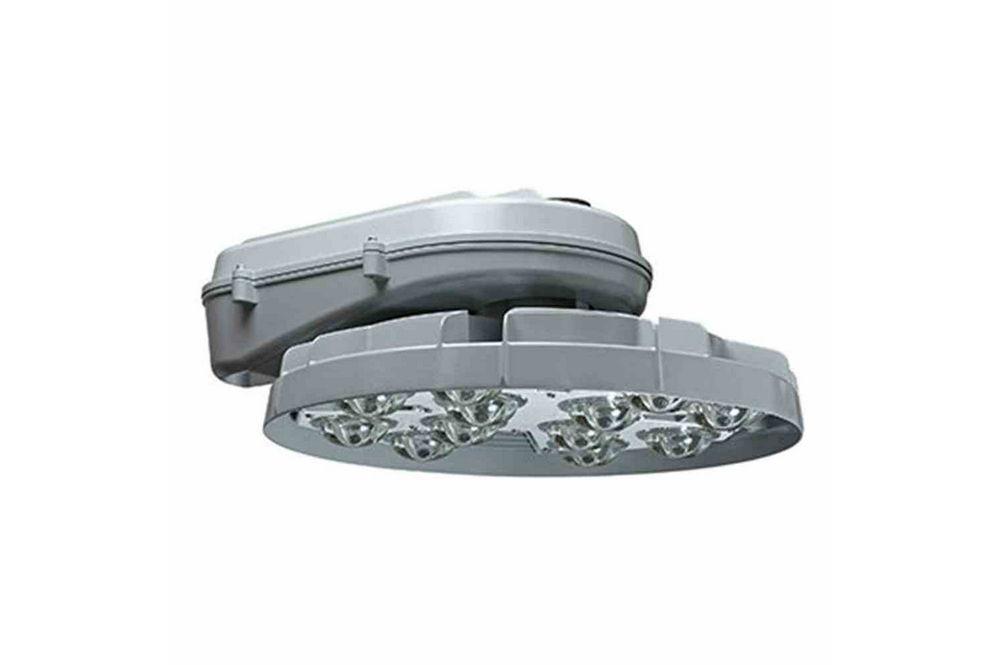

500 Watt High Bay LED Light Fixture - General Area Use - 60,990 Lumens


Sale price$8,553.99


Specifications / Additional Information
GAU-HB-500W-LED-480V High Bay LED Light Features
Lamp Type: LED Light Weight Aluminum Construction
Dimensions: 23" Diameter, 10" Height Instant On - No Warm Up Times
Total Watts: 500W 100,000+ Hours
Lumens: 60,990 Low Maintenance
Color Temperature: 4000K Reduces Energy Consumption
Color Rendering Index: 70 RoHS Compliant
Voltage: Multi- 347-480V AC, 50/60Hz UL1598 Rated for Wet Locations
Amps: 1.40 Amps @ 347V, 1.00 Amps @ 480V
Luminous Efficacy: 122 Lm/W
Lighting Configuration: Wide Flood Pattern
Housing Material: Die Cast Aluminum
Lens Material: Borosilicate Prismatic Glass
Housing Color: Grey
Mounting: Pendant Mount Toll Free: 1-800-369-6671
Weight: 52lbs Intl: 1-903-270-1187
Temp Rating: -40°C to +40°C E-mail:
' Product Overview '
The Larson Electronics GAU-HB-500W-LED-480V High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional general area luminaries. LED technology and light weight design makes this lamp an excellent energy efficient upgrade option for bulky and high maintenance cost fixtures. The durable die cast aluminum construction makes the GAU-HB-500W-LED-480V a durable lighting option for a variety of high bay applications. The GAU-HB-500W-LED-480V operates on voltages ranging from 347-480V AC while drawing 1.40 amps @ 347V and 1.00 amps @ 480V. This 500 watt LED high bay light fixture provides 60,990 lumens of high quality light while drawing only 500 watts and is ideal for use in warehouses, garages, production lines and anywhere an effective and efficient general area lighting solution is needed. A borosilicate prismatic glass lens protects the LED light assembly and the die cast aluminum body reduces weight compared to larger metal halide and high pressure sodium fixtures. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 100,000 hour rated lifespan with 80% lumen retention. A 52 lbs weight and low profile make this unit an attractive and energy efficient alternative to larger and heavier older light fixtures and requires less hardware to install. The GAU-HB-500W-LED-480V features a grey housing that is powder coated for extreme durability. The LED modules in this LED light are have an IP66 waterproof rating and the entire fixture is UL1598 listed for wet locations. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This LED light is multi-voltage capable and can be operated with 347-480V AC, 50/60Hz without any need for a special ballast. The aluminum body and LED luminaries give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED light fixture produces 60,990 lumens of light with a color temperature of 4000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The LEDs used in this light use less energy and create less heat which reduces energy costs by lowering the amount of electricity needed to both illuminate and cool large areas. The GAU-HB-500W-LED-480V offers cable mounting hook to be suspended from the ceiling.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 80% lumen output after 100,000 operating hours. 6. Powder coated aluminum fixture body. 7. Multiple Mounting Options Including Pendant, Wall, Ceiling, Cable Mounting. 8. Low profile - Light weight 9. 60,990 Lumen output from only 500 watts 1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
