Larson 25kW Industrial Fan-forced Heater - 480V 3-phase - 102,390 BTUs/1,350 CFM - Powder Coated Steel

Larson ElectronicsSKU: PL3-GAU-HE-FH-25KW-480V.3P
filler

Price:
Sale price$11,734.00
 More payment options

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

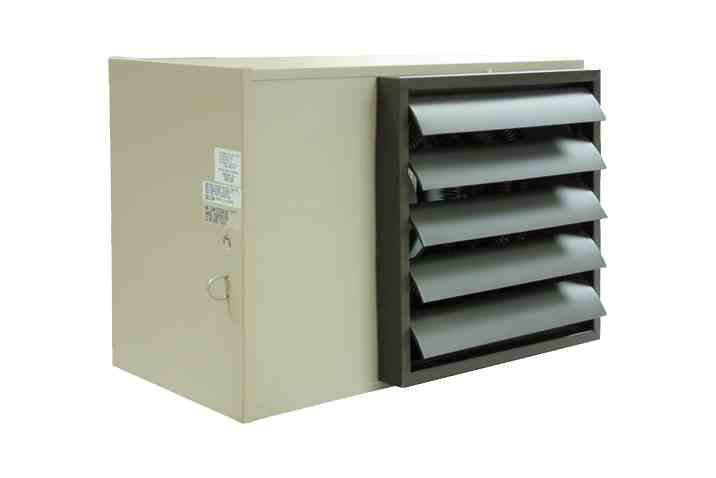

The Larson Electronics GAU-HE-FH-25KW-480V.3P Industrial Fan-forced Heater is a powerful heating solution for indoor facilities. This unit provides 102,390 BTUs of heat output and operates with three-phase 480V AC. Protected by a heavy gauge welded steel cabinet, the heater is compatible with wall/surface mounting installations at a maximum height of 13 feet.
The GAU-HE-FH-25KW-480V.3P can be used to actively keep indoor spaces and industrial buildings warm. This 25 kW compact heater offers 102,390 BTUs of heat output. Equipped with a totally enclosed, permanently lubricated fan motor, the system provides 1,350 CFM and 56' of air throw. The fan has sleeve bearings and is protected by a chrome plated wire guard. Overheat protection is available with the industrial heater, which is facilitated by automatically resetting type limit controls to de-energize the unit upon sensing over-temperature conditions. Operators may access switches for selecting fan-only mode and fan delay.
This unit is protected by a heavy gauge welded steel enclosure and is recommended for indoor use. The heating element consists of circular copper clad steel sheath element with continuously brazed steel fins. Square louvers on the unit promotes air flow in the space. The louvers are removable and adjustable in the following directions (heater in horizontal position): left, right, up and down.
Voltage:
The industrial fan-forced heater operates on three-phase 480V AC power. A control voltage of 24V is provided for low voltage remote thermostat applications.
Mount:
The GAU-HE-FH-25KW-480V.3P is compatible with wall or surface mounting installations. Mounting is facilitated by a 5/18" threaded rod. For best results, a maximum mounting height of 13 feet should be observed.
Applications:
Warehouses, commercial spaces, industrial buildings, schools, indoor facilities, barns and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Unit Type: Horizontal Fan Forced Heater
Dimensions: 24" x 17" x 17"
Weight: 55 lbs
Voltage: 480V AC
Phase: 3-phase
BTUs: 102,390
Temp Rise: 58 °F
Air Throw: 56'
CFM: 1,350
Motor Type: Totally Enclosed, Permanently Lubricated, Thermally Protected w/ Sleeve Bearings
Louver Type: Square (Removable, Adjustable - Left, Right, Up and Down)
Fan Protection: Chrome Plated Wire Guard
System Protection: Overheat
Switches: Summer Fan Switch (Fan-only Mode), Fan Delay Switch
Control Voltage (Temperature Control): 24V
Amps: 30.1A
Cabinet Material: Heavy Gauge Welded Steel
Finish: Powder Coated
Heating Element Material: Circular Copper Clad Steel Sheath Element w/ Continuously Brazed Steel Fins
Mount: Wall/Surface - 5/18" Threaded Rod
Maximum Recommended Mounting Height: 13'
Wiring: -
