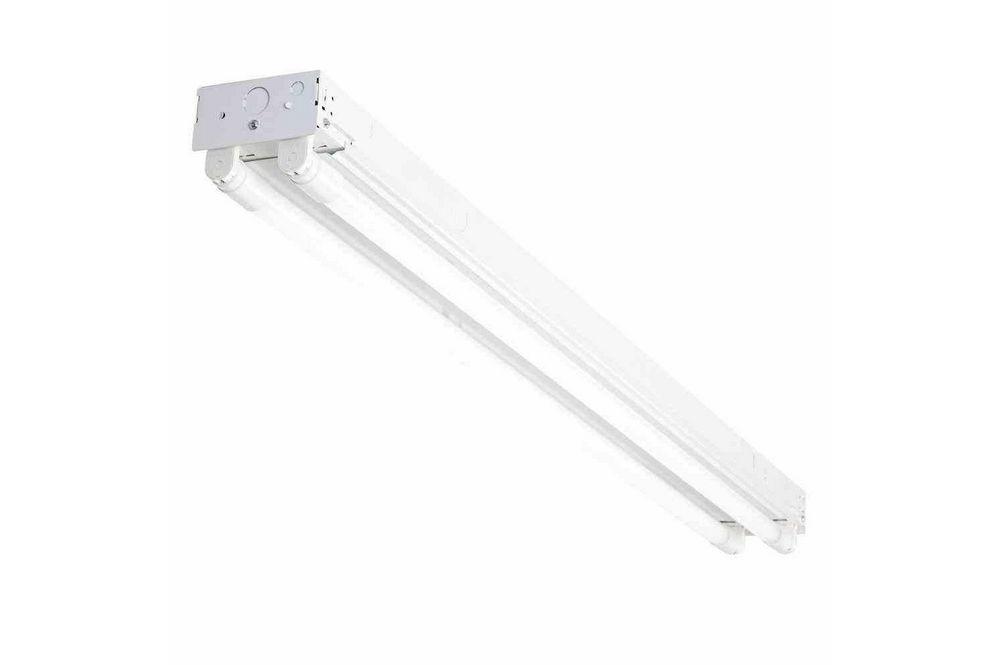

36W LED Strip Fixture - (2) 48" G3 T8 Style LED Tubes - 22G Steel - Baked White Enamel Finish

LARSON ELECTRONICSSKU: PL3-GAU-ID-48-2L-LED-G3
filler

Price:
Sale price$308.99

Description

Specifications / Additional Information
GAU-ID-48-2L-LED-G3 LED Strip Fixture Ratings/Approvals
Lamp Type: (2) LED T8-Style Tubes Replacement for Fluorescent Lamps
Dimensions: 48" x 2" x 4.25" 80% Lumen Retention @ 50,000+ Hours
Weight: - Single End Powered
Voltage: 120-277V AC 50/60Hz
Total Watts: 36W
Total Lumens: 4,500
Luminous Efficiency: 125 lm/w
Lamp Life Expectancy: 50,000+ Hours
Color Temperature: 3000K, 4500K or 5600K
Color Rendering Index: >80
Beam Angle: 150°
Lighting Configuration: Flood Pattern
Power Efficiency: 90%
Power Factor: >0.95
Ambient Temperature Rating: -40°C to +65°C
Materials: 22G Steel Housing, Polycarbonate Lens
Lens: Clear, Frosted or Heavy Frosted
Mount: Surface, Chain or Double Stem
Socket Type: Non-shunted

' Product Overview '
The Larson Electronics GAU-ID-48-2L-LED-G3 LED Strip Fixture is an excellent choice for replacing traditional T8 fluorescent lamp fixtures with energy efficient LEDs. This 36-watt unit is equipped with two, 18-watt LED T8-style tubes. Constructed of steel (housing) and polycarbonate (lens), the LED strip fixture is compatible with universal 120-277V AC voltages. The GAU-ID-48-2L-LED-G3 is an energy efficient and powerful lighting solution for industrial facilities, general locations and more. This 36-watt LED strip fixture is equipped with two of our second generation 18-watt LED tubes. Efficiency per LED tube is 125 lumens per watt, for a total of 2,250 lumens per bulb. We offer a choice of 3000K warm white, 4500K natural white and 5600K cool white color temperatures and clear, frosted or heavy frosted lenses. The internal LED driver is a "smart" driver, sensing the incoming voltage and adjusting accordingly to provide the current required by the lamp. This allows operators to simply wire the fixture to voltage within the 120-277V AC range, no modifications required. This includes commonly found voltages such as 120V 60Hz, 220V 50Hz, 240V 60Hz, and 277V 60Hz. The GAU-ID-48-2L-LED-G3 is constructed of die-formed and embossed 22-gauge steel, with a polycarbonate lens. For durability, the unit is finished with high reflectance, baked white enamel.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
 LED Lamp Benefits Mounting: The GAU-ID-48-2L-LED-G3 is compatible with surface mounting, chain (hanging) and double-stem mounting configurations. For seamless installations, wiring knockouts are provided on the back and end of the housing. For continuous row mounting requirements, the end plate can be used as a coupler. Applications: Warehouses, industrial work sites, loading bays, control rooms, general locations, gymnasiums, schools, commercial locations, offices, buildings and more.
