120 Watt High Intensity LED Light - 16,200 Lumens - 120-277V AC - High Mast - Remote Mount Driver
120 Watt High Intensity LED Light - 16,200 Lumens - 120-277V AC - High Mast - Remote Mount Driver
| GAU-LTL-120W-LED-EB High Mast LED Light | Quick Summary |
| Lamp Type: CREE® LED | 250 Watt Metal Halide Replacement |
| Dimensions: 10.60"-L x 9.77"-W x 5.07"-D | Ambient Op Temp -40C to +80C |
| Weight:Â Â 20 Lbs | Ideal for Light Towers & LED Retrofits |
| Total Watts: 150 | 98% Transmission High Purity PMMA Optics |
| Total Lumens: 20,250 | Multiple LED Banks for Heat Dispersion |
| Luminous Efficiency: 135 lm/w | 135 Lumens Per Watt Efficiency |
| Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood | 70% Lumen Retention after 80,000 Hours |
| LED Color Temperature: Cool White - 5500-6500K | UL1012 Compliant |
| LED Life Expectancy: 80,000 hours | UL60950-1 Compliant |
| Optics Efficiency: 98% - PMMA High Transmittance Optics | CE Certified |
| Led Drive %: 90% | RoHS Compliant |
| Voltage:120-277Â VAC | IP67 Rated Waterproof |
| Amp Draw: 1A @ 120V, 0.625A @ 240V, 0.54A @ 277V | |
| Driver: Remote Mount Driver & External Ballast | |
| Wiring: 2.5` Pigtail w/ Flying Leads | |
| Mounting: Flat Surface Trunnion Mount U-Bracket | |
| Materials: Die Cast Aluminum Housing, PMMA Optics | |
| Housing Color: Powder Coated Black | Toll Free:Â 1-800-369-6671 |
| Ambient Temperature Range: -40°C to +80°C | Intl: 1-214-616-6180 |
| Waterproof Rating: IP67 | Fax:Â 1-903-498-3364 |
| Wiring: Terminal strip on fixture, remote mount driver |

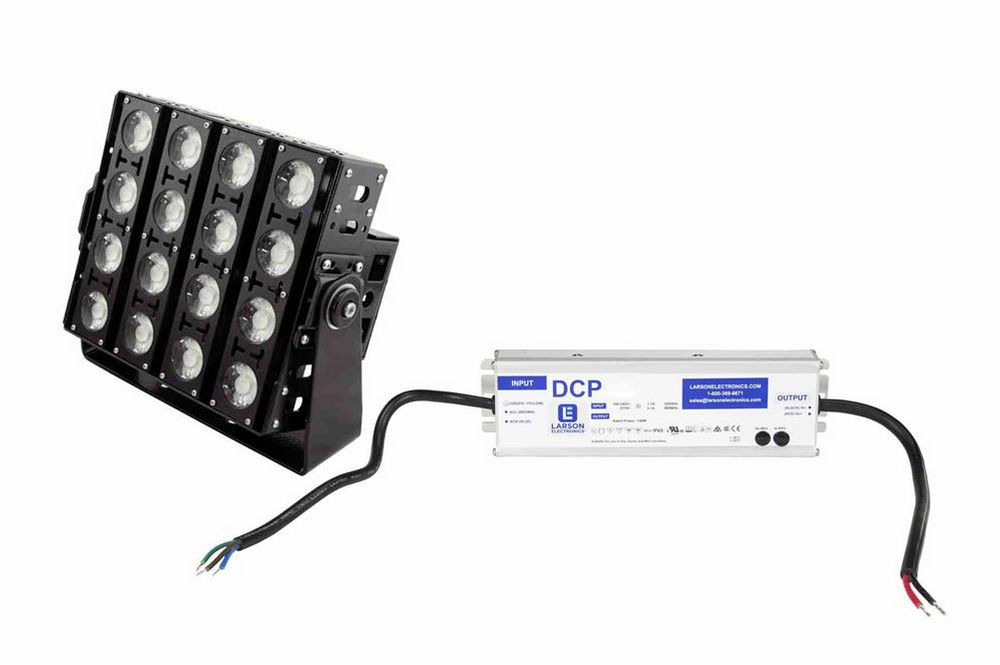

The GAU-LTL-120W-LED-EB High Mast LED Flood Light with Remote Mount Driver offers intense light output and is ideal for flood lighting, high mast lighting, light towers, as well as industrial and outdoor lighting applications. Producing 20,250 lumens, a 1 amp draw at 120V, 80,000 hour service life, 120-277 volt compatibility, and IP67 waterproof rating, this LED flood light provides operators with a rugged and powerful LED alternative to 400 watt metal halide lamps that uses little power and can withstand rugged use and abusive conditions.
The GAU-LTL-120W-LED-EB LED light from Larson Electronics produces 20,250 lumens of high intensity light while drawing only 150 watts at 1 amps from a 120 volt electrical system. Twelve CREE® high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights.
GAU-LTL-120W-LED-EB lights are ideal replacements for fragile and hot running 250 watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few.
GAU-LTL-120W-LED-EB has a remote mount driver and external ballast ballast for high heat applications. The driver and ballast must be installed ouside of the high heat location to protcect the equipment from failure. The rest of the components in the GAU-LTL-120W-LED-EB can survive high heat and may remain in the environment. The remote driver and external ballast can operate in conditions up to 175° F. Customers must provide their own wiring.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours.
Durability: As well as unparalleled heat control, the GAU-LTL-120W-LED-EB series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
Mounting: Each unit is equipped with a back mount trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 160° of vertical movement. To adjust the unit after mounting, the user simply loosens the set screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning. The remote power supply is mounted separetly from the fixture.
Wiring: This LED flood light is shipped with a remote mount LED driver. Operators install the light fixture in one location, and the driver in a remote location away from the fixture. Wiring is connected to the fixture via an internal terminal strip on the back side of the fixture. Additional wiring will be required during installation. Wire size will depend on the distance between light fixture and driver. Please see below chart for recommended wire guage.
|
