250W Metal Halide Light Fixture - Permanent Mount - Approved for Marine Environments - Outdoor Rated

LARSON ELECTRONICSSKU: PL3-GAU-PRM-250W-MH
filler

Price:
Sale price$1,366.99

Description

Specifications / Additional Information
GAU-PRM-250W-MH Metal Halide Area Light Ratings/Approvals
Lamp Type: Metal Halide UL 1598A Rated
Dimensions: 47 " W X 11" D X 25 1/4" H w/Trunnion Mount Approved For Use In Marine Environments
Watts: 250 Outdoor Rated
Lumens Per Watt: 90
Voltage: 120V, 208V, 240V, or 277V / 220-480 OPT
Lighting Configuration: Flood Pattern
Mounting: Slip Fit Pole Mount or Zinc Trunnion
Weight:  45 lbs
U.L. Listing: Outdoor Marine Approved
Total Lumens: 22,500
Lamp: Included
Wiring: 3/4 inch Threaded NPT Conduit Entrance
' Product Overview '

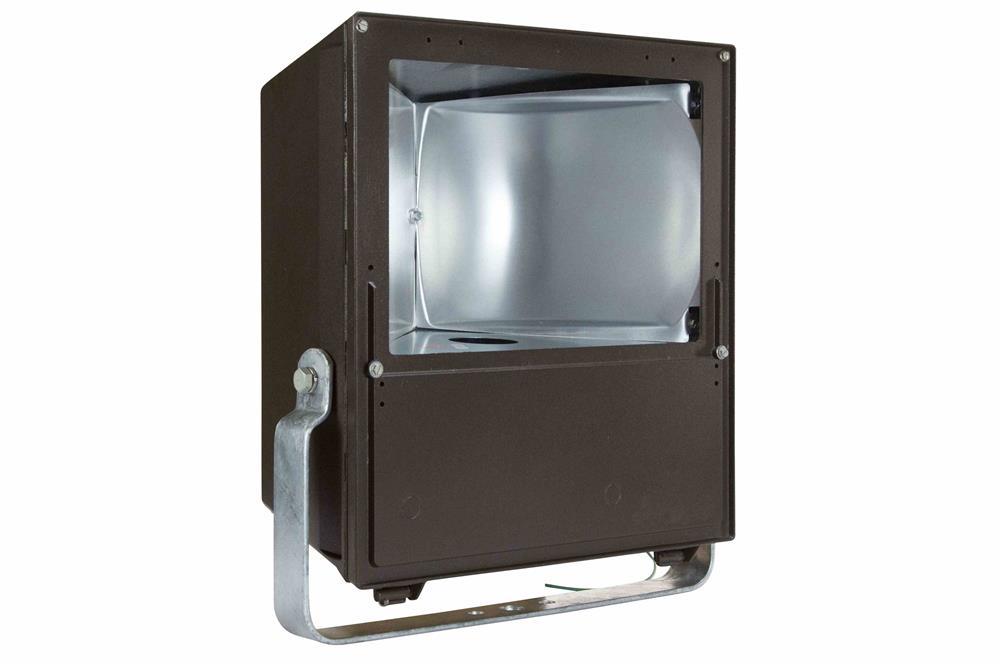

Made in the USA The GAU-PRM-250W-MH from Larson Electronics is a 250W Outdoor Rated Metal Halide Area Light that offers extreme durability and exceptional illumination. Constructed of die cast aluminum and U.L. listed for marine use, this metal halide fixture is a versatile and ideal lighting solution for areas where wet or corrosive environments are encountered. The rugged GAU-PRM-250W-MH metal halide light fixture is weatherproof and suitable for use in wet, outdoor and marine environments, making it an ideal lighting solution for industrial applications, boat docks, building exteriors and outdoor work areas. The lamp housing is weatherproof and constructed of pressure cast copper free aluminum with an architectural bronze Polyester finish. The lens door is pressure-cast copper-free aluminum, and secured with 1/4" diameter captive stainless steel slotted hex-head bolts. This unit features an integral multi- tap ballast with a choice of of 120V, 208V, 240V, or 277V connections. Also available are optional in separate 220V and 480V configurations. The optical assembly includes thermal shock and impact resistant door glass with a pressure-cast copper-free aluminum door frame and heavy duty, high temperature silicone rubber seal. The lamp socket is a specification grade mogul base porcelain unit with heavy gauge brass, a nickel-plated, double lamp-grip screw shell and spring-loaded center contact. The reflectors are a double segment compound parabolic design with Alzak® finish for maximum efficiency. Mounting choices include: (1) Yoke mount: zinc plated steel yoke with architectural bronze Polyester finish. (2) Pole top mount: built-in slip-fitter for internal wiring. Adjustable laterally and vertically. Slip fits 2” or 2 1/2” pipe. Architectural bronze Polyester finish. This metal halide area light is U.L. listed 1598A for outdoor salt water marine environments. This 250 watt metal halide light is highly durable, produces 50,000 lumens in a wide flood pattern, and has a maximum operating temperature of 325°C (T1 NEC Identification Number). All hardware on this unit is resistant to rain, snow, salt water and corrosive chemicals. The heavy duty design and attractive finish of this fixture makes it a popular choice for outdoor applications regardless of whether the locations are designated hazardous or not. LAMPS: Use only lamps specified on nameplate. Bulb not included with fixture. Observe lamp manufacturer’s recommendations and restrictions on lamp operation, particularly ballast type, burning position, etc.
  Click Here for Notes on Wiring this Light
Make all electrical connections in accordance with the National Electrical Code and any applicable local code requirements. Verify that supply voltage is correct by comparing it to nameplate. Three-conductor No. 14 cable (with 90° C minimum insulation) is recommended for making electrical connections. Wiring is accomplished through the wiring box provided on the fixture. The box is provided with a size 3/4-in. NPT threaded conduit opening. To get inside the unit, open the door, loosen the (2) screws holding the reflector and remove the reflector. Verify the correct supply voltage and lamp wattage. Bulb not included.
Made in the USA Quality Metal Halide Benefits
1. High Efficiency MH lamp. 2. Approximately 90 Lumens per Watt 3. Rugged Pressure Cast Aluminum Housing. 4. Thermal Shock and Impact Resistant Glass Lens Door. 5. Heavy Duty Door Gasket. 6. Socket: Mogul Base heavy gauge brass, nickel-plated double lamp-grip screw shell. 7. Low Maintenance. 8. Slip Fit Pole Mount or Zinc Plated Yoke Mount. 9. Heavy Duty High Heat Silicone Door Glass Seal. 10. Architectural Bronze Polyester Finish. 1. Long lamp life. 2. High efficiency and low amp draw after initial startup. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
