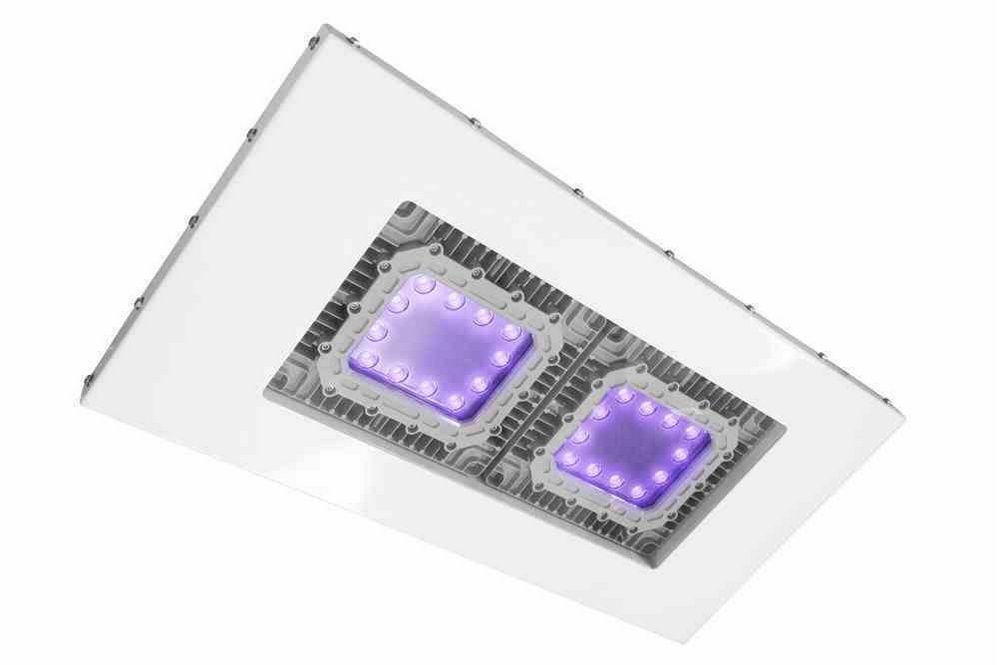

Low Profile Clean Room UV LED Light - 2x4 Lay-In Troffer - ISO 14644/FS-209E Rated - 365nm

LARSON ELECTRONICSSKU: PL3-GAUD-48-2X100LED-UVA-V2
filler

Price:
Sale price$18,467.99

Description

Specifications / Additional Information
GAUD-48-2X100LED-UVA-V2 UV LED Clean Room Light Ratings/Approvals
Lamp Type: UV LED FS-209E Clean Room Rated
Dimensions: 48"-L x 24"-W x D-4.5" ISO 14644 Clean Room Rated
Flange Dimensions: 48"L x 24"W IP67 Rated Waterproof
Weight: - LEL Approved
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC 80% Lumen Retention after 50,000 Hours
Total Watts: 200W Multiple Driver Banks
Intensity: 70,000 mW
Efficiency: 350 mW/w
Lamp Life: 50,000+ Hours
UV Band: 365 nm
UV Wavelength Curve: 350-400nm - Peak @ 365 nm
Lighting Configuration: Flood Pattern
Ambient Operating Temp Range: -50°C to +65°C
Operating Temp Rating: T5
Housing Material: Copper-free Aluminum
Housing Finish: Powder Coated - White
Mounting: Recessed Panel Mounting
LED Driver Specs
' Product Overview '
Made in the USA The Larson Electronics GAUD-48-2X100LED-UVA-V2 Low Profile Clean Room UV LED Light is designed to provide operators with a seamless, permanent UV LED light source for clean rooms, inspections, non-destructive testing (NDT) and more. Consisting of two, 100-watt UV LED fixtures, this unit features compatibility with recessed panel mounting configurations. The UV LED lamp is rated for FS 209E and ISO 14644 cleanroom applications. The GAUD-48-2X100LED-UVA-V2 is a powerful UV LED lighting solution for clean rooms and other areas that require little to no contamination and where space for lighting fixtures is limited. Consisting of two, 100-watt UV LED lamps (for a total of 200 watts), the fixture is T5 temperature rated and protected by an aluminum framed, hinged, 3/16" thick polycarbonate door that provides direct front access to the internal components. This UV LED fixture provides 70,000 mW of high quality ultraviolet light per lamp. The high output UV LED lamps emit a 4,800 µW/cm2 center beam maximum intensity at 12" while providing a minimum 2,000 µW/cm2 intensity over a 28" by 14" area. Constructed of copper free aluminum with a powder coated white finish, the IP67-rated unit is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 volts.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. The GAUD-48-2X100LED-UVA-V2 uses ultraviolet LED light technology, a technology that is far better in energy saving than traditional fluorescent bulbs used for the same purposes. Traditional ultraviolet lights require a coating to block out visible light or a special composition of gases and chemicals used to create a higher concentration of ultraviolet light. This process, however, also produces many other wavelengths of light which go unused and end up as wasted energy. LED lights are unique in that they have a narrower wavelength band than traditional ultraviolet sources and therefore do not require these special coatings. As a result, LED lights do not produce unused, wasted light and therefore consume less energy than traditional UV lights on the market. LED lights have the added benefit of being capable of producing very specific wavelengths with tighter curves and are more durable and light weight as well. This eliminates harmful UV-B and UV-C wavelengths from being emitted from the light source, adding in productivity and safety during operation. The industrial LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This LED lamp contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. Mounting: This UV LED fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accommodating the fixture housing in order to provide the maximum amount of space in clean room areas. Once mounted, this fixture`s door frame will extend 3/8" into the clean room. Applications: ISO 14644 and FS-209E clean room applications that require little to no contamination including but not limited to medical applications, paint spray booths, aerospace, nuclear facilities, semiconductor plants, pharmaceutical centers, non-destructive testing (NDT), laboratories and any other applications that require ample lighting with little to no contamination within the work area atmosphere.
