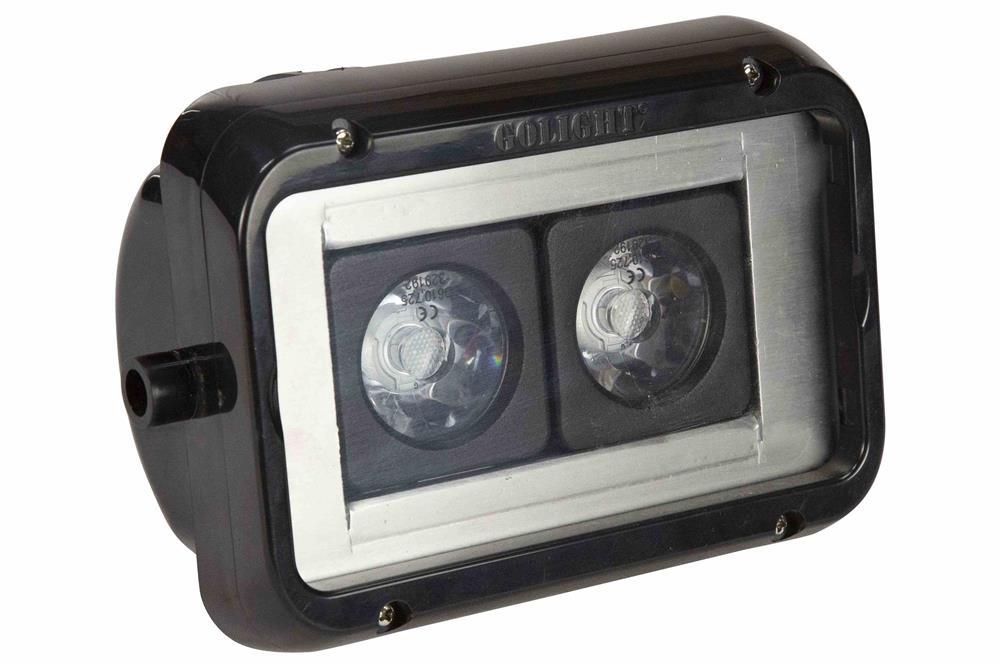

Infrared LED Conversion Kit for Radioray Golights - Compatible w/ 2XXX, 5XXX, 7XXX, and 9XXX Series

Infrared LED Conversion Kit for Radioray Golights - Compatible w/ 2XXX, 5XXX, 7XXX, and 9XXX Series

Sold by: LARSON ELECTRONICS

$3,196.00 CAD
$3,196.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
GL-2XXX-CVT-IR-2X1 Infrared LED Conversion Kit GL-2XXX-CVT-IR-2X1 Features
Lamp Type: Infrared LED Seoul Z-Power LED
Dimensions: Each Light Head: 2"W x 2"H x 2.5" Depth Low Amp Draw
Watts: 6 (3 Watts Per Lamp) Small Size
Led Drive %: 80% 50,000 Hour Service Life
Voltage: 9-42 V DC Shock Vibration Resistant
Lighting Configuration: 10° Spot or 35° Flood Ambient Op Temp -45°C to 85°C
Compatible Golights: 2XXX, 5XXX, 7XXX, and 9XXX Series Radioray Golights IP68 Rated
Wiring: Deutsch IPD / LADD DT04-2P connector EN55015 EMI
Amps: 0.50 (on 12 Volts) 0.26 (on 24 Volts) EN61547 EMS
Lumens: N/A EN62471 Photobiological Safety
LED Light Color: Infrared 750nm, 850nm or 940nm CE Certified
LED Life Expectancy: 50,000 Hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Weight: 1.88 lb
Housing Color: Black
Spot Beam: 225`L x 25`W
Flood Beam: 45`L x 40`W
' Product Overview '
Buy American Compliant The GL-2XXX-CVT-IR-2X1 from Larson Electronics is an Infared LED Conversion Kit for Existing Visible LED or Halogen Golight Radioray Series Spotlights. This conversion kit is compatible with 2XXX, 5XXX, 7XXX, and 9XXX Series Radioray Golights. The GL-2XXX-CVT-IR-2X1 features a pair of LEDLB-1-IR LED ultra compact and powerful medical use suitable infrared LED lights that each project an 850nm infrared beam 225 feet long and 25 feet wide as a spotlight and an infrared beam 45 feet long by 40 feet wide as a floodlight. These IR LED lights include a high powered 3 watt LED potted into an aircraft grade aluminum chassis that is designed to protect the LED and dissipate heat. The infrared lights produce a beam that can only be seen through the use of night vision goggles or equipment. Light Features: The value in the GL-2XXX-CVT-IR-2X1 IR LED conversion kit is in the power and form factor. At 2 inches wide by 2 inches tall, by 2.5 inches deep, each included light draws only a 1/4 amp on 12 volts and puts out an infrared beam that reaches 225 feet. These LEDLB series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. A small profile, low power requirements, high durability and versatile mounting makes these LED lights ideal for commercial use as well as a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning and non destructive testing, security and law enforcement, and boating.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Seoul Z-Power Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB-3 series LED lights can operate on current ranging from 9 to 42 V DC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and standalone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical. Durability: These LED light bars from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand frigid temperatures, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum, the mounting hardware is stainless steel and the lenses are unbreakable polycarbonate. The solid stated design of these LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Conversion Kit: The GL-2XXX-CVT-IR-2X1 infrared LED conversion kit includes everything needed to convert an existing and compatible Radioray Golight from standard LED to infrared LED operation. The kit includes the pair of LEDLB-1-IR infrared lights, a face plate and face plate lens, and (4) #10-32x1/2 cone point set screws. This IR LED conversion kit is the perfect way to add more versatility and function to existing Golight spotlights. Options: These particular units are available in 750, 850 and 940nM wavelengths. 850nM is typically useful with older versions of night vision and commercially available security cameras and devices with night vision capability. These units are also available in spot or flood configurations to allow a tighter beam for longer range or a wider beam for illumination of larger areas closer to the fixture. Choose options below when ordering. Note: We include a short male plug with 2 wires, stripped and tinned for connection to leads from a power source with the LED10W-1S (i.e. vehicle system, battery, etc.). Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB, LEDP10W and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
