PTZ Day/Night Thermal Imaging Mobile Camera System - 7" LCD Monitor - Remote Control - 12V DC

LARSON ELECTRONICSSKU: PL3-GL-3349
filler

Price:
Sale price$21,714.00

Description

Specifications / Additional Information
GL-3349 Thermal Imaging Camera Ratings
Unit Type: PTZ Thermal Imaging System IP66
Camera Dimensions: 6.2" x 5.9" MIL STD 810E
LCD Display Dimensions: 7" 3-Speed Auto Scan Modes
Camera Weight: 3.5 lbs On-screen Position Indicator w/ Custom Home Button
Camera Watts: - Plug and Play Setup w/ RJ45 (CAT5e Cables)
System Voltage: 12V DC
Image Sensor: 1/3" SONY Super HAD CCD II Sensor (960H Double Speed CCD)
Lens: Thermal- 388 (19mm), 640 (25mm); Daylight- 12mm
Resolution: 700VTL
Picture Elements: NTSC- 976 x 494, PAL- 976 x 582
Video Format: NTSC-480i @ 30Hz , PAL- 576i @ 25Hz
Pan Movement: Range- 360° - Continuous Rotation; Speed- 0.05-70°/Sec - 0.05°-240/Sec Max
Tilt Movement: Range- 200° w/ Auto Tilt @ Azimuth; Speed- 0.03-38°/Sec - 0.05°-140/Sec Max
Thermal Palette Control: White Hot, Black Hot, Multiple Color Palettes
Thermal Refresh Rate: 388 60Hz/640 30Hz
Thermal Core: 17um 388 x 284/ 640 x 480 Uncooled Vanadium Oxide (VOx) LWIR
Thermal Attributes: 8-14um Spectral Band/Thermal Sensitivity <50mK
Detection/Recognition Range: Human Target- Detect @ 1000m/Recognize @ 200m; Vehicle Target- Detect @ 2380m/Recognize @ 500m
Digital Zoom Control (Thermal): 1-4x (32 Steps Smooth Zoom)
Digital Zoom Control (Daylight): 1-10x Optical/10x Digital (255 Steps Smooth Zoom)
Mirror Imaging: Thermal- OFF / V-Flip / H-Flip / VH-Flip; Daylight- OFF / V-Flip / H-Flip / VH-Flip
Thermal/Daylight ON: Digital Image Stabilization, Wide Dynamic Range, Digital Noise Reduction
Thermal/Daylight Automatic: Gain Control
Calibration: Internal, Auto, Manual
Video Output: 1VP-P Composite Video Output/75 Impedance
Power Consumption: 1.2A Idle; 2.2A Max @ 12V DC
Ambient Temperature Range: -30°C to +50°C
Materials: UV Stabilized ABS Plastic w/ Anodized Aluminum Base Plate Special Orders/Requirements
Mounting: Neodymium Disk Magnets - Magnetic
Serial Data Connection: RS485/Pelco-D
Cable: CAT5e (Included)
Package Contents: Thermal Camera, Mini Power Center w/ 12V DC Plug, Remote Control, LCD Monitor
Color: Black
' Product Overview '

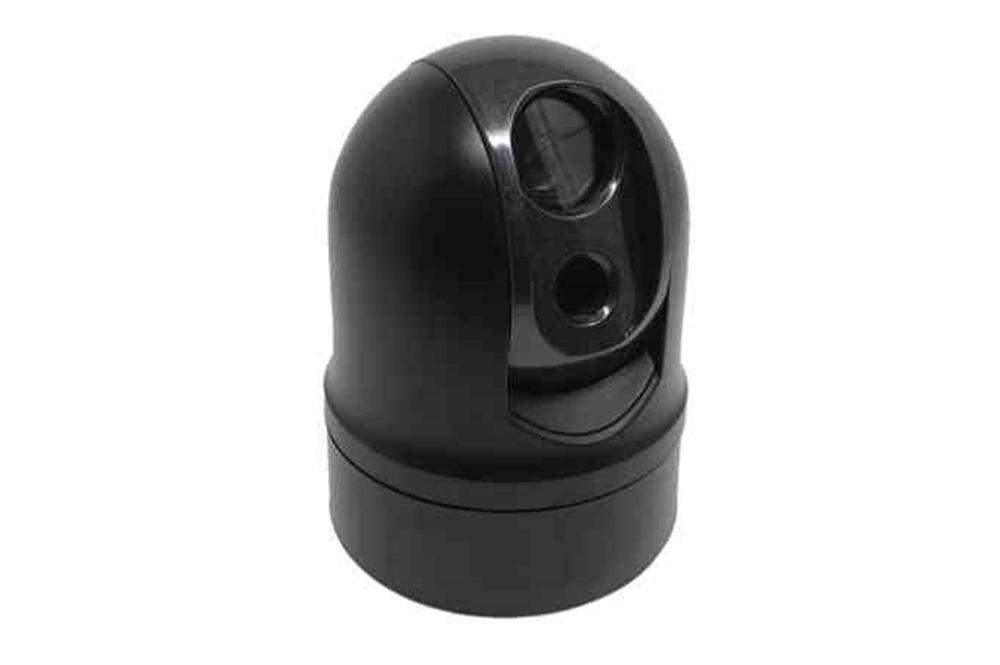

The Larson Electronics GL-3349 PTZ Day/Night Thermal Imaging Mobile Camera System facilitates thermal, daylight and low-light viewing in industrial sites. This low voltage monitoring device offers 360° continuous rotation and magnetic mounting on compatible surfaces. The system includes a 7" LCD display, mini power center w/ 12V DC plug, CAT5e cable and remote control. Camera Features: The GL-3349 Multi-sensor PTZ Thermal Camera offers thermal image viewing in outdoor and industrial locations. This complete thermal monitoring system includes the following components: thermal camera, 7" LCD display, mini power center w/ 12V DC plug, CAT5e cable and remote control. The system operates on 12V DC and consumes 2.2 amps (maximum). The environmentally sealed camera caters to full, 360° continuous rotation and a tilt range of 200° (with auto tilt @ azimuth). Equipped with a 1/3" SONY Super HAD CCD II Sensor (960H double speed CCD), calibration modes include: internal, auto and manual. This camera offers digital image stabilization, wide dynamic range, digital noise reduction and automatic gain control. Up to 10x optical/digital zoom is achievable in daylight mode (up to 4x in thermal mode). This camera provides a resolution of 700TVL and NTSC: 976x494; PAL: 976x582 picture elements. During thermal viewing, the unit can detect human targets at a distance of 1,000m (recognition @ 200m). For vehicle targets, detection is possible at a distance of 2,380m (recognition @ 500m). Thermal core standards include 17um 388 x 284/ 640 x 480 Uncooled Vanadium Oxide (VOx) LWIR. Operators are provided the following thermal palette controls: white hot, black hot and multiple color palettes. This camera is protected by a UV stabilized ABS plastic housing and adheres to MIL STD 810E standards (resistant to shock, vibration, sand and dust). Wiring: Link-up with the camera is achieved via a RJ45 (Cat5e) cable, which connects to the mini power center with a 12V DC plug as well as facilitates connection with the remote control and LCD display. The Cat5e cable is included with the system. Mounting: The compact thermal camera features a circular neodymium magnetic mount base for seamless mounting on magnetic surfaces. Tools are not required during setup or removal of the unit. The LCD monitor comes with a stand for secure viewing. Applications: Thermal monitoring, inspections, NDT, thermal scanning, remote observation, industrial, maintenance, repair and more.
