|GSLEDIP48-C1D2-1227Â Hazardous Location LED Lighting
|Lamp Type: LED
|Class 1 Division 2 Groups A,B,C,D
|Dimensions: Lamp 46.88"-L 2.68" -W 1.69"- D
|CSA 22.2 No. 250.0
|Weight: 2.8lb | 1.2 k g
|IP54 Ingress Protection
|Voltage: 120-240 VAC
|T3 Temperature Rating
|Lamp Life Expectancy: 100,000 Hours
|Amps: 2.64 A @12 VDC | 1.32 A @ 24 VDC
|Light Color: 6500K
|Beam Type:Â 100Â° Flood
|Mounting: Standard Triangle End Brackets
|Temp Range: -40Â°C â€“ +85Â°C
|Wiring: 5Ft Lead | White: + Black: -
|3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.

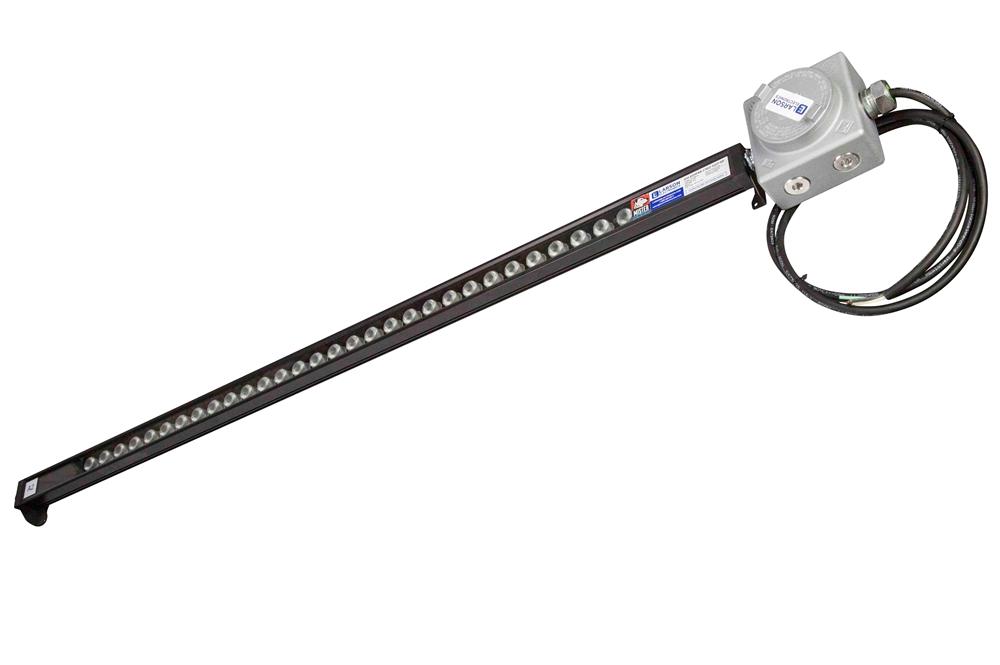

|Buy American Compliant The Larson Electronics GSLEDIP48-C1D2-1227 is aÂ high voltage hazardous location lighting solution approved for Class 1 Division 2 environments andÂ 1598 compliant for use in wet locations. This powerful 46.88" long LED strip light produces 2416 lumens, operates from 120Â to 240 VAC, and is suitable for a variety of applications. The GSLEDIP48-C1D2-1227 is designed to provide a high output and ruggedly durable lighting solution for applications where Class1 Division 2 compliance is required. This explosion proof light can be operated with voltages ranging fromÂ 120V to 240V AC and includes 5 feet of connecting SOOW cable and terminated in a 15 amp 5-15 explosion proof plug. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to splashing water and limited dust ingress. These units are configured in a 46.88" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures.
|Durability/Mounting: The GSLEDIP48-C1D2-1227 hazardous location LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP54 rated, providing limited ingress protection against dusts, and basic protection against splashing water such as rain. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered. The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. Mounting for this unit is provided by two standard adjustable end brackets that allow operators to mount the light to flat surfaces and then adjust the light 170Â° vertically for the best placement.Â The entire assembly weighs 2.8 lbs and measures 46.88 inches in length, and 2.68 inches wide and 1.69 inchesÂ deep, making it ideal for mounting in areas where space is limited and a low profile fixture more readily installed. Wiring/Power: These hazardous area LED lights are equipped with 5 feet of SOOW cord and is terminated in a ECP1523 explosion proof plug. These lights operate from 120Â to 240 volt AC current. Versatility: The GSLEDIP48-C1D2-1227 is ETL approved for Class 1 Division 2 groups A, B, C and D locations. This unit carries an IP54 water resistant rating ensuring protection against limited ingress from dusts, dirt, and basic protection against light water spray landing directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered.
