Description
PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

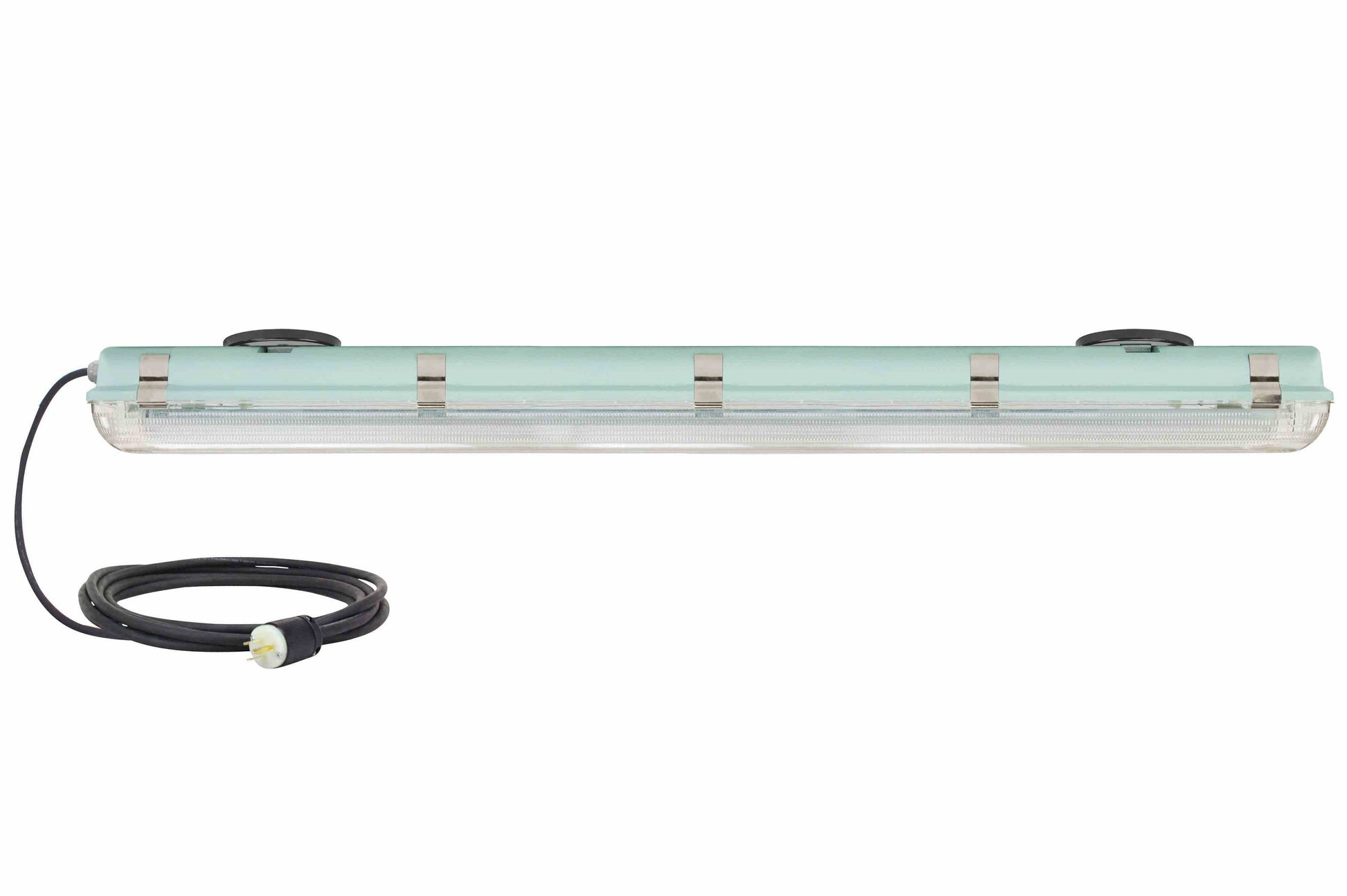

The Larson Electronics GVP-48-3L-LED-10C-GAP is similar to our popular explosion proof LED fixtures and provides an LED alternative to fluorescent fixtures that provides longer lamp life and higher performance. These 3 LED tube lamp fixtures produce more output with longer lamp life and are vapor proof and impact/ vibration resistant. Please note that this unit is vapor proof and not approved for use in hazardous locations.
The GVP-48-3L-LED-10C-GAP is equipped with three specially designed
LEDT8-28W-V1
LED T8-series bulbs which produce 3,500 lumens each and have a correlated color temperature of 4500K or 5600k. The GVP-48-3L-LED-10C-GAP, four foot long, three lamp LED light fixture is designed for those who wish to replace or upgrade from fluorescent equipped fixtures and offers better light output and longer lamp life with reduced maintenance costs. With no ballast and three solid state LED tube style lamps, this fixture draws 84 watts at 0.7 amps on a 120 volt power source while offering durability and versatility that common fluorescent fixtures cannot match.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the included LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature, and a lamp service life over twice that of standard fluorescent bulbs.
The 28 watt LED lamps produce 30% more illumination than standard T8 fluorescent bulbs. The GVP-48-3L-LED-10C-GAP is multi-voltage and operates on any voltage from 110V to 277V AC 50/60hz. We also offer this vapor proof fixture in a low voltage 12-24V DC configuration. Integral aluminum heat sink tube backings provide cool operation and long LED life, while a simple latching system seals the lens cover to the housing and provides easy access for re-lamping.
5-15 Straight Blade Plug
L5-15 Twist Lock Plug
L6-15 Twist Lock Plug
UK BS1363 Straight Blade Plug
Intl Schuko 2-Pin Plug
Flying Leads / Pigtail Wires
Wiring and Plug:
This explosion proof LED is equipped with 10 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
This unit is designed to be either surface mounted or hung from cable or chain and includes built in mounts. The GVP-48-3L-LED-10C-GAP light fixture is ideal for indoor-outdoor applications and suitable for use as general area lighting, shop lighting, work space lighting, garage and warehouse lighting, and anywhere a rugged and dependable fixture with high output and efficiency is needed. This light comes with a multi-purpose mounting bracket that can be used for a direct surface mount or reversed and used for chain hanging the unit.
Superior LED Benefits
1. 50,000 hour lifespan.
Specifications
Lamp Type: 2 LED Tubes
Dimensions: 49-3/4"L. X 5-7/8"W. X 4-3/16"H
Weight: 6.5 lbs.
Total Watts: 84 watts
Voltage: 120-277VAC 50/60 hz OR 12-24VDC
LED Lamp Life Expectancy: 50,000+ Hours
Beam Angle: 160 degrees
Ambient Temp: -25°C to +40°C
Efficiency: 90%
Total Lumens: 10,500
Color Temp:
Dimmable: No
Mounting: Surface or Chain Standard
Wiring: 10ft 16/3 SOOW with General App Cord Caps
Power Efficiency: 90%
Power Factor: >0.95
Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
Made in the USA
The Larson Electronics GVP-48-3L-LED-10C-GAP is similar to our popular explosion proof LED fixtures and provides an LED alternative to fluorescent fixtures that provides longer lamp life and higher performance. These 3 LED tube lamp fixtures produce more output with longer lamp life and are vapor proof and impact/ vibration resistant. Please note that this unit is vapor proof and not approved for use in hazardous locations.
The GVP-48-3L-LED-10C-GAP is equipped with three specially designed
LEDT8-28W-V1
LED T8-series bulbs which produce 3,500 lumens each and have a correlated color temperature of 4500K or 5600k. The GVP-48-3L-LED-10C-GAP, four foot long, three lamp LED light fixture is designed for those who wish to replace or upgrade from fluorescent equipped fixtures and offers better light output and longer lamp life with reduced maintenance costs. With no ballast and three solid state LED tube style lamps, this fixture draws 84 watts at 0.7 amps on a 120 volt power source while offering durability and versatility that common fluorescent fixtures cannot match.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the included LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature, and a lamp service life over twice that of standard fluorescent bulbs.
The 28 watt LED lamps produce 30% more illumination than standard T8 fluorescent bulbs. The GVP-48-3L-LED-10C-GAP is multi-voltage and operates on any voltage from 110V to 277V AC 50/60hz. We also offer this vapor proof fixture in a low voltage 12-24V DC configuration. Integral aluminum heat sink tube backings provide cool operation and long LED life, while a simple latching system seals the lens cover to the housing and provides easy access for re-lamping.
5-15 Straight Blade Plug
L5-15 Twist Lock Plug
L6-15 Twist Lock Plug
UK BS1363 Straight Blade Plug
Intl Schuko 2-Pin Plug
Flying Leads / Pigtail Wires
Wiring and Plug:
This explosion proof LED is equipped with 10 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
This unit is designed to be either surface mounted or hung from cable or chain and includes built in mounts. The GVP-48-3L-LED-10C-GAP light fixture is ideal for indoor-outdoor applications and suitable for use as general area lighting, shop lighting, work space lighting, garage and warehouse lighting, and anywhere a rugged and dependable fixture with high output and efficiency is needed. This light comes with a multi-purpose mounting bracket that can be used for a direct surface mount or reversed and used for chain hanging the unit.
Superior LED Benefits
1. 50,000 hour lifespan.
Specifications
Lamp Type: 2 LED Tubes
Dimensions: 49-3/4"L. X 5-7/8"W. X 4-3/16"H
Weight: 6.5 lbs.
Total Watts: 84 watts
Voltage: 120-277VAC 50/60 hz OR 12-24VDC
LED Lamp Life Expectancy: 50,000+ Hours
Beam Angle: 160 degrees
Ambient Temp: -25°C to +40°C
Efficiency: 90%
Total Lumens: 10,500
Color Temp:
Dimmable: No
Mounting: Surface or Chain Standard
Wiring: 10ft 16/3 SOOW with General App Cord Caps
Power Efficiency: 90%
Power Factor: >0.95
Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
