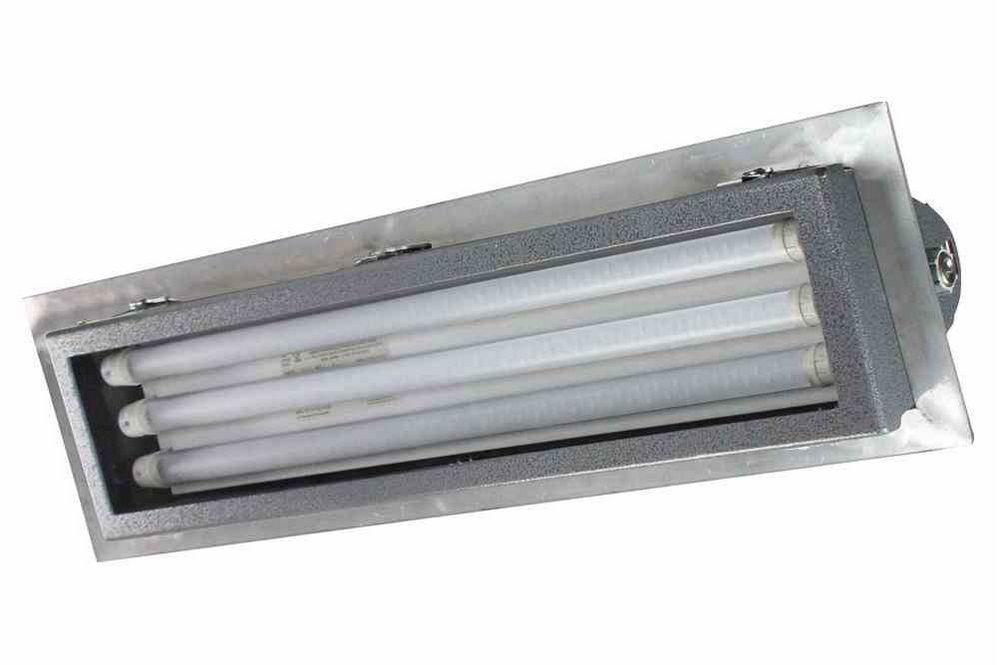

C1D2 Explosion Proof UV Fluorescent Fixture - (3) 2' T8 UV Lamps - 120-277V AC - Flange Mount
C1D2 Explosion Proof UV Fluorescent Fixture - (3) 2' T8 UV Lamps - 120-277V AC - Flange Mount
Sold by: LARSON ELECTRONICS
| HAL-24-3L-BMSW-BL-UV-FLGM Flange Mount UV Fixture | Ratings/Approvals |
| NRTL Listed for United States & Canada | Class I, Division 2, Groups A,B,C,D |
| Dimensions: W-7" L-25 1/2" H-6 1/8" | NRTL Certified to UL 595 Outdoor Marine Type (Saltwater) |
| Weight: - | NRTL Certified to UL 1598A Marine Type |
| Total Watts: - | (3) 2` T8 UV Fluorescent Lamps |
| Voltage: 120-277V AC | Glass Lens |
| Lamp Life Expectancy: 15,000 Hours | T4A Rated |
| UV Bands: UVA (400nm - 315nm), UVB (315nm - 280nm) or UVC (280nm - 100nm) | |
| Beam Angle: 150° | |
| Operating Temp Range: -30°C to 85°C | |
| Materials: Copper-free Aluminum Alloy | Toll Free: 1-800-369-6671 |
| Lens: Glass | Intl: 1-214-616-6180 |
| Mounting: Flange Mount | |
| Wiring Hub: 1/2" or 3/4" Threaded |
| Made in the USA The Larson Electronics HAL-24-3L-BMSW-BL-UV-FLGM Explosion Proof UV Fluorescent Fixture provides ultraviolet illumination in Class I, Division 2 locations. This unit features three, 2` T8 UV fluorescent lamps, housed in a copper-free aluminum housing and protected by a glass lens. This luminary caters to flange mounting and operates on 120-277V AC. The HAL-24-3L-BMSW-BL-UV-FLGM is a fluorescent-based UV lighting system for Class I, Division 2 facilities. Consisting of three, 2` T8 fluorescent lamps, the luminary provides a wide beam angle of 150 degrees during operation. The outdoor, marine-type fixture boasts an expected lifespan of 15,000 hours and an operating temperature range of -30°C to 85°C. The explosion proof UV lamp, which operates on 120-277V AC, is constructed of copper-free aluminum alloy and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. A glass lens protects the unit and provides robust transmission of UV light during operation. Designed for Class I, Division 2 work sites, the fluorescent fixture is offered in the following UV wavelength ranges: UVA (400nm - 315nm), UVB (315nm - 280nm) or UVC (280nm - 100nm). Mounting/Wiring: The HAL-24-3L-BMSW-BL-UV-FLGM features a flange mounting system. Flange brackets on the housing facilitate seamless drop-in mounting for operators, making it suitable for installations in tight spaces. Power connections to the explosion proof UV unit can be completed via an accessible, threaded wiring hub (1/2" or 3/4"). Applications: Aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants, hazardous locations, inspections, paint spray booths, NDT, curing, laboratory analysis, chemistry and more. |
