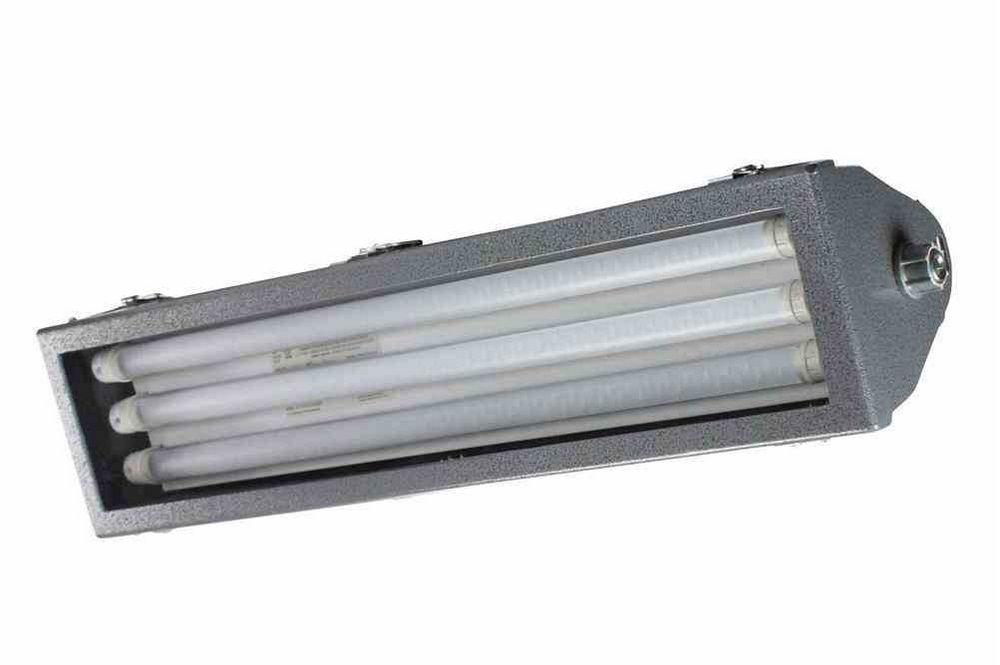

C1D2 Explosion Proof UVA Fluorescent Fixture - (3) 2' T8 UV-A Lamps - 120-277V AC
C1D2 Explosion Proof UVA Fluorescent Fixture - (3) 2' T8 UV-A Lamps - 120-277V AC
Sold by: LARSON ELECTRONICS
| HAL-24-3L-BMSW-BL-UVA Surface Mount UV Fixture | Ratings/Approvals |
| NRTL Listed for United States & Canada | Class I, Division 2, Groups A,B,C,D |
| Dimensions: 7"W x 25-1/2"L x 6-1/8"H | NRTL Certified to UL 595 Outdoor Marine Type (Saltwater) |
| Weight: - | NRTL Certified to UL 1598A Marine Type |
| Total Watts: - | (3) 2` T8 UV Fluorescent Lamps |
| Voltage: 120-277V AC | Glass Lens |
| Lamp Life Expectancy: 15,000 Hours | T4A Rated |
| UV Bands: UVA (400nm - 315nm) | |
| Beam Angle: 150° | |
| Operating Temp Range: -30°C to 85°C | |
| Materials: Copper-free Aluminum Alloy | Toll Free: 1-800-369-6671 |
| Lens: Glass | Intl: 1-214-616-6180 |
| Mounting: Back Mount Swivel Bracket | |
| Wiring Hub: 1/2" or 3/4" Threaded |
| Made in the USA The HAL-24-3L-BMSW-BL-UVA from Larson Electronics is an Explosion Proof UV Fluorescent Fixture that provides ultraviolet illumination in Class I, Division 2 locations. This unit features three, 2` T8 UV fluorescent lamps, housed in a copper-free aluminum housing and protected by a glass lens. This luminary caters to surface mounting and operates on 120-277V AC. The HAL-24-3L-BMSW-BL-UVA is a fluorescent-based UV lighting system for Class I, Division 2 facilities. Consisting of three, 2` T8 fluorescent lamps, the luminary provides a wide beam angle of 150 degrees during operation. The outdoor, marine-type fixture boasts an expected lifespan of 15,000 hours and an operating temperature range of -30°C to 85°C. The explosion proof UV lamp, which operates on 120-277V AC, is constructed of copper-free aluminum alloy and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. A glass lens protects the unit and provides robust transmission of UV light during operation. Designed for Class I, Division 2 work sites, the fluorescent fixture is offered in the following UV wavelength ranges: UVA (400nm - 315nm). Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two bolts on either side of the bracket. The bolts act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be pivoted by loosening the that hold the bracket to the mounting peg. This fixture allows 45 degrees of pivot from the 90 degree point. Wiring: Power connections to the explosion proof UV unit can be completed via an accessible, threaded wiring hub (1/2" or 3/4"). Suggested Applications: Aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants, hazardous locations, inspections, paint spray booths, NDT, curing, laboratory analysis, chemistry and more. |
