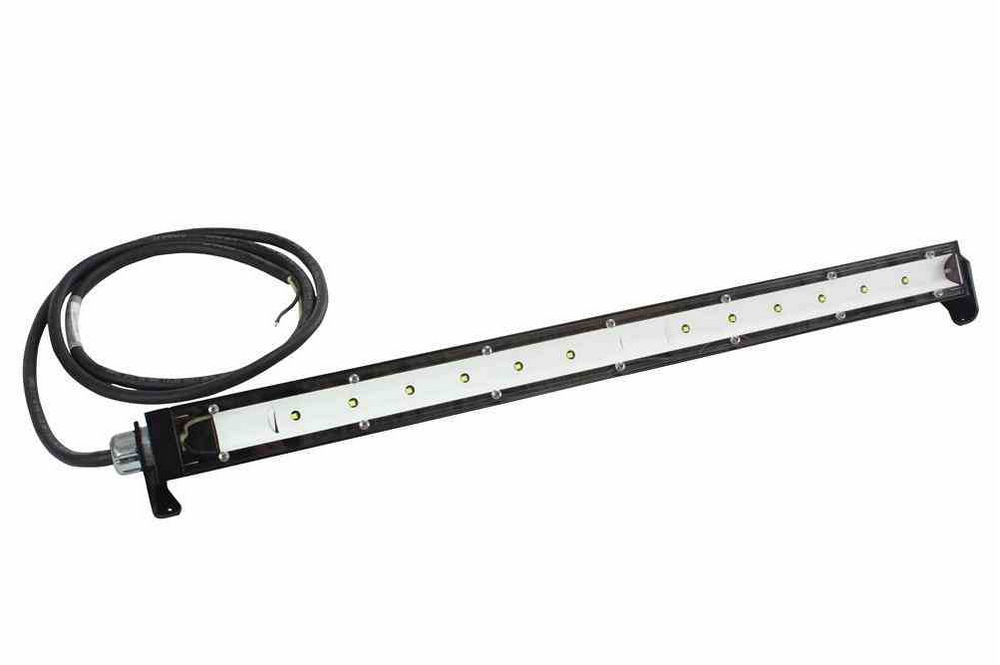

25 Watt Low Profile LED Fixture for Hazardous Location Lighting - 36" Length - 12/24 Volts DC

LARSON ELECTRONICSSKU: PL3-HAL-36-25W-LED
filler

Price:
Sale price$839.99

Description

Specifications / Additional Information
HAL-36-25W-LED Hazardous Location LED Lighting Ratings/Approvals
Lamp Type: LED United States & Canada
Dimensions: Lamp 35.88"-L 2.68" -W 1.69"- D Class I Division 2 Groups A,B,C,D
Weight: 2.1lb | 0.9 k g CSA 22.2 No. 250.0
Watts: 25 UL 1598
Voltage: 12-24V DC IP54 Ingress Protection
Lumens: 1812 T3 Temperature Rating
Lamp Life Expectancy: 100,000 Hours
CRI: 75
Amps: 1.3 A @ 12V DC | 0.66 A @ 24V DC
Light Color: 6500K
Beam Type: 100° Flood
Mounting: Standard Triangle End Brackets
Temp Range: -40°C - +85°C
Wiring Hub: 3/4"-14
Wiring: 6Ft 16/2 Lead | White: + Black: - E-mail:

' Product Overview '
Buy American Compliant The Larson Electronics HAL-36-25W-LED is a low voltage hazardous location lighting solution approved for Class I Division 2 environments and UL 1598 listed for use in wet locations. This powerful 36" long LED strip light produces 1812 lumens, operates from 12 or 24V DC, and is suitable for a variety of applications. The HAL-36-25W-LED is designed to provide a high output and ruggedly durable lighting solution for applications where Class I Division 2 compliance is required. This low voltage explosion proof light can be operated with either 12 or 24 volt DC current and includes 6 feet of connecting lead with standard two wire configuration. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to splashing water and limited dust ingress. These units are configured in a 36" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Durability/Mounting: The HAL-36-25W-LED hazardous area LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP54 rated, providing limited ingress protection against dusts, and basic protection against splashing water such as rain. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered. The LEDs in this linear light are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. Mounting for this unit is provided by two standard adjustable end brackets that allow operators to mount the light to flat surfaces and then adjust the light 170° vertically for the best placement. The entire assembly weighs 2.1 lbs and measures 35.88 inches in length, 2.68 inches wide and 1.69 inches deep, making it ideal for mounting in areas where space is limited and a low profile fixture is more readily installed. Wiring/Power: These hazardous location LED lights are equipped with 6 feet of cord containing a standard two wire (White+ Black-) connecting configuration. These lights operate from 12 or 24 volt DC current at 25.2 watts 1.3 amps on 12V DC and .66 amps on 24V DC. Versatility: The HAL-36-25W-LED is ETL approved for Class I Division 2 groups A, B, C and D locations. This unit carries an IP54 water resistant rating ensuring protection against limited ingress from dusts, dirt, and basic protection against light water spray landing directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered.
