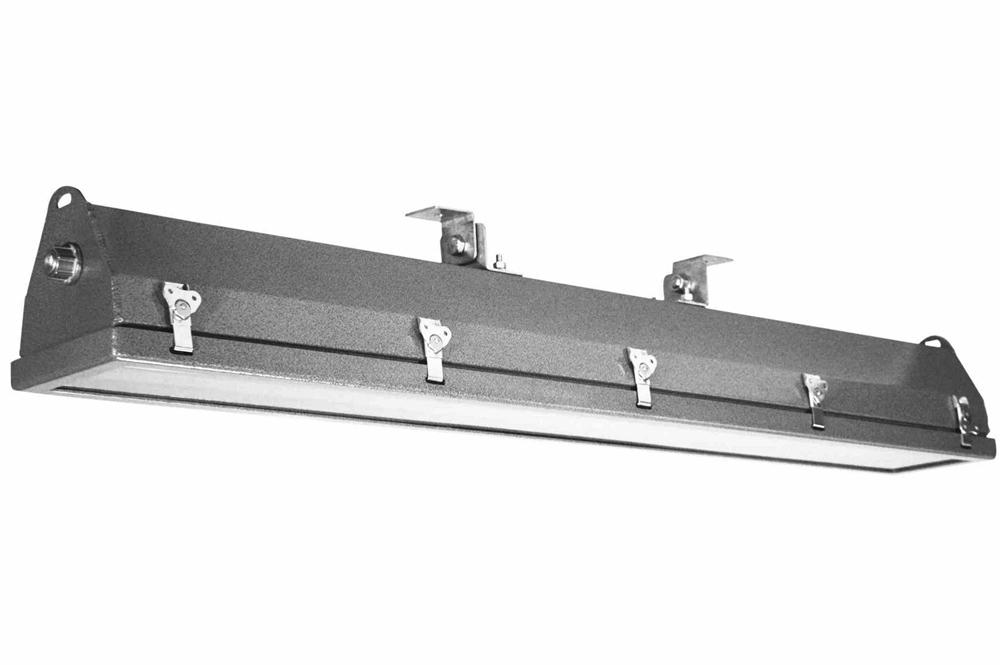

Class I Div 2 Pivoting Light - 4 Foot 2 Lamp - Offshore Fluorescent Rig Light - Meets USCG Specs - Glass Lens

LARSON ELECTRONICSSKU: PL3-HAL-48-2L-BMSW-BL
filler

Price:
Sale price$1,307.99

Description

Specifications / Additional Information
HAL-48-2L-BMSW-BL Hazardous Area Ratings/Approvals
NRTL Listed for United States & Canada Class I Division 2, Groups A, B, C & D
Dimensions: 51.1"-L x 7.09"-W x 8.65"-H NRTL Certified to UL 844
Weight: 25.7 Lbs NRTL Certified to UL 1598A Marine Type
Total Watts: 108 watts* Listed for Canada
Total Lumens: 10,000 T4 Temperature Rating
Voltage: Universal 120-277V AC Meets USCG Specs
Lamp Life Expectancy: 20,000 Hours (T5HO) California Title 24 Compliant
Luminous Efficiency: 90 Lumens per Watt
Operating Temp Range: T4A rated -40°C to +65°C
Beam Angle: 150°
Color Temp: 5000K or 4000K - Color Rendering Index-75
Mounting: Back Mount Swivel Bracket Toll Free: 1-800-369-6671
Wiring Hub: 1/2" or 3/4" threaded Intl: 1-214-616-6180
Materials: Sheet aluminum housing, Fax: 1-903-498-3364
Lens Materials: Hardened Borosilicate Glass E-mail:
*Lamp wattage may vary depending on lamp choice selected
' Product Overview '
Made in the USA The Larson Electronics HAL-48-2L-BMSW-BL Hazardous Area Fluorescent Light Fixture is NRTL Listed for United States and Canada Class I Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. This hazardous location light carries a United States Coast Guard approval, making it ideal for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers. This four foot long, two lamp fluorescent fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals.  This fixture is T4A temperature rated and comes standard with 54 watt T5HO lamps producing a combined total of 10,000 lumens. We also offer T8 or T12HO lamps as alternatives. The lamps are protected by a powder coated aluminum frame and glass lens secured with ten zinc coated steel draw latches. This fixture carries a T4A temperature rating and is NRTL Certified to U.L. 595 and UL 1598A Marine Type approved for use in marine environments. The fixture is constructed of copper free sheet aluminum and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The HAL-48-2L-BMSW-BL is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge
Energy Consumption Comparison
T5HO T8 LED
Wattage 108 watts 64 watts 56 watts
Amp Draw @ 120V AC 0.90 amps 0.54 amps 0.47 amps
Amp Draw @ 220V AC 0.49 amps 0.29 amps 0.25 amps
Amp Draw @ 240V AC 0.45 amps 0.27 amps 0.23 amps
Amp Draw @ 277V AC 0.39 amps 0.24 amps 0.20 amps
Amp Draw @ 12V DC 9 amps 5.34 amps 4.67 amps
Amp Draw @ 24V DC 4.5 amps 2.67 amps 2.34 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Color Temperature 5000K / 4100K 4100K 5600K
Operation cost per year (12hs/day @ 12c/kWh) $56.77 $33.64 $29.43
Mounting Options: Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown enlarged below. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations. Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two bolts on either side of the bracket. The bolts act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be pivoted by loosening the that hold the bracket to the mounting peg. This fixture allows 45° of pivot from the 90° point. Suggested Applications: Aircraft maintenance, oil drilling rigs, refineries, marine and salt water environments, ships, tankers, offshore, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed streamlined ribbed corrosion-resistant, copper free sheet aluminum body for better hear dissipation and extended ballast life. 4. Aluminum lens frame for greater strength 5. Re-lamping done via 10 draw latches, which enable the operator to unlatch the lens and access the lamps. 5. Heavy gauge aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. 1/2" or 3/4", threaded access hole for wiring conduit. 7. Units can be wired end to end in series. F54-T5/850/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color F54-T5/841/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours life, 4100 Kelvin color F48-T12/HO – 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color  F32-T8/850– 2950 lumens per bulb, 24,000 hours life, 5000 Kelvin color F32-T8/841– 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color
