HAL-48-2L Fluorescent Light - C1 D II - Hazardous Location Areas - Sliding Bracket Mount

HAL-48-2L Fluorescent Light - C1 D II - Hazardous Location Areas - Sliding Bracket Mount

$1,560.00 CAD
$1,560.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
HAL-48-2L-SBM Hazardous Area Ratings
NRTL Listed for United States & Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-7"   L-49 3/4 "   H-6 1/8 " NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Weight: 33 Lbs NRTL Certified to UL 1598A Marine Type
Total Watts: 108 watts* California Title 24 Compliant
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz
Total Lumens: STD-T5-HO Bulbs 10,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs  92 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C
Beam Angle: N/A
Color Temp: 5000K- T5-HO Bulbs
Minimum Operating Temp: -30 C
Wiring Hub: 1/2" or 3/4" threaded
Maximum Case Temp: 90 C


*Wattage totals are lamps only and may vary with different lamps.
' Product Overview '

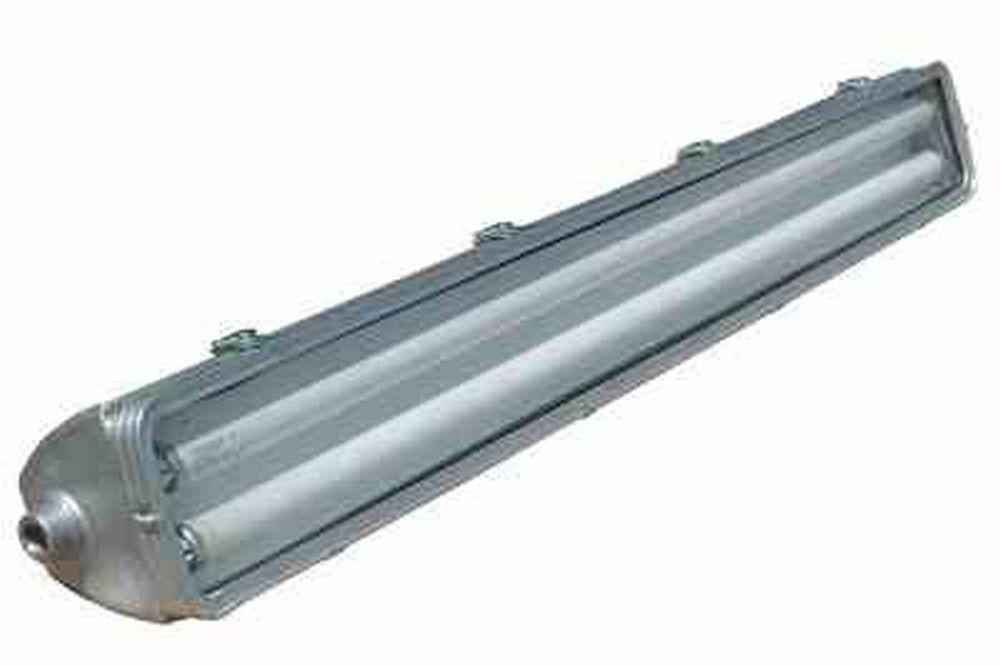

Made in the USA The Larson Electronics HAL-48-2L-SBM  Hazardous Area Fluorescent Light Fixture is NRTL Listed for United States and CanadaClass 1 Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors may be occassionally encountered. The HAL-48-2L fixture is a 4 foot long, 2 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in applications where space is at a premium. This fixture is T4A temperature rated, comes standard with F54-T5/850/HO bulbs, and is available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed shatter and heat resistant clear acrylic lens secured with ten draw latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and is NRTL Certified to U.L. 595 and UL 1598A Marine Type approved for use marine environments. The HAL-48-2L provides operators in hazardous locations with a compact, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo Enlarge Click Photo Enlarge Click Photo Enlarge
Sliding Mount Brackets: This light is equipped with an adjustable sliding bracket mount design that allows greater mounting adjustability. Each bracket can be loosened and slid along the housing to lengthen or shorten the distance between brackets. The angle can also be adjusted to allow better directional control of the light output. These brackets are heavy gauge for durability and include stainless steel mounting hardware for corrosion resistance. NOTE ON LAMPS: This fixture comes equipped with F54-T5/850/HO – 54 Watt lamps producing 5,000 lumens per bulb, a 5000 Kelvin color and a 20,000 hour rated service life. We offer F48-T12/HO – 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color and F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this fixture. The HAL-48-2L has an electronic multi-voltage ballast and works with 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectrically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed streamlined ribbed corrosion-resistant, copper free extruded aluminum body for better hear dissipation and extended ballast life.   4. Aluminum extruded lens frame for greater strength 5. Relamping done via 10 draw latches, which enable the operator to unlatch the lens and access the lamps. 6. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 7. 1/2" or 3/4", threaded access hole for wiring conduit.  8. Units can be wired end to end in series. F54-T5/850/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color  F48-T12/HO – 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color  F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color  F48-T8/HO - 48 watt, 4000 lumens per bulb, 18,000 hours life, 4100 Kelvin color (Suffix -T8HO)
