33 Watt Low Voltage LED Fixture for Hazardous Location Lighting - Low Profile Linear Fixture - C1D2 - 120-277V AC


Sale price$801.99


Specifications / Additional Information
HAL-48-33W-LED-1227 Hazardous Location LED Lighting ETL Listed
Lamp Type: LED Class I Division 2 Groups A,B,C,D
Dimensions: 46.88"L x 2.68"W x 3.69"D NRTL Certified to CSA 22.2 No. 250.0
Weight: 2.8 lb | 1.2 k g NRTL Certified to UL 598
Watts: 33.6 IP54 Ingress Protection
Voltage: 120-277 V AC, 50/60 Hz T3 Temperature Rating
Lumens: 2416
Lamp Life Expectancy: 100,000 Hours
CRI: 75
Light Color: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, or 2700K  Special Orders - Requirements
Beam Type: 100° Flood or 30° Spot
Mounting: Standard Triangle End Brackets
Temp Range: -40°C – +85°C
Wiring: 5Ft Lead | White: + Black: - E-mail:
' Product Overview '

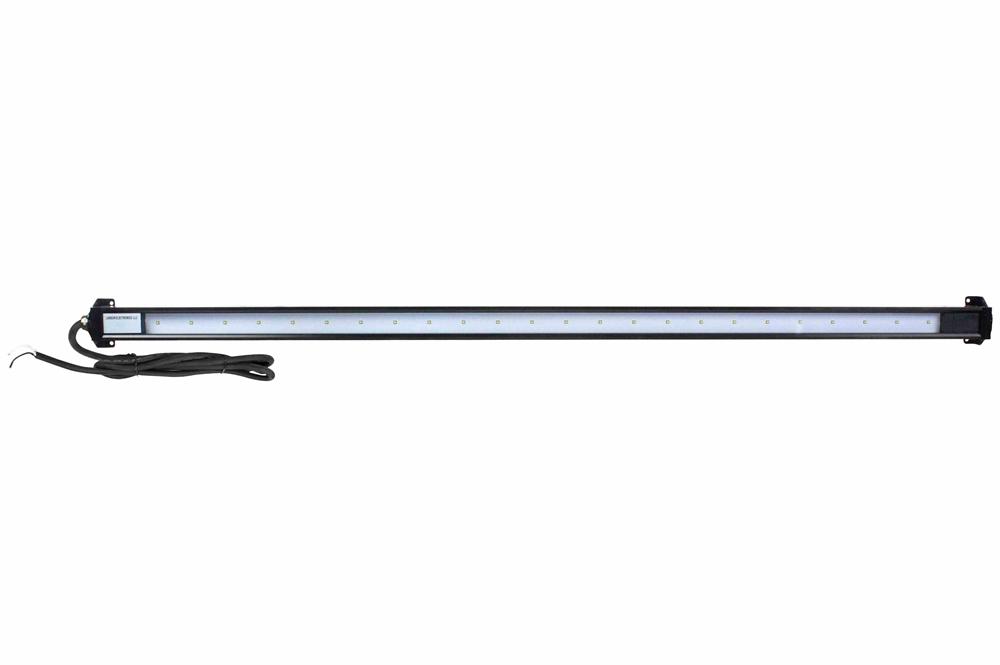

Buy American Compliant The Larson Electronics HAL-48-33W-LED-1227 is a low voltage hazardous location lighting solution approved for Class I Division 2 environments and UL 1598 listed for use in wet locations. This powerful 46.88" long LED strip light produces 2416 lumens, operates on 120-277 V AC, 50/60 Hz, and is suitable for a variety of applications. The HAL-48-33W-LED-1227 is designed to provide a high output and ruggedly durable lighting solution for applications where Class1 Division 2 compliance is required. This low voltage explosion proof light can be operated on 120-277 V AC, 50/60 Hz current and includes 5 feet of connecting lead with standard two wire configuration. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to splashing water and limited dust ingress. These units are configured in a 46.88" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures. Durability/Mounting: The HAL-48-33W-LED-1227 hazardous location LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP54 rated, providing limited ingress protection against dusts, and basic protection against splashing water such as rain. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered. The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. Mounting for this unit is provided by two standard adjustable end brackets that allow operators to mount the light to flat surfaces and then adjust the light 170° vertically for the best placement. The entire assembly weighs 2.8 lbs and measures 46.88 inches in length, and 2.68 inches wide and 3.69 inches deep, making it ideal for mounting in areas where space is limited and a low profile fixture more readily installed. Wiring/Power: These hazardous area LED lights are equipped with 5 feet of cord containing a standard two wire (White+ Black-) connecting configuration. These lights operate on 120-277 V AC, 50/60 Hz current. Versatility: The HAL-48-33W-LED-1227 is ETL approved for Class I Division 2 groups A, B, C and D locations. This unit carries an IP54 water resistant rating ensuring protection against limited ingress from dusts, dirt, and basic protection against light water spray landing directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered.
