33 Watt High Voltage LED Hazardous Location Fixture - 120-240V - Hardwired 3/4" NPT Hub

LARSON ELECTRONICSSKU: PL3-HAL-48-33W-LED-JB-1227-JB
filler

Price:
Sale price$2,309.99

Description

Specifications / Additional Information
HAL-48-33W-LED-JB-1227-JB Hazardous Location LED Lighting ETL Listed
Lamp Type: LED Class 1 Division 2 Groups A,B,C,D
Dimensions: Lamp 46.88"-L 2.68" -W 1.69"- D CSA 22.2 No. 250.0
Weight: 2.8lb | 1.2 k g 598
Watts: 33.6 IP54 Ingress Protection
Voltage: 120-277 VAC T3 Temperature Rating
Lumens: 2416
Lamp Life Expectancy: 100,000 Hours
CRI: 75
Amps: 2.64 A @12 VDC | 1.32 A @ 24 VDC
Light Color: 6500K
Beam Type:100° Flood
Mounting: Standard Triangle End Brackets
Temp Range: -40°C - +85°C
Wiring: Junction Box w/ Terminal Strips - User Provided Cable E-mail:

' Product Overview '

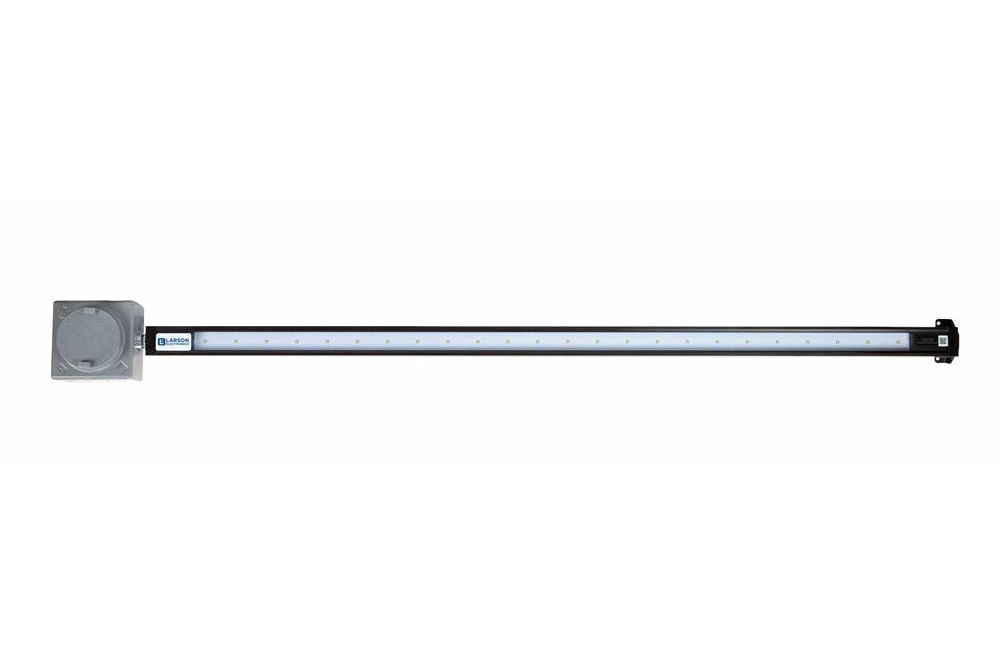

Buy American Compliant The Larson Electronics HAL-48-33W-LED-JB-1227-JB is a high voltage hazardous location lighting solution approved for Class 1 Division 2 environments and 1598 compliant for use in wet locations. This powerful 46.88" long LED strip light produces 2416 lumens and operates on 120 to 277 VAC with a hard wired connection, suitable for a variety of applications. The HAL-48-33W-LED-JB-1227-JB is designed to provide a high output and ruggedly durable lighting solution for applications where Class1 Division 2 compliance is required. This explosion proof light can be operated with voltages ranging from 120 to 277 and includes a hard wired juction box with terminal strips. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to splashing water and limited dust ingress. These units are configured in a 46.88" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures.
Durability/Mounting: The HAL-48-33W-LED-JB-1227-JB hazardous location LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP54 rated, providing limited ingress protection against dusts, and basic protection against splashing water such as rain. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered. The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. Mounting for this unit is provided by two standard adjustable end brackets that allow operators to mount the light to flat surfaces and then adjust the light 170° vertically for the best placement. The entire assembly weighs 2.8 lbs and measures 46.88 inches in length, and 2.68 inches wide and 1.69 inches deep, making it ideal for mounting in areas where space is limited and a low profile fixture more readily installed. Wiring/Power: This hazardous area LED light assembly is a hard wired unit with terminal strips in a junction box. Customers must provide a cable to bring rigid conduit directly to the junction box. Versatility: The HAL-48-33W-LED-JB-1227-JB is ETL approved for Class 1 Division 2 groups A, B, C and D locations. This unit carries an IP54 water resistant rating ensuring protection against limited ingress from dusts, dirt, and basic protection against light water spray landing directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered.
