Hazardous Location Network IP Camera - C1D2 - 4.0MP Resolution - 20FPS - Low Light IR Array

LARSON ELECTRONICSSKU: PL3-HAL-CMR-CRNM-IP-POE-4MP-IR
filler

Price:
Sale price$1,281,611.99

Description

Specifications / Additional Information
HAL-CMR-CRNM-IP-POE-4MP-IR Network Hazardous Location Camera Quick Summary
Dimensions: 8"L x 6"W x 13"H Class I, Division 2, Groups A, B, C, D
Camera Weight: 6 lb UL 595: Marine Outside Type
Total Watts: 5W (Max) UL 844
Power Source: PoE (802.3af) UL Listed to CSA 22.2-137
Image Sensor: 1/3" Progressive Scan CMOS sensor NEMA 4X
Signal System: NTSC USCG Accepted
Video Resolution: 4.0MP (2688*1520) CSA Approved New York City Department of Buildings
Frame Rate: Up to 20fps @ 2688*1520 resolution Approved Materials Meet UL 94-V-0 for Flame Retardancy
Compression Type: H.264, H.264 OVC, MJPEG ETL Listing
Bit Rate: 32Kbps - 16Mbps UL 1598A
Focal Length: 4mm WDR (Wide Dynamic Range) for Auto Adjusting
Max Field of View: 83°
Shutter Speed: 1/3s to 1/10,000s
Min. Illumination: 0.01 lux (Color) / 0 lux (IR)
IR Range: 45 ft
Day/Night: True D/N w/Mechanical Cut Filter
Digital Noise Reduction: 3D DNR
Ethernet Interface: RJ45
Ethernet Speed: 10/100
Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more
Remote Configuration: Yes
Ambient Temperature Range: -22°F to +140°F
Housing/Lens Materials: Polycarbonate
Mounting: Adjustable Bracket w/ Set Screws
Wiring Hub: (2) 3/4" NPT
' Product Overview '

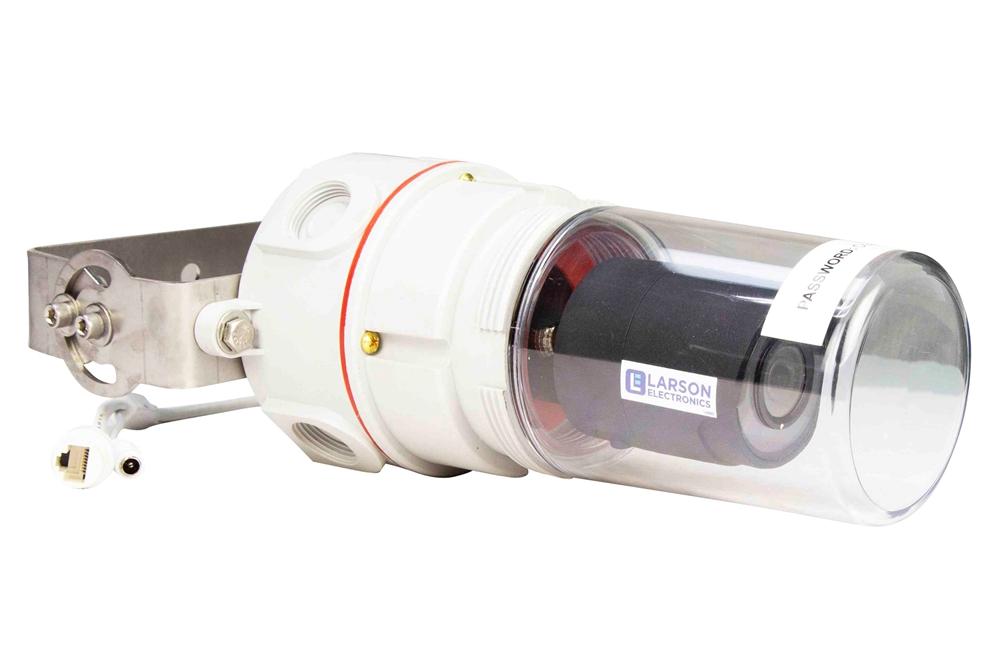

The HAL-CMR-CRNM-IP-POE-4MP-IR Hazardous Location Network Camera from Larson Electronics is a remote inspection camera specifically designed for observation in hazardous locations. This dust/ignition proof, weather proof and tamper resistant camera provides the operator with a live feed from inside tanks, reactors, vessels or other hazardous locations. Equipped with a polycarbonate housing, this remote inspection camera saves both time and money as well as contributing to workplace safety. Camera Features: The HAL-CMR-CRNM-IP-POE-4MP-IR features a built-in 1/3" progressive-scan CMOS image sensor that delivers up to 4.0MP resolution at 20 fps. The wide angle fixed lens with 83° field of view covers a large area, and an integrated IR LED array provides the operator with low light and nighttime visibility up to 45`. The camera automatically switches from full color to IR mode when visible light falls below a certain level. This remote inspection camera utilizes Advanced Infrared Technology, 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut filter Removal to produce clear images in variable and low light conditions. This hazardous location camera provides a crisp and clear image for everything within the 83° focal area. Total distance is dependent on mounting height and angle. The HAL-CMR-CRNM-IP-POE-4MP-IR features a housing that is waterproof and constructed of corrosion and chemical resistant polycarbonate with a polycarbonate cover. Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well. Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location, and non-classified NVR`s to work in conjunction with this hazardous location camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each steam can be configured to different resolutions and frame rates. Mounting: This unit is typically mounted to flat surfaces for observation. The included adjustable flat surface bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust the camera`s tilt orientation, and retighten to hold the camera in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the camera by loosening one bolt. Accessory pole mounts and magnetic mounts are available. Applications: Hazardous locations, vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.
