Class 1, Division 2 Chemical Resistant Incandescent Light - 75 Watts - Non-Metallic

LARSON ELECTRONICSSKU: PL3-HAL-CRNM-75W
filler

Price:
Sale price$762.00

Description

Specifications / Additional Information
HAL-CRNM-75W U.L Ratings
Lamp Type: Incandescent Class 1,Division 2 Groups A,B,C,D
Lamp Dimensions: 5.94" OD , 9.60" Height (Ceiling Mount) UL 595: Marine Outside Type
Lamp Weight: N/A UL 844: Class1 Division 2 Hazardous Location
Hub: 3/4" NPT C-UL 1570
Lumens: Approx: 1200 NEMA 4X
Voltage: 120 Volts 60hzAC, 240 Volts AC, 12/24 VDC -29C to 40C (-29F to 104F) Op Temp
Lighting Configuration: Steady Burn USCG Accepted
Mounting: Ceiling, Wall, Pendant CSA Certified
Temp Rating: T2D New York City Department of Buildings approved
Lamp Watts: 75 Watts Material meets UL 94-V-0 standards for flame retardancy
Lamp Life: Approx 2,000+ Hours ETL Listings
Strobe Count: N/A CSA standard for Luminaires
Wiring: 3/4 inch Hub UL 1598A
UL for Safety for supplemental Requirements for Luminaires for Installation on Marine Vessels
' Product Overview '

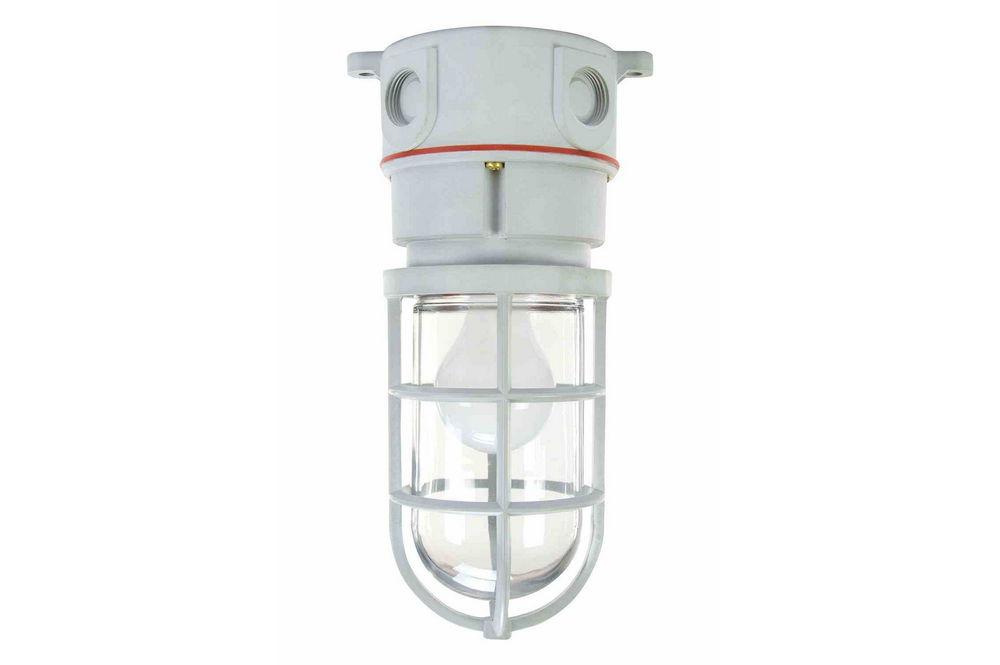

Made in the USA The HAL-CRNM-75W Class 1, Division 2 Chemical Resistant Light from Larson Electronics is UL rated Class1 Division 2, and designed with a non-metal housing for resistance to chemicals and corrosion. This waterproof incandescent bulb equipped light is pendant, ceiling, or wall mounted, and available in 120 - 240 Vac, and 12 - 24 VAC voltage configurations. The powerful and durable HAL-CRNM-75W explosion proof light from Larson Electronics is ideal forindustrial applications, hazardous work spaces, and areas where gases and vapors may be present and a reliable and durable general purpose light solution is needed. The lamp housing is waterproof, constructed of corrosion and chemical resistant GE Lexan polycarbonate with Pyrex globe, USCG accepted, and NEMA 4X compliant and suitable for hose-down areas. This unit is fitted with a 75 watt incandescent lamp for economical and reliable operation and is available in 120-220- 240 VAC and 12/24 VDC configurations for use with standard and low voltages.
This hazardous area light carries a T2D temperature rating and has a -29C to 40C (-29F to 104F) operating temp range. The HAL-CRNM-75W carries UL 1570/1571 and UL 595 compliance and is waterproof and suitable for spray down areas and marine locations. Wiring is through 3/4" NPT hubs. This light carries UL and CSA certification, USCG acceptance, UL 1570/1571 approval for wet locations in any orientation, UL595 approval for marine environments, and NEMA 4X compliance for hose down areas. The 75 watt bulb in this unit offers high output and economical operations, and is protected by a Pyrex globe and polycarboate globe guard. We also offer this fixture fitted with compact fluorescent and LED bulbs for higher efficiency and longer life than incandescent bulbs.The unit shown is ceiling mount, and we offer pendant and wall mount versions as well for added installation versatility. The HAL-CRNM-75W is designed for resistance to the damaging and corrosive effects of chemicals with polycarbonate construction instead of metal and is ideal for locations where these hazardous compounds are commonly encountered. Voltages: 120-240VAC 50/60Hz - 12/24 VDC Wiring is through 3/4" NPT hubs. Temp Code: Class 1 T2D 215°C° C (Do not install where the operating temperature exceeds the ignition temperature of the hazardous atmosphere.)
