10W Chemical Resistant LED Light - C1D2 / C1D2 - Corrosion Resistant - Motion Sensor
10W Chemical Resistant LED Light - C1D2 / C1D2 - Corrosion Resistant - Motion Sensor
| Hazardous Location Non-Metallic LED Light | Ratings/Approvals |
| Unit Type: Explosion Proof Light | Listed for United States and Canada |
| Lamp Dimensions (Ceiling Mount): 10.84"H x 4.75"OD | Class I, Division 2, Groups A, B, C, D |
| Lamp Dimensions (Wall Mount): 7.3"L x 5.19"W x 12.26"H | Class I, Zone 2, Groups IIC, IIB, IIA |
| Motion Detector Dimensions: 7"-W x 5"-H x 9"-D | Class II, Division 2, Groups F, G |
| Detection: Motion | IP66 |
| Detection Coverage: 15` x 15` (when mounted at 16`) | NEMA 3, 4, 4X |
| Tilt Angles: -90° to +30° in elevation | UL 844 Hazardous Locations |
| Voltage: 120V, 220-240V, 12V DC or 24V DC | UL 1598/UL 1598A Marine |
| Output Hold Time: 0.5 seconds to 15 minutes (Adjustable) | CSA C22.2 No. 137 Hazardous Locations |
| Mains Frequency: 50/60 Hz | UL 94-V-0 Flame Retardant |
| Radiated Frequency: 5.8 GHz | USCG Accepted |
| ABS Type Approved | |
| Lamp Type: A19 LED | New York City Department of Buildings Approved |
| Lamp Watts: 10W | Motion Sensor |
| Lumens: 1,050 | |
| Luminous Efficacy: 105 Lm/W | |
| Lamp Life: 50,000+ Hours | |
| Color Temp: 6000K, 4500K, 3000K, Red, Blue, Amber, or Green | |
| Color Rendering Index: >80 CRI | |
| Beam Angle: Omni-Directional | |
| Lighting Configuration:Steady Burn | |
| Power Efficiency: >95% |  |
| Power Factor: 0.992 | |
| Amp Draw: 0.083A @ 120V, 0.042A @ 240V, 0.42A @ 24V | |
| Ambient Operating Temp Range: -50° C to +85°C | |
| Operating Temp Rating: T2D | |
| Housing Material: Polycarbonate | |
| Lens Material: Hardened Borosilicate Glass | |
| Mounting: Ceiling or Wall | Toll Free: 1-800-369-6671 |
| Wiring Hub: 3/4" NPT | Intl: 1-903-270-1187 |
| Weight: 9 lbs | E-mail: |

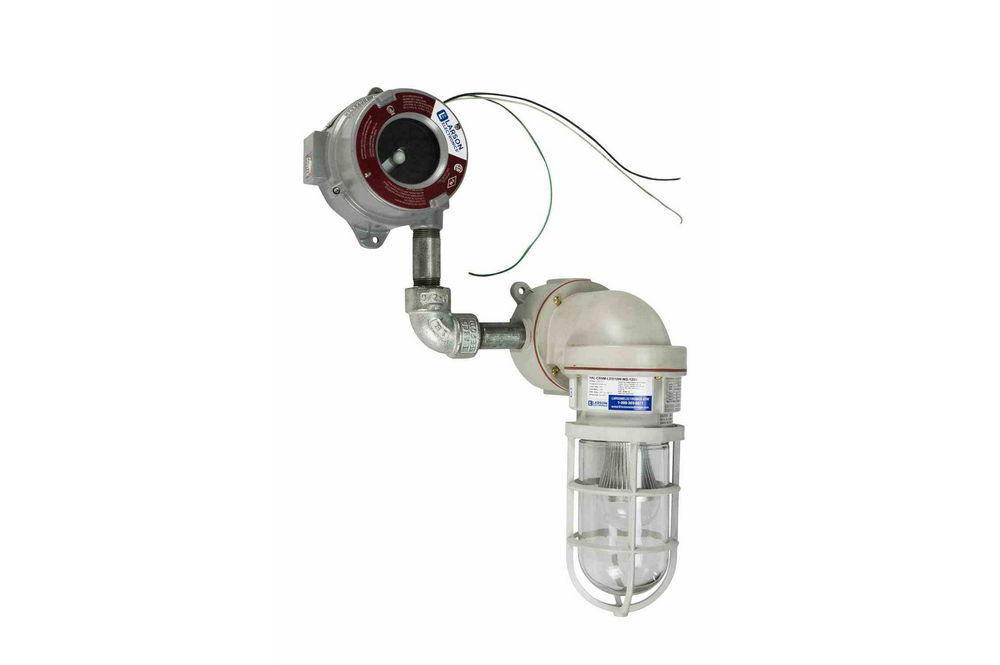

| Made in the USA The HAL-CRNM-LED10W-MS Chemical Resistant LED Light w/ Motion Sensor from Larson Electronics is designed for notification lighting in hazardous locations. This Class I/II, Division 2 rated unit is IP66 waterproof and is capable of detecting movement in a 15` x 15` target area when mounted from 16`. Operators may choose the preferred voltage, mounting system (ceiling or wall) and light color, when ordering the explosion proof luminary. The durable explosion proof LED light is highly suitable for industrial applications, hazardous work spaces and areas where gases and vapors may be present. The 10-watt LED lamp produces nearly 3 times the illumination of incandescent lamps, as measured in foot candles, at less than 1/10th of electricity usage without the associated heat. The housing on the LED luminary is constructed of corrosion and chemical resistant polycarbonate with Pyrex globe. The HAL-CRNM-LED10W-MS comes with a powerful motion detection feature that automates the light`s sensing capabilities. The sensor provides up to 15` by 15` coverage when mounted at a height of 16 feet. The detector component is constructed of copper-free, non-sparking aluminum with a glass window for motion detection. This sensor can be adjusted -90° to +30° vertically after installation. The explosion proof housing provides two 1/2" or 3/4" hub openings located on either side of the housing for running electrical conductors in a feed-through configuration. A bushing seal at each conductor opening prevents damage to wiring insulation. | |||||
|
|||||
| LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Applications: Notification lighting, warning system light, entry/exit notification light, security detection system, monitoring system in hallways, paths and rooms in hazardous locations. | |||||
|  |
