Class I Division 2 Pivoting LED Light - 4 Foot 2 Lamp - Emergency Backup - Failsafe LED Rig Light

LARSON ELECTRONICSSKU: PL3-HAL-EMG-48-2L-LED-BMSW
filler

Price:
Sale price$1,841.99

Description

Specifications / Additional Information
HAL-EMG-48-2L-LED-BMSW Hazardous Area Ratings
NRTL Listed for United States & Canada Class 1 Division 2, Groups A, B, C & D
Dimensions: 51.1"-L x 7.09"-W x 8.65"-H NRTL Certified to UL 844
Weight: 27.8 Lbs NRTL Certified to UL 1598A Marine Type
Total Watts: 48 watts Listed for Canada
Voltage: Universial 120-277V AC 50/60Hz T4 Temperature Rating
Low Voltage (Optional): 12-24V DC Meets USCG Specs
LED Lamp Life Expectancy: 50,000 Hours California Title 24 Compliant
Efficiency: 90 Lumens per Watt
Operating Temp Range: T4A rated -40°C to +50°C
Beam Angle: 150 degrees
Color Temp: 5300K- Color Rendering Index-75 Toll Free: 1-800-369-6671
Mounting: Back Mount Swivel Bracket Intl: 1-214-616-6180
Wiring Hub: 1/2" or 3/4" threaded Fax: 1-903-498-3364
Materials: Sheet aluminum housing, acrylic lens E-mail:
' Product Overview '

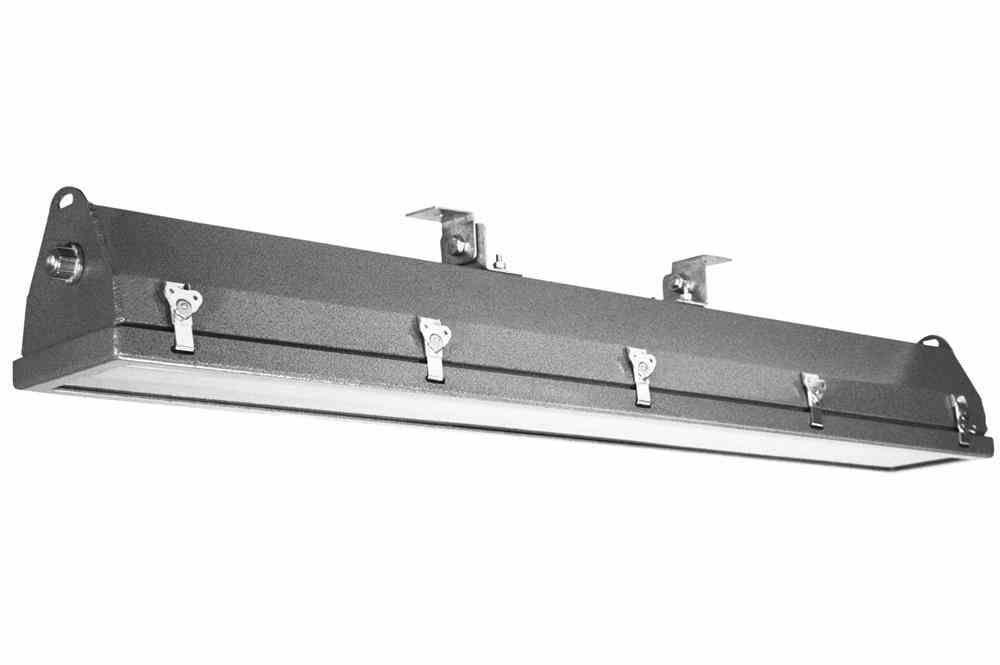

Made in the USA The Larson Electronics HAL-EMG-48-2L-LED-BMSW Hazardous Area LED Light Fixture with Emergency Failsafe Battery Backup is NRTL Listed for United States and Canada Class 1 Division 2 Groups A, B, C and D - NRTL Certified to UL 1598A listed, has a T4A temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. The HAL-EMG-48-2L-LED-BMSW fixture is a 4 foot long, 2 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area LED light that takes the reliability and efficiency of a fluorescent fixture and adds even longer lamp life and efficiency with high output LEDs. This fixture is T4A temperature rated and comes standard with our high power 24 watt LED lamps. The lamps are protected by a powder coated aluminum frame and shatter and heat resistant clear acrylic lens secured with eight zinc coated steel draw latches. The fixture is constructed of copper free sheet aluminum and powder coated. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture can be configured to run on 120 to 277VAC as well as 12-24VDC. This hazardous location LED fixture is Class 1 Division 2 rated, NRTL Certified to U.L. 844 and UL 1598A Marine Type approved for use marine environments, and meets USCG specs. The HAL-EMG-48-2L-LED-BMSW is weatherproof and provides operators in hazardous locations with a highly efficient, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge
This light works, mounts and is wired like our HAL-48-2L-LED-BMSW explosion proof light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run one lamp at the standard suggested 90 minutes after power is lost at 1350 lumens. The light recharges the battery once electrical power is restored. We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme 50,000 hours and helps this LED fixture maintain a T4A temperature rating. The solid state design of the included LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T8 bulbs. The 24 watt LED lamps produce more illumination than standard T8 bulbs, but draw only 3/4 of the current. The current generation of Larson Electronics LED T-series style bulbs produce 15% more light than standard T8 bulbs. This fixture is universial-voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, 277 Volts 60 HZ. We also make a 12-24V DC version for low voltage applications (-LV suffix). Our HAL-EMG-48-2L-LED-BMSW LED light fixture is NRTL Listed for U.S. and Canada.
Energy Consumption Comparison
T5HO T8 LED
Wattage 108 watts 64 watts 48 watts
Amp Draw @ 120V AC 0.9 amps 0.54 amps 0.4 amps
Amp Draw @ 277V AC 0.39 amps 0.24 amps 0.18 amps
Amp Draw @ 12V DC 9 amps 5.34 amps 4 amps
Amp Draw @ 24V DC 4.5 amps 2.67 amps 2 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Color Temperature 5000K / 4100K 4100K 5300K
Operation cost per year (8hs/day @ 11c/kWh) $34.69 $20.56 $15.42
Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two bolts on either side of the bracket. The bolts act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be pivoted by loosening the cap screws that hold the bracket to the mounting peg. This fixture allows 45 degrees of pivot from the 90 degree point. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Superior LED Benefits
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed streamlined ribbed corrosion-resistant, copper free sheet aluminum body for better hear dissipation and extended ballast life.  4. Aluminum lens frame for greater strength 5. Relamping done via 8 draw latches, which enable the operator to unlatch the lens and access the lamps. 6. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 7. 1/2" or 3/4" threaded access hole for wiring conduit.  8. Units can be wired end to end in series. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing.  11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
