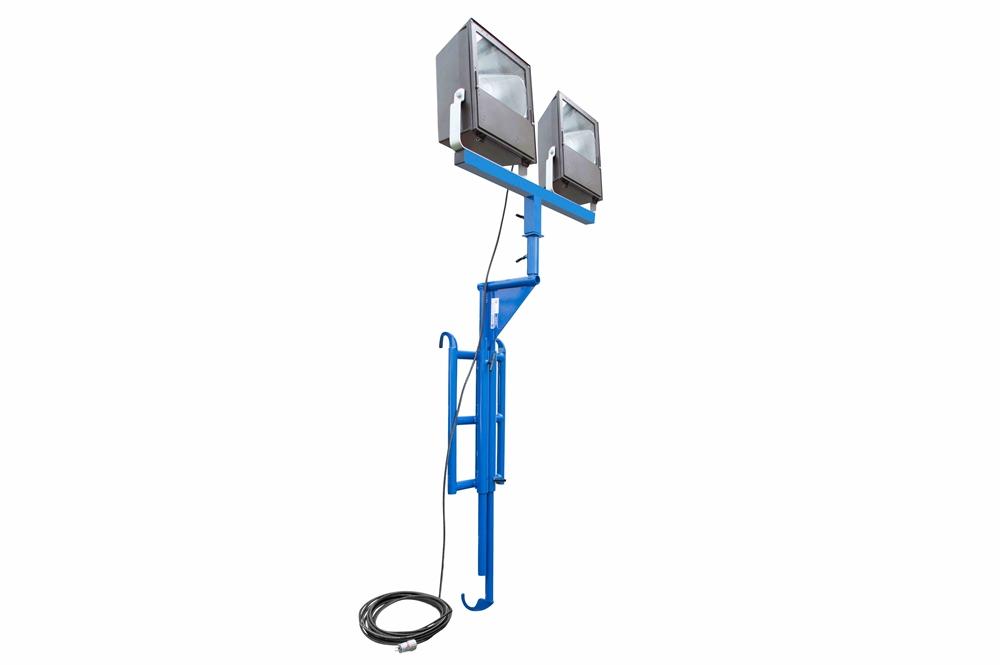

Hazardous Location Metal Halide Fixture - (2) 400W Lamps - Adjustable Aluminum Ladder/Rail Mount - 100' Cord

LARSON ELECTRONICSSKU: PL3-HAL-JH2X400-120
filler

Price:
Sale price$5,246.00

Description

Specifications / Additional Information
HAL-JH2X400-120 Hazloc HID Light Ratings/Approvals
Listing: United States, Canada Class I, Division 2 Groups A,B,C,D
Lamp Technology: Metal Halide Pulse Class I, Zone 2 Groups IIC,IIB,IIA
Lamp Qty: (2) Class II, Division 2 Groups F, G
Single-Lamp Dimensions: 20 1/8" x 17" x 11" Class III, Divisions 1 & 2
Bracket Dimensions: Adjustable from 26" to 43" Suitable for Wet Locations
Weight: - NEMA 4X
Voltage: 120V, 208V or 240V - 60Hz IP66
Total Watts: 800W
Single-lamp Watts: 400W
Total Lumens: 87,800 lms
Single-lamp Lumens: 43,900 lms
Luminous Efficacy: 90 Lm/W
Operating Cycles: 12,000 Hours
Color Temp: -
Color Rendering Index: -
Lamp Type: Mogul Base
Lamp Base: -
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Wide Flood Pattern
Power Efficiency: -
Power Factor: -
Amps: 6.66A @ 120V, 3.84A @ 208V, 3.33A @ 240V
Ambient Operating Temp Range: -
Operating Temp Rating: T3
Housing Material: Copper Free Aluminum
Housing Finish: Bronze Polyester Powder Paint
Lens Material: Impact Resistant Glass
Mounting: Adjustable Aluminum Ladder Bracket
Wiring: 100' 16/3 SOOW Cord w/ EXP Cord Cap
EXP Cord Cap Options: 5-15P, 5-20P or 6-20P
' Product Overview '
The HAL-JH2X400-120 Hazardous Location Metal Halide Fixture from Larson Electronics is a versatile lighting solution for Class I, Division 2 rated facilities. Consisting of two HID lamps and 100' of 16/3 SOOW line-in cord with an explosion proof cord cap, the unit produces 87,800 total lumens. This metal halide lighting system carries NEMA 4X and IP66 waterproof ratings, making it suitable for use in wet locations. The HAL-JH2X400-120 offers powerful illumination in Class I, Division 2 rated work sites and hazardous locations where ladders, scaffolding and railings provide opportunities for mounting. This HID lighting system consists of two, 400-watt metal halide lamps and provides 87,800 total lumens during use (at 43,900 lumens per lamp). Voltage options for this 800-watt model includes: 120V, 208V or 240V. The metal halide lamps produce powerful light output in a wide flood pattern. To ensure durability, the housing is weatherproof and constructed of copper-free cast aluminum featuring a hinged, removable front-access door with two captive closure screws for easy servicing. The optical assembly includes heat/impact-resistant tempered flat door glass with a cast aluminum frame. All hardware on this IP66 rated unit is non-sparking/corrosion resistant and the exterior features a dark bronze, polyester powder paint finish. The lamps are suitable for use in areas where flammable petrochemical vapors are sometimes present.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This hazardous location light is equipped with 100 feet of 16/3 chemical and abrasion resistant SOOW line-in cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** Voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. Mounting: The lamps are mounted to an aluminum bracket with an adjustable J-shaped top and bottom hooks that enable operators to securely mount the unit to any ladder, railing or scaffolding. Lamp adjustment is facilitated by an adjustable yolk that allows the operator to position the lamp's angle through a full 90 degrees of vertical adjustment. The aluminum rail/ladder bracket can also be adjusted from 26 inches to 43 inches. Suggested Applications: The HAL-JH2X400-120 is approved for use within environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications.
