Hazardous Area Locations Low Profile LED Light Fixture 174 Watts - 120-277 Volts AC - Class 1 Div 2

LARSON ELECTRONICSSKU: PL3-HAL-LED-174W
filler

Price:
Sale price$4,486.99

Description

Specifications / Additional Information
HAL-LED-174W Low Profile LED Ratings
Lamp Type: LED T4 Temperature Rating
Dimensions Lamp Only: 18.9"-H x 15.3"-W, 3.7"-D Class 1, Division 2, Groups A, B, C, D
Total Watts: 174W - 750W Equivalent Light Output Marine Outside Type (Salt Water)
Lumens: 17,400 Wet Locations
Voltage: Multi- 120-277 Vac, 50/60 Hz; 347-480 Vac, 50/60 Hz NEMA Type 4 and 3R
Amps: 120 Vac @ 1.06 Amps 277 Vac @ .46 Amps UL Standard: 1598, 1598A, 8750, 844
Mounting: - 3/4€ NPT - 1€ NPT - Depndant on mounting type- CSA Standard: C22.2 No. 250.0, C22.2 No. 137
Weight: 22lbs UL Listed
U.L. Listing: Explosion Proof
Temp Rating: T4 -40 °C to 55 °C
Light Configuration: Flood
Lamp Life: 50,000+ Hours
' Product Overview '

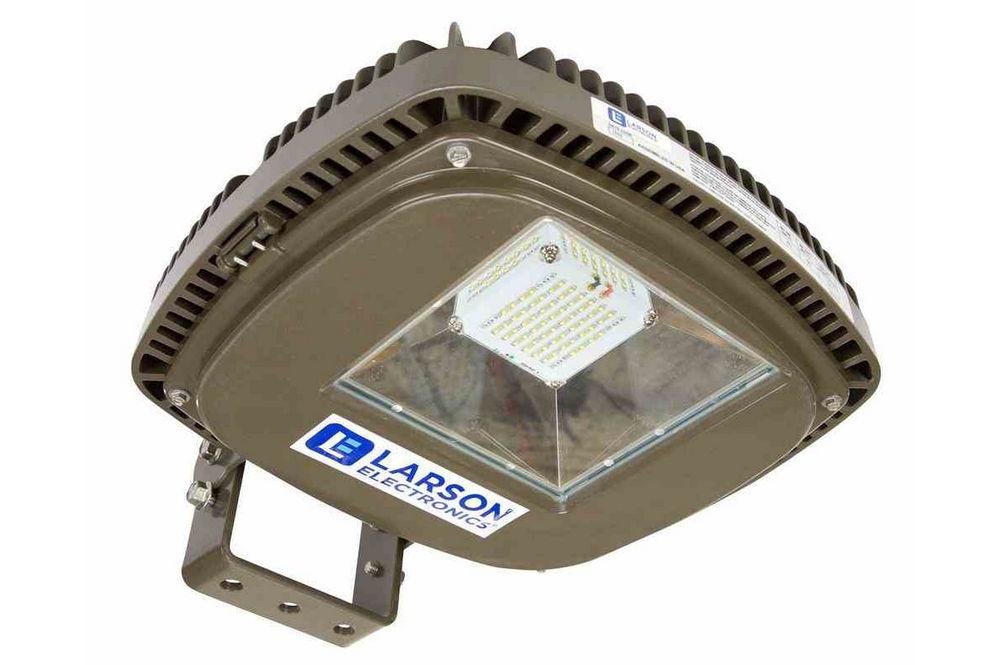

The Larson Electronics HAL-LED-174W hazardous area locations low profile high bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for areas where mounting space is at a premium. This Class 1 Division 2 hazardous location light fixture provides 174 Watts of light output while drawing 1.45 amps at 120 volts. The aluminum alloy body is epoxy coated for added durability and an attractive aesthetic appearance. This unit is specially designed for high durability and to efficiently dissipate heat for prolonged LED life and safer operation in hazardous locations. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
This light is universal voltage and can be operated on 100-277 VAC, 50/60Hz without any need for a special ballast or wiring. The non sparking aluminum body and LED lamp design give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat, which increases the efficiency and lifespan of the LED luminaries. This hazardous location LED fixture is constructed of aluminum and all hardware is zinc plated steel for corrosion resistance and high durability. The LED assembly is protected by an impact resistant polycarbonate lens cover and the fixture housing is finished in an electrostatically applied expoxy paint coating for uniform protection. This hazardous area LED fixture is suitable for use in wet areas and marine outdoor applications. It is also rated for simultaneous exposure, meaning it is approved for locations that may present two distinct hazardous ratings. (Class I, Division 2)
Click Photo to Enlarge Click Photo to Enlarge
Suggested applications include manufacturing and industrial operations, docks and marine environments, offshore oil rigs, chemical plants and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. LEDs provide extrme long life. 6. Powder coated aluminum fixture body. 7. Multiple mounting options including Pendant, Wall, Ceiling, 90 degree stanchion, 25 degree stanchion 8. Low profile - Light weight 1. 50,000 hour LED lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
